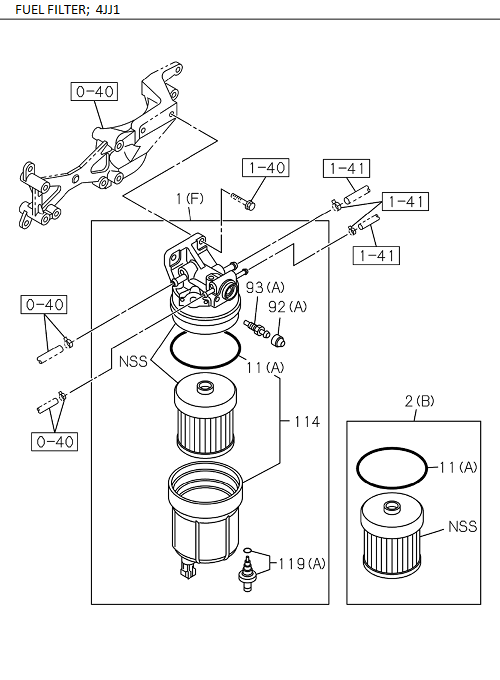

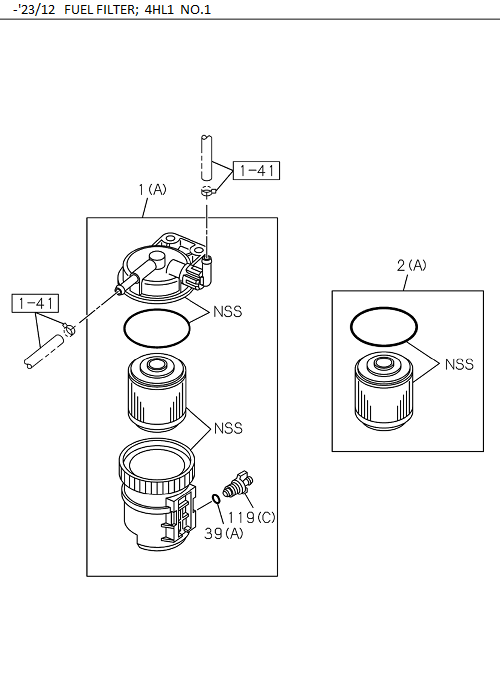

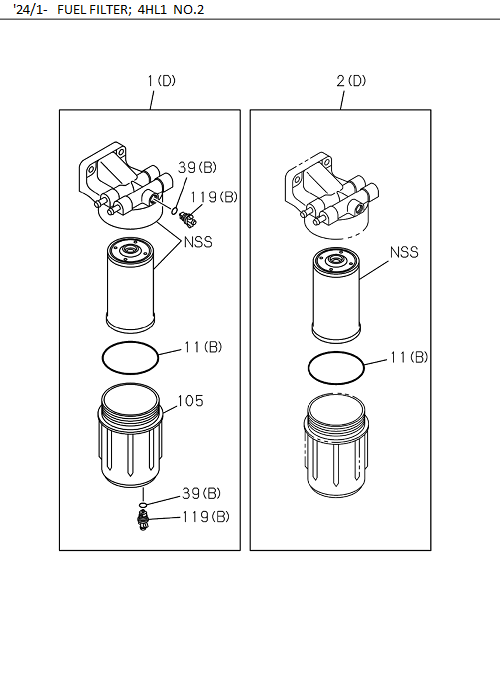

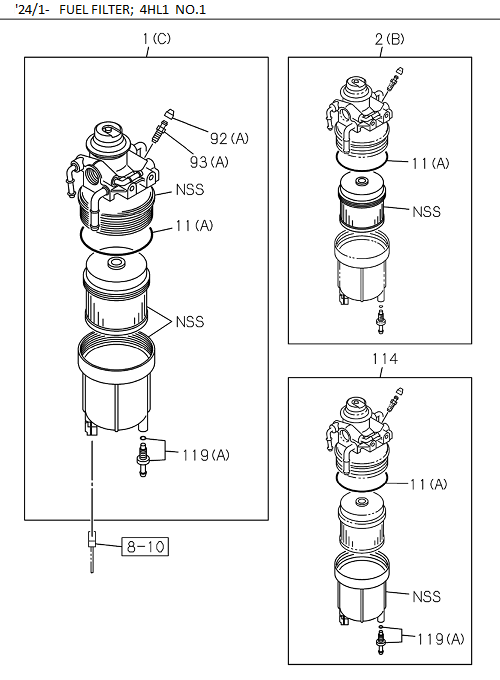

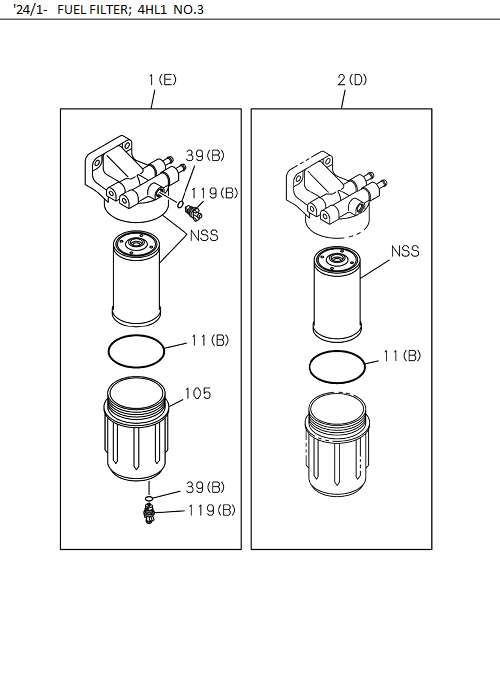

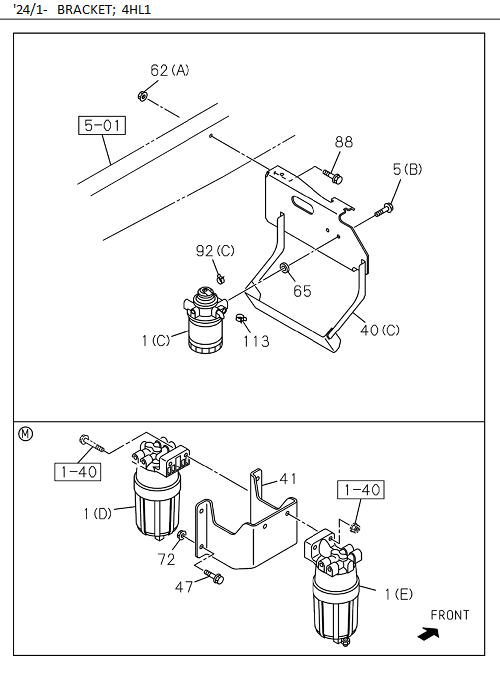

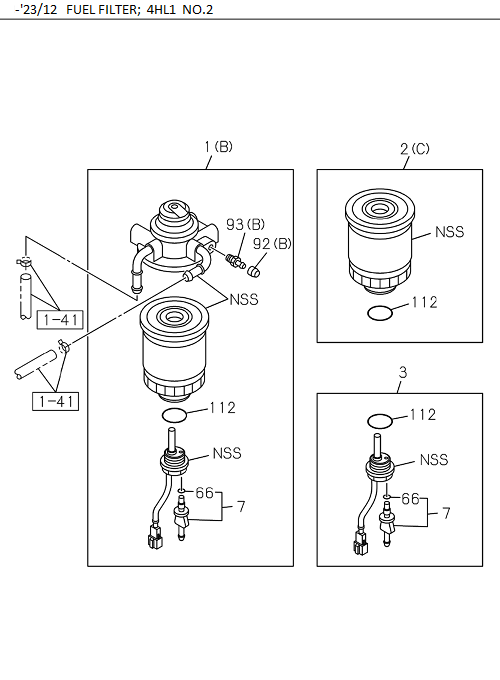

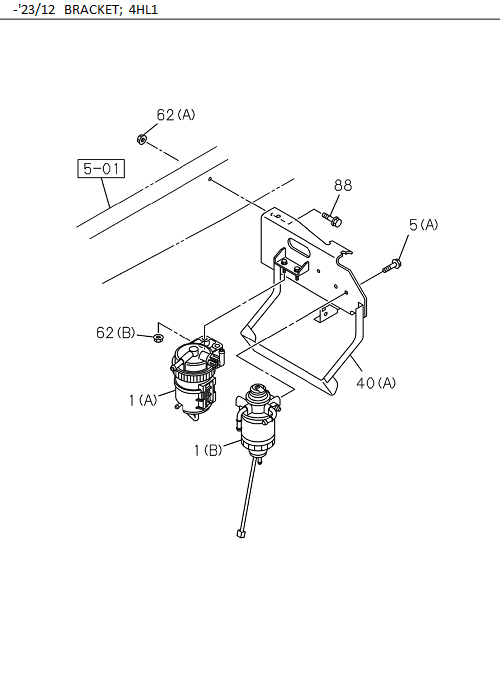

0-41 | FUEL FILTER AND BRACKET
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-97653 013-A | ELEMENT KIT; FUEL FILTER | 2 | 2406- | NMR81 | (IADG) (D) PRE | ||
| 011 | I8-98203 600-0 | GASKET; CASE TO BODY,FUEL FILTER | 1 | 2203- | ALL | (A) | ||
| 002 | I8-98159 693-0 | ELEMENT KIT; FUEL FILTER | 1 | 2203-2405 | NMR81 | (A) MAIN | ||
| 092 | I8-98034 314-0 | CAP; FUEL FILTER | 1 | 2203- | ALL | (A) | ||
| 040 | I8-98323 447-A | BRACKET; FUEL FILTER | 1 | 2203- | NLR85 | (B) | ||
| 002 | I8-98159 693-A | ELEMENT KIT; FUEL FILTER | 1 | 2203-2405 | NMR81 | (IADG) (A) MAIN | ||
| 040 | I7-55226 882-A | BRACKET; FUEL FILTER | 1 | 2406- | NMR81 | (C) | ||
| 041 | I7-55226 883-A | BRACKET; FUEL FILTER | 1 | 2406- | NMR81 | |||
| 114 | I8-98039 987-1 | CASE ASM; FUEL FILTER | 1 | 2203- | NLR85 | |||
| 002 | I8-97653 013-0 | ELEMENT KIT; FUEL FILTER | 2 | 2406- | NMR81 | (D) PRE | ||
| 001 | I8-97678 001-0 | FILTER ASM; FUEL | 1 | 2406- | NMR81 | (E) PRE | ||
| 002 | I8-98162 897-A | ELEMENT KIT; FUEL FILTER | 1 | 2406- | NMR81 | (IADG) (B) MAIN | ||
| 002 | I8-98037 481-A | ELEMENT KIT; FUEL FILTER | 1 | 2203-2405 | NMR81 | (IADG) (C) PRE | ||
| 002 | I8-97542 540-0 | ELEMENT KIT; FUEL FILTER | 1 | 2406- | NMR81 | (B) MAIN | ||
| 001 | I8-97651 751-0 | FILTER ASM; FUEL | 1 | 2406- | NMR81 | (D) PRE | ||
| 112 | I1-09623 649-0 | GASKET; SENSOR TO CASE | 1 | 2203- | NMR81 | |||
| 072 | I0-91180 110-0 | NUT; BRKT,FUEL FILTER | 4 | 2406- | NMR81 | M10 FLANGE | ||
| 119 | I8-98325 750-0 | PLUG; DRAIN,FUEL FILTER | 4 | 2406- | NMR81 | (B) | ||
| 001 | I8-97504 758-0 | FILTER ASM; FUEL | 1 | 2203-2405 | NMR81 | (B) PRE | ||
| 065 | I5-13642 077-A | SPACER; FUEL FILTER | 2 | 2406- | NMR81 | ID=8.5 L=10 | ||
| 001 | I8-98184 212-1 | FILTER ASM; FUEL | 1 | 2203-2405 | NMR81 | (A) MAIN | ||
| 062 | I0-91180 110-0 | NUT; FUEL FILTER | 2 | 2203- | ALL | (A) M10 FLANGE | ||
| 002 | I8-98037 481-0 | ELEMENT KIT; FUEL FILTER | 1 | 2203-2405 | NMR81 | (C) PRE | ||
| 066 | I8-98004 898-0 | GASKET; PLUG,FUEL FILTER | 1 | 2203- | NMR81 | |||
| 005 | I7-04508 025-A | BOLT; FUEL FILTER | 2 | 2203- | ALL | (B) M8X20 FLANGE | ||
| 011 | I8-97653 014-0 | GASKET; CASE TO BODY,FUEL FILTER | 2 | 2406- | NMR81 | (B) | ||
| 093 | I8-97172 546-1 | CONNECTOR; FUEL FILTER | 1 | 2203-2405 | NMR81 | (B) | ||
| 119 | I8-98037 095-0 | PLUG; DRAIN,FUEL FILTER | 1 | 2203- | ALL | (A) | ||
| 040 | I8-98323 451-0 | BRACKET; FUEL FILTER | 1 | 2203-2405 | NMR81 | (A) | ||
| 062 | I7-05108 010-A | NUT; FUEL FILTER | 2 | 2203- | NMR81 | (B) M8 FLANGE | ||
| 105 | I8-98489 524-0 | CASE; FUEL FILTER | 2 | 2406- | NMR81 | |||
| 092 | I8-97172 548-0 | CAP; FUEL FILTER | 1 | 2203-2405 | NMR81 | (B) | ||
| 088 | I0-28651 030-0 | BOLT; BRKT,FUEL FILTER | 2 | 2203- | ALL | M10X30 FLANGE | ||
| 047 | I0-28651 035-0 | BOLT; BRKT,FUEL FILTER | 4 | 2406- | NMR81 | M10X35 | ||
| 092 | I7-55226 881-A | CAP; FUEL FILTER | 1 | 2406- | NMR81 | (C) | ||
| 039 | I8-98188 943-0 | GASKET; DRAIN PLUG | 1 | 2203-2405 | NMR81 | (A) | ||
| 113 | I8-97794 992-0 | CLAMP; FUEL FILTER | 2 | 2406- | NMR81 | ID=13 | ||
| 003 | I8-98244 942-0 | SENSOR ASM; FUEL FILTER | 1 | 2203- | NMR81 | |||
| 039 | I8-98325 749-0 | GASKET; DRAIN PLUG | 4 | 2406- | NMR81 | (B) | ||
| 002 | I8-97542 540-0 | ELEMENT KIT; FUEL FILTER | 1 | 2203- | NLR85 | (B) MAIN | ||
| 007 | I8-98004 899-0 | PLUG; SENSOR,FUEL FILTER | 1 | 2203- | NMR81 | |||
| 001 | I8-97542 536-0 | FILTER ASM; FUEL | 1 | 2406- | NMR81 | (C) MAIN | ||
| 005 | I0-28650 835-0 | BOLT; FUEL FILTER | 2 | 2406- | NMR81 | (A) M8X35 FLANGE | ||
| 119 | I8-98188 941-0 | PLUG; DRAIN,FUEL FILTER | 1 | 2203-2405 | NMR81 | (C) | ||
| 001 | I8-97542 505-0 | FILTER ASM; FUEL | 1 | 2203- | NLR85 | (F) MAIN | ||
| 002 | I8-98162 897-A | ELEMENT KIT; FUEL FILTER | 1 | 2203- | NLR85 | (IADG) (B) MAIN | ||
| 093 | I8-98034 312-0 | CONNECTOR; FUEL FILTER | 1 | 2203- | ALL | (A) M8X10 |
