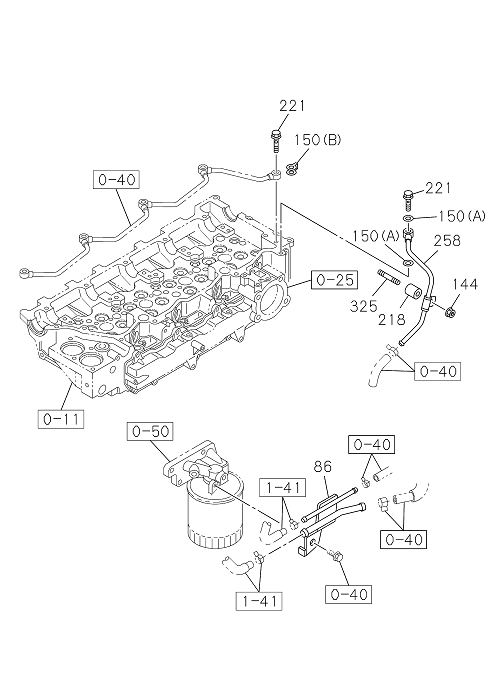

0-42 | FUEL PUMP AND PIPE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 258 | I8-97648 720-A | PIPE ASM; FUEL,LEAK OFF | 1 | 2203- | NMR81 | |||
| 086 | I8-98320 080-0 | PIPE; FUEL,PUMP TO CARBURETOR | 1 | 2203- | NMR81 | |||
| 150 | I1-09630 083-0 | GASKET; FUEL PIPE | 2 | 2203- | NMR81 | (A) ID=10.2 OD=15.2 | ||
| 221 | I8-94396 711-0 | BOLT; FUEL PIPE | 2 | 2203- | NMR81 | M10X21 EYE-BOLT | ||
| 218 | I8-94371 715-1 | PIECE; DISTANCE | 1 | 2203- | NMR81 | |||
| 150 | I8-98079 755-0 | GASKET; FUEL PIPE | 1 | 2203- | NMR81 | (B) ID=10.2 OD=17 | ||
| 144 | I0-91180 106-0 | NUT; CLIP | 1 | 2203- | ALL | M6 FLANGE | ||
| 325 | I0-41010 630-0 | STUD; CLIP | 1 | 2203- | ALL | M6X30 L=38 |
