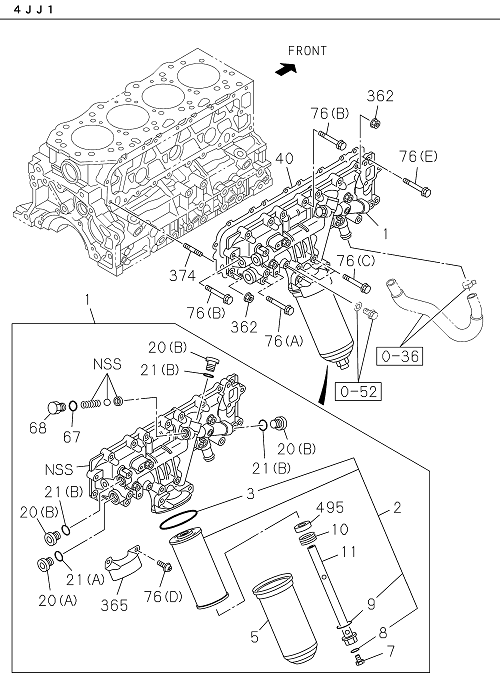

0-50 | OIL COOLER AND OIL FILTER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I8-98018 862-0 | CASE; OIL FILTER | 1 | 2203- | NLR85 | |||
| 365 | I8-98133 061-0 | PROTECTOR; OIL FILTER | 1 | 2203- | NLR85 | |||
| 076 | I0-28050 890-0 | BOLT; OIL FILTER | 2 | 2203- | NLR85 | (C) M8X90 FLANGE | ||
| 469 | I8-94399 339-0 | GASKET; OIL COOLER TO C/BL | 1 | 2203- | NMR81 | (B) ID=9.8 | ||
| 102 | I8-97384 045-6 | COOLER ASM; OIL | 1 | 2203- | NMR81 | |||
| 021 | I8-98133 979-0 | GASKET; PLUG | 3 | 2203- | NLR85 | (B) | ||
| 076 | I0-28050 870-0 | BOLT; OIL FILTER | 2 | 2203- | NLR85 | (A) M8X70 FLANGE | ||
| 010 | I8-98018 850-0 | SPRING; ELEMENT | 1 | 2203- | NLR85 | |||
| 002 | I8-98328 207-A | ELEMENT; OIL FILTER | 1 | 2203- | NMR81 | (IADG) | ||
| 469 | I8-98045 447-A | GASKET; OIL COOLER TO C/BL | 1 | 2203- | NMR81 | (C) | ||
| 012 | I8-97013 566-2 | VALVE ASM; BYPASS | 1 | 2203- | NMR81 | |||
| 068 | I9-13263 010-0 | PLUG; VLV | 1 | 2203- | NLR85 | |||
| 009 | I1-09623 500-0 | GASKET; CENTER BOLT | 1 | 2203- | NLR85 | |||
| 001 | I8-98270 497-0 | FILTER & COOLER ASM; OIL | 1 | 2203- | NLR85 | |||
| 076 | I0-28050 820-0 | BOLT; OIL FILTER | 1 | 2203- | NLR85 | (E) M8X20 FLANGE | ||
| 008 | I1-09623 055-0 | GASKET; PLUG | 1 | 2203- | NLR85 | ID=9.8 | ||
| 496 | I8-98328 485-0 | FILTER ASM; OIL | 1 | 2203- | NMR81 | |||
| 067 | I8-98133 059-0 | GASKET; VLV | 1 | 2203- | NLR85 | |||
| 374 | I0-41010 820-0 | STUD; OIL FILTER | 2 | 2203- | NLR85 | M8X20 L=32 | ||
| 105 | I8-97016 314-0 | STUD; OIL COOLER | 3 | 2203- | NMR81 | M8X52 L=63 | ||
| 272 | I8-94399 399-0 | GASKET; OIL FILTER TO C/BL | 2 | 2203- | NMR81 | ID=22.1 | ||
| 265 | I8-98328 486-0 | BODY; OIL FILTER | 1 | 2203- | NMR81 | |||
| 021 | I8-98133 060-0 | GASKET; PLUG | 1 | 2203- | NLR85 | (A) | ||
| 020 | I8-98133 978-0 | PLUG; COOLER BODY | 3 | 2203- | NLR85 | (B) | ||
| 020 | I8-94396 753-0 | PLUG; COOLER BODY | 1 | 2203- | NLR85 | (A) | ||
| 111 | I8-97334 101-1 | CORE; OIL COOLER | 1 | 2203- | NMR81 | |||
| 444 | I8-97384 130-0 | GASKET; ELEMENT TO BODY | 2 | 2203- | NMR81 | |||
| 103 | I0-28050 835-0 | BOLT; OIL COOLER | 7 | 2203- | ALL | (B) M8X35 FLANGE | ||
| 040 | I8-98074 746-0 | GASKET; COVER TO OIL COOLER | 1 | 2203- | NLR85 | |||
| 495 | I8-98018 853-0 | PLATE; OIL FILTER | 1 | 2203- | NLR85 | |||
| 002 | I8-98018 858-0 | ELEMENT; OIL FILTER | 1 | 2203- | NLR85 | |||
| 076 | I0-28650 835-0 | BOLT; OIL FILTER | 12 | 2203- | NLR85 | (B) M8X35 FLANGE | ||
| 273 | I0-28751 030-0 | BOLT; OIL FILTER | 2 | 2203- | NMR81 | M10X30 FLANGE | ||
| 002 | I8-98018 858-A | ELEMENT; OIL FILTER | 1 | 2203- | NLR85 | (IADG) | ||
| 103 | I0-28050 820-0 | BOLT; OIL COOLER | 7 | 2203- | ALL | (A) M8X20 FLANGE | ||
| 379 | I7-05108 010-A | NUT; OIL COOLER | 3 | 2203- | ALL | M8 FLANGE | ||
| 362 | I0-91180 110-0 | NUT; OIL FILTER | 2 | 2203- | ALL | M10 FLANGE | ||
| 394 | I0-49241 025-0 | STUD; OIL FILTER | 2 | 2203- | NMR81 | M10X25 L=48.5 | ||
| 007 | I8-98018 846-0 | PLUG; CENTER BOLT | 1 | 2203- | NLR85 | |||
| 011 | I8-98018 847-0 | BOLT; CENTER | 1 | 2203- | NLR85 | |||
| 003 | I8-98024 708-1 | GASKET | 1 | 2203- | NLR85 | |||
| 469 | I8-94338 878-A | GASKET; OIL COOLER TO C/BL | 1 | 2203- | NMR81 | (A) | ||
| 002 | I8-98328 207-0 | ELEMENT; OIL FILTER | 1 | 2203- | NMR81 | |||
| 089 | I0-28050 816-0 | BOLT; ELEMENT TO CASE | 4 | 2203- | ALL | M8X16 FLANGE | ||
| 362 | I0-91180 208-0 | NUT; OIL FILTER | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 090 | I1-21729 043-0 | GASKET; BOLT,OIL COOLER | 4 | 2203- | NMR81 | |||
| 076 | I8-98041 912-0 | BOLT; OIL FILTER | 2 | 2203- | NLR85 | (D) M6 |
