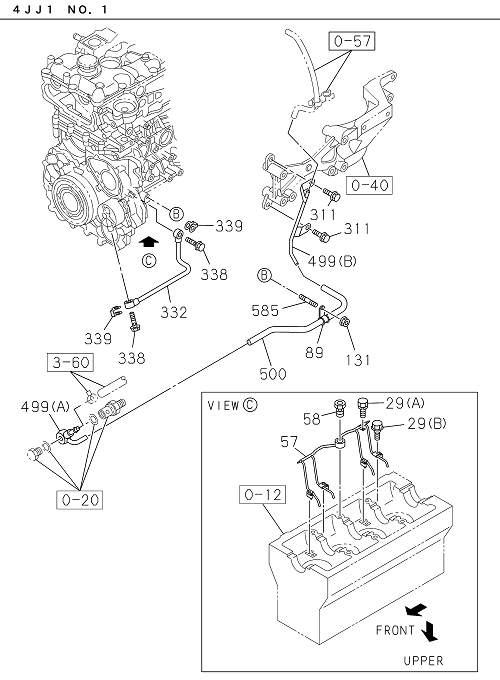

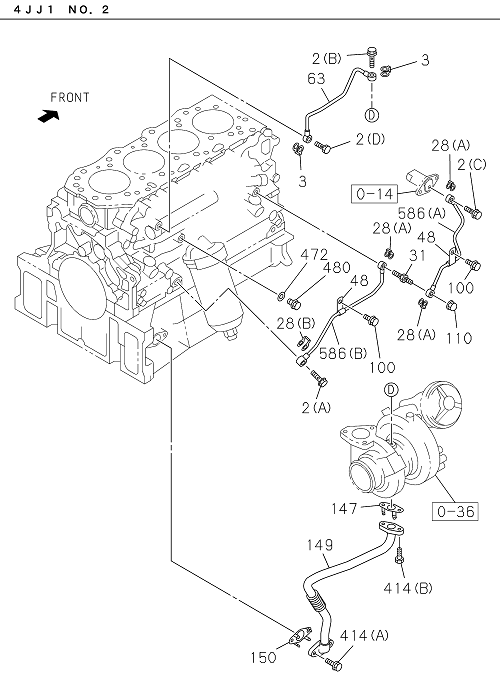

0-52 | OIL AND VACUUM PIPING; ENGINE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I8-98136 142-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 2203- | NLR85 | ID=10.2 OD=16 | ||
| 086 | I8-94455 311-1 | PIPE; OIL,VAC PUMP RETURN | 1 | 2203- | NMR81 | |||
| 157 | I8-97648 420-A | BRACKET; OIL PIPE | 1 | 2203- | NMR81 | (A) | ||
| 414 | I0-28050 820-0 | BOLT; OIL PIPE | 2 | 2203- | NLR85 | (A) M8X20 FLANGE | ||
| 500 | I8-97369 587-1 | HOSE; VACUUM | 1 | 2203- | NLR85 | |||
| 063 | I8-97559 830-A | PIPE; OIL,TURBOCHARGER FEED | 1 | 2203- | NMR81 | |||
| 339 | I8-98065 992-0 | GASKET; OIL PIPE | 2 | 2203- | NLR85 | ID=8.3 OD=15.0 | ||
| 046 | I1-09675 086-0 | BOLT; JOINT,OIL FEED PIPE,VAC PUMP | 1 | 2203- | ALL | (A) M14X27 EYE-BOLT | ||
| 028 | I8-98113 762-0 | GASKET; OIL PIPE | 1 | 2203- | NLR85 | (B) ID=14.2 OD=20 | ||
| 028 | I8-98340 723-0 | GASKET; OIL PIPE | 3 | 2203- | NLR85 | (A) ID=8.2 OD=13.2 | ||
| 499 | I8-97381 661-3 | PIPE; VACUUM | 1 | 2203- | NLR85 | (A) | ||
| 058 | I8-98285 334-0 | VALVE; RELIEF,OIL JET,PISTON COOLING | 1 | 2203- | NLR85 | |||
| 304 | I0-28050 820-0 | BOLT; BRKT,OIL PIPE | 2 | 2203- | ALL | M8X20 FLANGE | ||
| 150 | I8-98201 788-1 | GASKET; OIL PIPE TO C/BL | 1 | 2203- | NLR85 | |||
| 100 | I0-28050 812-A | BOLT; CLIP | 2 | 2203- | NLR85 | M8X12 FLANGE | ||
| 586 | I8-98130 165-0 | PIPE; OIL,TENSIONER | 1 | 2203- | NLR85 | (B) | ||
| 029 | I0-28050 810-0 | BOLT; OIL PIPE,OIL JET | 1 | 2203- | NLR85 | (A) M8X10 FLANGE | ||
| 068 | I8-94443 535-0 | BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE | 1 | 2203- | ALL | M10X28 EYE-BOLT | ||
| 048 | I8-98121 233-0 | CLIP; OIL PIPE | 2 | 2203- | NLR85 | ID=5 L=28 | ||
| 027 | I0-28050 816-0 | BOLT; OIL PIPE FIX | 2 | 2203- | ALL | M8X16 FLANGE | ||
| 332 | I8-98201 785-0 | PIPE; OIL,C/BL TO VAC PUMP | 1 | 2203- | NLR85 | |||
| 046 | I8-97372 239-0 | BOLT; JOINT,OIL FEED PIPE,VAC PUMP | 1 | 2203- | NMR81 | (B) M10X21 EYE-BOLT | ||
| 063 | I8-97381 488-0 | PIPE; OIL,TURBOCHARGER FEED | 1 | 2203- | NLR85 | |||
| 311 | I0-28050 612-0 | BOLT; PIPE FIX | 2 | 2203- | NLR85 | M6X12 FLANGE | ||
| 002 | I8-94443 535-0 | BOLT; EYE,OIL PIPE | 1 | 2203- | NLR85 | (B) M10X28 EYE-BOLT | ||
| 338 | I5-09675 018-1 | BOLT; JOINT,OIL PIPE | 2 | 2203- | NLR85 | M8X20 EYE-BOLT | ||
| 340 | I8-94339 073-3 | HOSE; VAC PUMP,RETURN | 1 | 2203- | NMR81 | |||
| 202 | I8-98251 345-0 | GASKET; OIL PIPE | 2 | 2203- | NMR81 | (A) ID=14.2 OD=19.2 | ||
| 499 | I8-97385 434-1 | PIPE; VACUUM | 1 | 2203- | NLR85 | (B) | ||
| 157 | I8-97648 713-A | BRACKET; OIL PIPE | 1 | 2203- | NMR81 | (B) | ||
| 149 | I8-98320 802-0 | PIPE; OIL RETURN,TURBOCHARGER | 1 | 2203- | NLR85 | |||
| 480 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 2203- | NLR85 | M10X10 | ||
| 002 | I1-09675 086-0 | BOLT; EYE,OIL PIPE | 1 | 2203- | NLR85 | (A) M14X27 EYE-BOLT | ||
| 472 | I9-09571 410-0 | GASKET; PLUG | 1 | 2203- | NLR85 | ID=10.2 OD=16.0 | ||
| 340 | I6-94339 073-3 | HOSE; VAC PUMP,RETURN | 1 | 2203- | NMR81 | (IADG) | ||
| 029 | I8-97117 298-1 | BOLT; OIL PIPE,OIL JET | 4 | 2203- | NLR85 | (B) M6X20 FLANGE | ||
| 083 | I8-97228 671-1 | PIPE; OIL,C/BL TO VAC PUMP | 1 | 2203- | NMR81 | |||
| 057 | I8-97312 132-3 | PIPE; OIL,OIL JET | 1 | 2203- | NLR85 | |||
| 089 | I0-95220 835-0 | CLIP; VAC HOSE | 1 | 2203- | NLR85 | ID=8 | ||
| 031 | I8-98130 410-1 | NIPPLE; OIL PIPE | 1 | 2203- | NLR85 | |||
| 131 | I0-91180 208-0 | NUT; UNION | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 003 | I1-09630 083-0 | GASKET; EYE BOLT,OIL PIPE | 3 | 2203- | NMR81 | ID=10.2 OD=15.2 | ||
| 002 | I9-09906 205-1 | BOLT; EYE,OIL PIPE | 1 | 2203- | NLR85 | (D) M10X24 EYE-BOLT | ||
| 147 | I8-98029 475-0 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 2203- | NLR85 | ID=16 | ||
| 089 | I8-94122 679-0 | CLIP; VAC HOSE | 3 | 2203- | NMR81 | ID=17.1 | ||
| 110 | I8-98251 964-0 | NUT; CAP OIL PIPE | 1 | 2203- | NLR85 | M8 CAP NUT FLANGE | ||
| 085 | I8-98037 823-0 | BOLT; EYE,OIL PIPE FIX | 1 | 2203- | NMR81 | M10X28 EYE-BOLT | ||
| 040 | I0-28050 816-0 | BOLT; OIL PIPE | 1 | 2203- | ALL | M8X16 FLANGE | ||
| 028 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 2203- | NMR81 | (C) ID=10.2 OD=15.2 | ||
| 202 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 2203- | NMR81 | (B) ID=10.2 OD=15.2 | ||
| 053 | I7-05108 010-A | NUT; OIL PIPE | 3 | 2203- | ALL | M8 FLANGE | ||
| 585 | I0-41010 818-0 | STUD; CLIP | 1 | 2203- | NLR85 | M8X18 L=30 | ||
| 002 | I8-98108 689-0 | BOLT; EYE,OIL PIPE | 1 | 2203- | NLR85 | (C) M8X23 EYE-BOLT | ||
| 586 | I8-98074 743-1 | PIPE; OIL,TENSIONER | 1 | 2203- | NLR85 | (A) | ||
| 414 | I0-58330 616-0 | BOLT; OIL PIPE | 2 | 2203- | NLR85 | (B) M6X16 HEX SOCKET |
