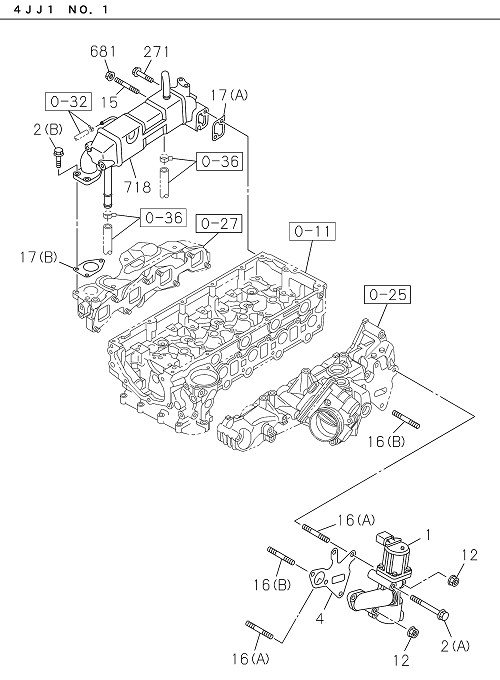

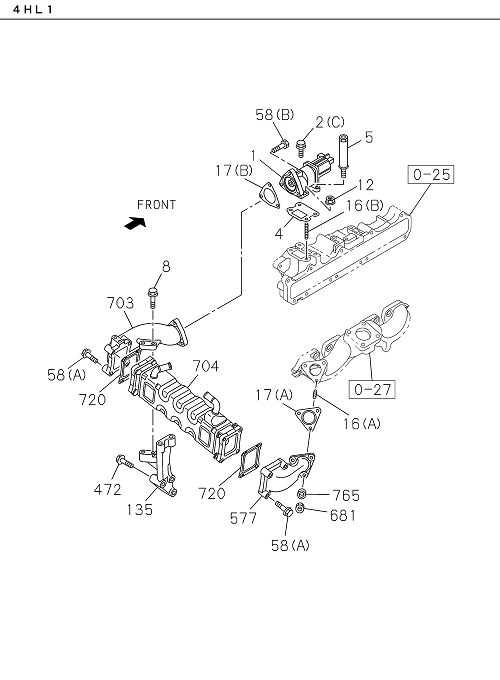

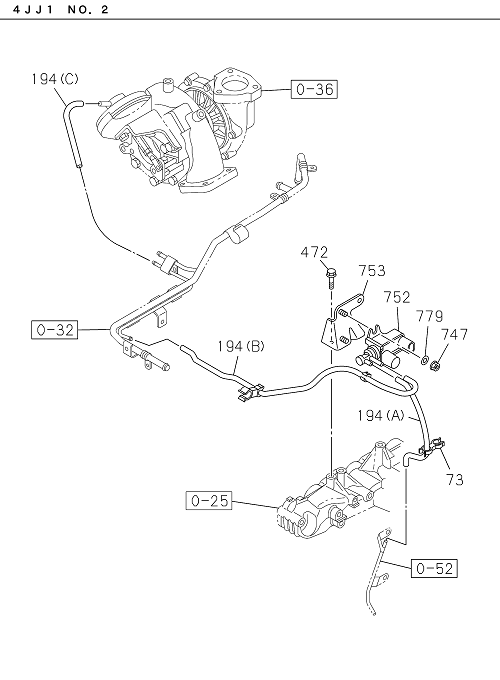

0-57 | EMISSION PIPING
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 135 | I8-97648 406-A | BRACKET; EGR | 1 | 2203- | NMR81 | |||
| 681 | I0-91180 208-0 | NUT; EGR PIPE | 3 | 2203- | ALL | M8 FLANGE | ||
| 017 | I8-98228 303-0 | GASKET; EGR PIPE | 1 | 2203- | NLR85 | (A) | ||
| 271 | I0-28050 850-0 | BOLT; BRKT | 1 | 2203- | NLR85 | M8X50 FLANGE | ||
| 194 | I8-98107 557-0 | HOSE; VAC | 1 | 2203- | NLR85 | (C) | ||
| 753 | I8-97381 571-1 | BRACKET; VALVE | 1 | 2203- | NLR85 | |||
| 779 | I1-14319 034-0 | WASHER; VALVE | 2 | 2203- | NLR85 | ID=8.4 OD=18 | ||
| 016 | I0-40210 850-0 | STUD; EGR VLV | 2 | 2203- | NLR85 | (A) M8X50 L=62 | ||
| 073 | I1-09709 182-0 | CLIP; VAC HOSE | 1 | 2203- | NLR85 | ID=11.8 & 7.5 | ||
| 472 | I0-28161 260-0 | BOLT; BRKT | 3 | 2203- | ALL | M12X60 FLANGE | ||
| 720 | I8-97648 403-A | GASKET; COOLER | 2 | 2203- | NMR81 | |||
| 005 | I8-97377 804-0 | ADAPTER ASM | 1 | 2203- | NMR81 | |||
| 058 | I8-98065 481-0 | BOLT; PIPE | 8 | 2203- | NMR81 | (A) M8X43 HEX SOCKET | ||
| 004 | I8-97306 040-0 | GASKET; EGR VLV | 1 | 2203- | NMR81 | |||
| 194 | I0-04420 270-0 | HOSE; VAC | 1 | 2203- | NLR85 | (A) | ||
| 001 | I8-98238 259-2 | VALVE; EGR | 1 | 2203- | NLR85 | |||
| 017 | I8-98036 507-0 | GASKET; EGR PIPE | 1 | 2203- | NMR81 | (B) | ||
| 704 | I8-97648 404-0 | COOLER ASM; EGR | 1 | 2203- | NMR81 | |||
| 703 | I8-97648 408-A | DUCT; EGR | 1 | 2203- | NMR81 | |||
| 002 | I0-28650 825-0 | BOLT; EGR VLV | 1 | 2203- | ALL | (C) M8X25 FLANGE | ||
| 017 | I8-97648 402-0 | GASKET; EGR PIPE | 1 | 2203- | NMR81 | (A) | ||
| 747 | I7-05108 010-A | NUT; VAC REG VALVE | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 001 | I8-97554 329-0 | VALVE; EGR | 1 | 2203- | NMR81 | |||
| 752 | I8-98116 259-0 | VALVE; EVRV | 1 | 2203- | NLR85 | |||
| 016 | I0-40210 825-0 | STUD; EGR VLV | 2 | 2203- | NLR85 | (B) M8X25 L=41 | ||
| 002 | I0-28050 880-0 | BOLT; EGR VLV | 1 | 2203- | NLR85 | (A) M8X80 FLANGE | ||
| 002 | I8-97378 077-0 | BOLT; EGR VLV | 3 | 2203- | NLR85 | (B) M8X23 FLANGE | ||
| 577 | I8-97648 407-A | PIPE; AIR,EGR | 1 | 2203- | NMR81 | |||
| 472 | I0-28050 816-0 | BOLT; BRKT | 2 | 2203- | NLR85 | M8X16 FLANGE | ||
| 016 | I0-41010 820-0 | STUD; EGR VLV | 2 | 2203- | ALL | (B) M8X20 L=32 | ||
| 012 | I7-05108 010-A | NUT; EGR VLV | 2 | 2203- | ALL | M8 FLANGE | ||
| 008 | I0-28151 030-0 | BOLT; EGR ADAPTER | 2 | 2203- | ALL | M10X30 FLANGE | ||
| 765 | I1-14379 101-0 | SPACER; EGR PIPE | 3 | 2203- | NMR81 | |||
| 012 | I0-91180 208-0 | NUT; EGR VLV | 4 | 2203- | NLR85 | M8 FLANGE | ||
| 017 | I8-98063 284-1 | GASKET; EGR PIPE | 1 | 2203- | NLR85 | (B) | ||
| 004 | I8-98094 528-2 | GASKET; EGR VLV | 1 | 2203- | NLR85 | |||
| 718 | I8-98181 205-1 | COOLER; EGR | 1 | 2203- | NLR85 | |||
| 015 | I0-40210 860-0 | STUD; EGR PIPE | 1 | 2203- | NLR85 | M8X60 L=76 | ||
| 194 | I8-98328 293-0 | HOSE; VAC | 1 | 2203- | NLR85 | (B) | ||
| 681 | I0-91180 208-0 | NUT; EGR PIPE | 1 | 2203- | ALL | M8 FLANGE | ||
| 016 | I8-97378 067-0 | STUD; EGR VLV | 3 | 2203- | NMR81 | (A) M8X43 L=54 | ||
| 058 | I0-28650 830-0 | BOLT; PIPE | 3 | 2203- | ALL | (B) M8X30 FLANGE |
