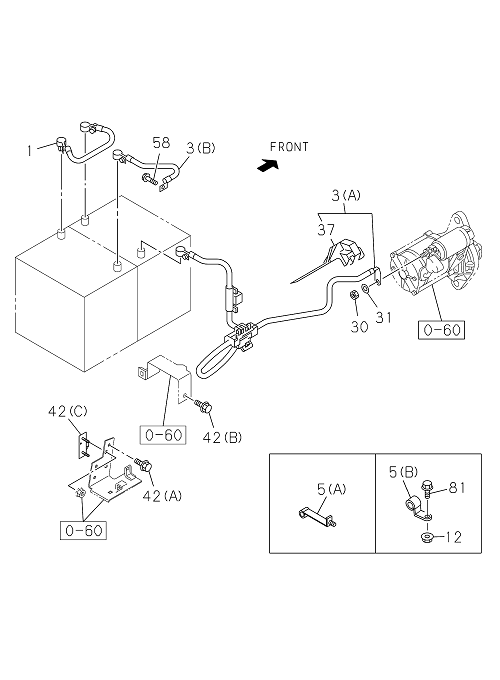

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 058 | I8-98141 256-1 | BOLT; CABLE,BATTERY | 1 | 2203- | ALL | M8X24 W/PL WASHER | ||
| 003 | I7-42501 236-A | HARNESS; CABLE,BATTERY TO STARTER | 1 | 2203- | ALL | (B) L=200 | ||
| 012 | I7-05108 010-A | NUT; BATTERY CABLE CLIP | 1 | 2203- | ALL | M8 FLANGE | ||
| 042 | I0-28050 816-0 | BOLT; BRKT,BATTERY CABLE | 1 | 2203- | ALL | (A) M8X16 FLANGE | ||
| 005 | I1-09700 813-0 | CLIP; BATTERY CABLE TO BODY | 1 | 2203- | NMR81 | (B) ID=13 H=18 L=20 | ||
| 005 | I8-97015 782-1 | CLIP; BATTERY CABLE TO BODY | 2 | 2203- | NLR85 | (A) ID=13 L=90 | ||
| 037 | I8-98042 507-0 | CAP; TERMINAL,BATTERY CABLE | 1 | 2203- | ALL | |||
| 042 | I8-97028 451-3 | BOLT; BRKT,BATTERY CABLE | 1 | 2203- | ALL | (C) | ||
| 003 | I8-97696 362-A | HARNESS; CABLE,BATTERY TO STARTER | 1 | 2203- | NMR81 | (A) | ||
| 081 | I0-28650 825-0 | BOLT; BATTERY CABLE | 1 | 2203- | ALL | M8X25 FLANGE | ||
| 030 | I0-91110 508-0 | NUT; CABLE,STARTER TO BATTERY | 1 | 2203- | ALL | M8 | ||
| 042 | I0-28650 625-0 | BOLT; BRKT,BATTERY CABLE | 1 | 2203- | NLR85 | (B) M6X25 FLANGE | ||
| 001 | I7-42502 223-A | CABLE; BATTERY | 1 | 2203- | ALL | L=280 | ||
| 031 | I0-91510 808-0 | WASHER; LK,CABLE,STARTER TO BATTERY | 1 | 2203- | ALL | ID=8.2 | ||
| 003 | I8-97648 919-A | HARNESS; CABLE,BATTERY TO STARTER | 1 | 2203- | NLR85 | (A) NLR85-TL; NLR85-BL | ||
| 003 | I8-97648 918-A | HARNESS; CABLE,BATTERY TO STARTER | 1 | 2203- | NLR85 | (A) NLR85-T; NLR85-B | ||
| 012 | I7-05108 010-A | NUT; BATTERY CABLE CLIP | 2 | 2203- | ALL | M8 FLANGE |
