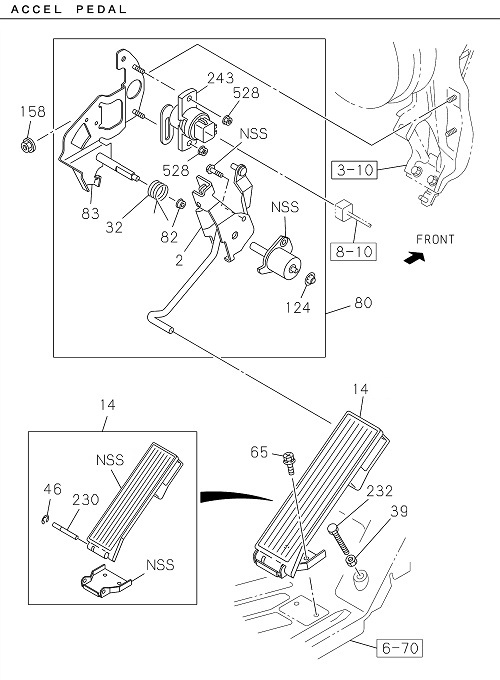

1-01 | ACCELERATOR PEDAL AND CONTROL
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 528 | I8-94169 022-0 | NUT; ACCEL SENSOR | 2 | 2203- | ALL | M5 | ||
| 046 | I0-91805 504-0 | RING; SNAP,ACCEL CONT PEDAL | 1 | 2203- | ALL | ID=4 | ||
| 083 | I8-98023 885-2 | BRACKET; CONT LINK | 1 | 2203- | ALL | |||
| 014 | I8-97853 061-A | PAD; PEDAL,ACCEL | 1 | 2203- | ALL | |||
| 080 | I8-97387 358-3 | LINK ASM; ENG CONT | 1 | 2203- | ALL | |||
| 083 | I8-98023 885-2 | BRACKET; CONT LINK | 1 | 2203- | ALL | |||
| 039 | I0-91110 508-0 | NUT; ACCEL PEDAL STOPPER | 1 | 2203- | ALL | M8 | ||
| 032 | I8-98031 665-0 | SPRING; RETURN,ACCEL PEDAL | 1 | 2203- | ALL | |||

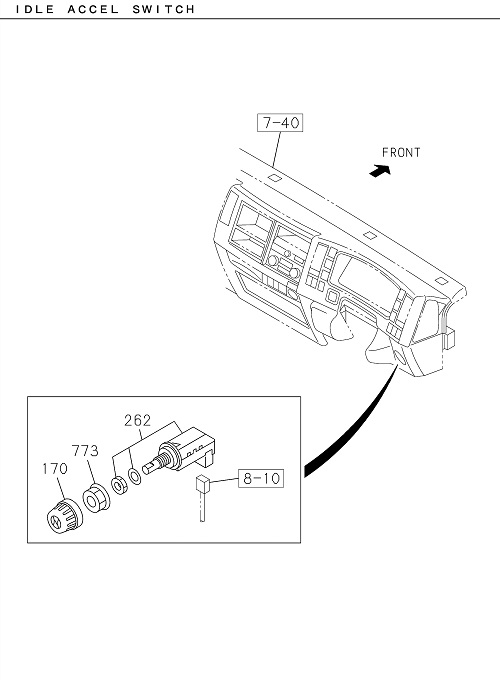

| 262 | I7-55204 813-0 | SWITCH; ACCEL,IDLE | 1 | 2307- | ALL | |||
| 046 | I0-91805 504-0 | RING; SNAP,ACCEL CONT PEDAL | 1 | 2203- | ALL | ID=4 | ||
| 170 | I8-98013 420-0 | KNOB | 1 | 2203- | ALL | |||
| 262 | I8-98013 418-0 | SWITCH; ACCEL,IDLE | 1 | 2203-2306 | ALL | |||
| 082 | I8-97581 053-0 | BUSHING; ENG CONT LVR | 1 | 2203- | ALL | |||
| 124 | I8-94368 617-0 | NUT; LEVER | 1 | 2203- | ALL | ID=7.9 PUSH NUT | ||
| 262 | I7-55204 813-0 | SWITCH; ACCEL,IDLE | 1 | 2307- | ALL | |||
| 032 | I8-98031 665-0 | SPRING; RETURN,ACCEL PEDAL | 1 | 2203- | ALL | |||
| 262 | I8-98013 418-0 | SWITCH; ACCEL,IDLE | 1 | 2203-2306 | ALL | |||
| 232 | I8-97378 461-0 | BOLT; STOPPER,ACCEL PEDAL | 1 | 2203- | ALL | M8X45 | ||
| 039 | I0-91110 508-0 | NUT; ACCEL PEDAL STOPPER | 1 | 2203- | ALL | M8 | ||
| 065 | I8-94310 730-0 | BOLT | 2 | 2203- | ALL | M8X16 W/LK&PL WASHER | ||
| 158 | I8-94279 060-0 | NUT; BRKT | 2 | 2203- | ALL | M8 FLANGE | ||
| 232 | I8-97378 461-0 | BOLT; STOPPER,ACCEL PEDAL | 1 | 2203- | ALL | M8X45 | ||
| 002 | I8-98002 158-2 | LEVER; ENG CONT | 1 | 2203- | ALL | |||
| 002 | I8-98002 158-2 | LEVER; ENG CONT | 1 | 2203- | ALL | |||
| 773 | I8-97352 127-0 | HOLDER; ACCEL PEDAL | 1 | 2203- | ALL | |||
| 773 | I8-97352 127-0 | HOLDER; ACCEL PEDAL | 1 | 2203- | ALL | |||
| 082 | I8-97581 053-0 | BUSHING; ENG CONT LVR | 1 | 2203- | ALL | |||
| 243 | I8-98131 263-0 | SENSOR; ACCEL | 1 | 2203- | ALL | |||
| 158 | I8-94279 060-0 | NUT; BRKT | 2 | 2203- | ALL | M8 FLANGE | ||
| 230 | I8-98026 806-0 | PIN; JOINT,ACCEL PEDAL TO BRKT | 1 | 2203- | ALL | |||
| 230 | I8-98026 806-0 | PIN; JOINT,ACCEL PEDAL TO BRKT | 1 | 2203- | ALL | |||
| 528 | I8-94169 022-0 | NUT; ACCEL SENSOR | 2 | 2203- | ALL | M5 | ||
| 080 | I8-97387 358-3 | LINK ASM; ENG CONT | 1 | 2203- | ALL | |||
| 065 | I8-94310 730-0 | BOLT | 2 | 2203- | ALL | M8X16 W/LK&PL WASHER | ||
| 170 | I8-98013 420-0 | KNOB | 1 | 2203- | ALL | |||
| 243 | I8-98131 263-0 | SENSOR; ACCEL | 1 | 2203- | ALL | |||
| 014 | I8-97853 061-A | PAD; PEDAL,ACCEL | 1 | 2203- | ALL | |||
| 124 | I8-94368 617-0 | NUT; LEVER | 1 | 2203- | ALL | ID=7.9 PUSH NUT |
