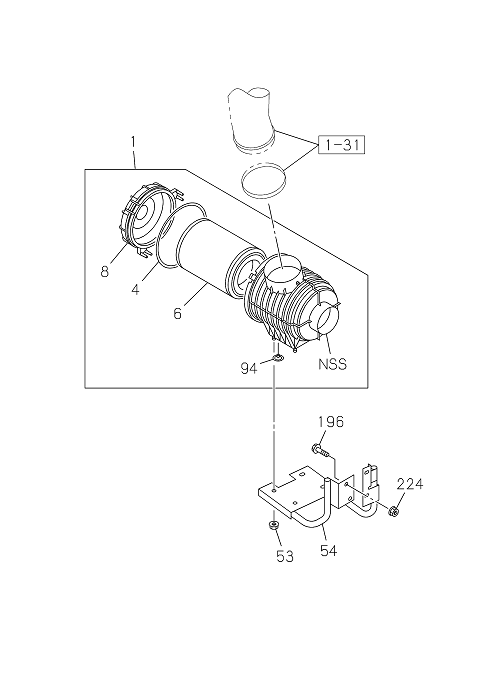

1-30 | AIR CLEANER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98321 353-1 | CLEANER ASM; AIR | 1 | 2203- | ALL | |||
| 001 | I8-98321 353-1 | CLEANER ASM; AIR | 1 | 2203- | ALL | |||
| 004 | I8-98321 327-0 | GASKET; COVER TO BODY | 1 | 2203- | ALL | |||
| 054 | I8-98317 829-1 | BRACKET; ACL | 1 | 2203- | NMR81 | |||
| 054 | I8-97559 581-0 | BRACKET; ACL | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 054 | I8-97559 580-0 | BRACKET; ACL | 1 | 2203- | NLR85 | |||
| 054 | I8-97559 581-0 | BRACKET; ACL | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 054 | I8-98317 829-1 | BRACKET; ACL | 1 | 2203- | NMR81 | |||
| 008 | I8-98321 326-1 | COVER ASM; ACL | 1 | 2203- | ALL | |||
| 053 | I7-05108 010-A | NUT; ACL | 4 | 2203- | ALL | M8 FLANGE | ||
| 224 | I0-91180 110-0 | NUT; BRKT | 4 | 2203- | ALL | M10 FLANGE | ||
| 004 | I8-98321 327-0 | GASKET; COVER TO BODY | 1 | 2203- | ALL | |||
| 094 | I8-98486 969-0 | VALVE; VACUATOR | 1 | 2203- | ALL | |||
| 224 | I0-91180 110-0 | NUT; BRKT | 4 | 2203- | ALL | M10 FLANGE | ||
| 006 | I8-98321 413-A | FILTER; ACL | 1 | 2203- | ALL | (IADG) | ||
| 054 | I8-97559 580-0 | BRACKET; ACL | 1 | 2203- | NLR85 | |||
| 006 | I8-98321 413-A | FILTER; ACL | 1 | 2203- | ALL | (IADG) | ||
| 196 | I0-28651 035-0 | BOLT; BRKT,ACL | 4 | 2203- | ALL | M10X35 FLANGE | ||
| 094 | I8-98486 969-0 | VALVE; VACUATOR | 1 | 2203- | ALL | |||
| 196 | I0-28651 035-0 | BOLT; BRKT,ACL | 4 | 2203- | ALL | M10X35 FLANGE | ||
| 006 | I8-98321 413-0 | FILTER; ACL | 1 | 2203- | ALL | |||
| 053 | I7-05108 010-A | NUT; ACL | 4 | 2203- | ALL | M8 FLANGE | ||
| 006 | I8-98321 413-0 | FILTER; ACL | 1 | 2203- | ALL | |||
| 008 | I8-98321 326-1 | COVER ASM; ACL | 1 | 2203- | ALL |
