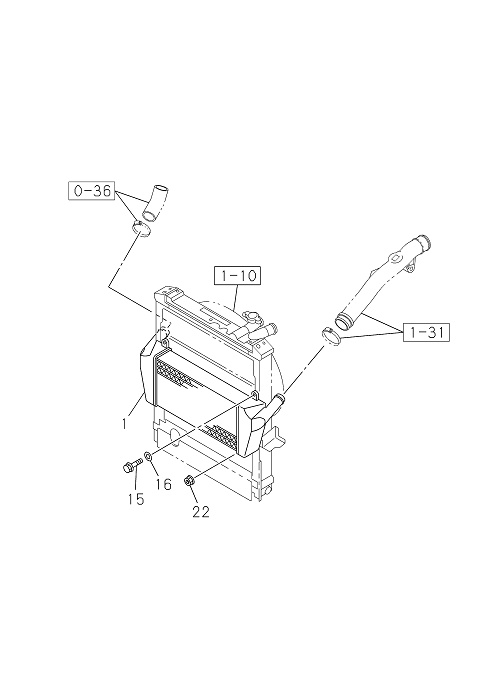

1-35 | CHARGE AIR COOLER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 016 | I0-91610 508-0 | WASHER; PL,CHARGE AIR COOLER | 2 | 2203- | ALL | ID=8.4 OD=16 | ||
| 015 | I0-28050 825-0 | BOLT; CHARGE AIR COOLER | 2 | 2203- | NMR81 | M8X25 FLANGE | ||
| 001 | I8-98094 527-1 | COOLER; CHARGE AIR | 1 | 2203- | NLR85 | |||
| 001 | I8-97489 497-0 | COOLER; CHARGE AIR | 1 | 2203- | NMR81 | |||
| 022 | I7-05108 010-A | NUT | 2 | 2203- | ALL | M8 FLANGE | ||
| 001 | I8-97489 497-0 | COOLER; CHARGE AIR | 1 | 2203- | NMR81 | |||
| 022 | I7-05108 010-A | NUT | 2 | 2203- | ALL | M8 FLANGE | ||
| 016 | I0-91610 508-0 | WASHER; PL,CHARGE AIR COOLER | 2 | 2203- | ALL | ID=8.4 OD=16 | ||
| 015 | I0-28050 825-0 | BOLT; CHARGE AIR COOLER | 2 | 2203- | NMR81 | M8X25 FLANGE | ||
| 001 | I8-98094 527-1 | COOLER; CHARGE AIR | 1 | 2203- | NLR85 |
