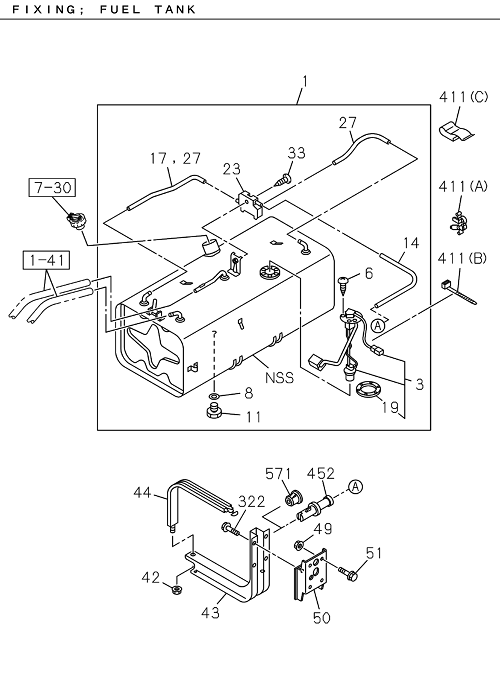

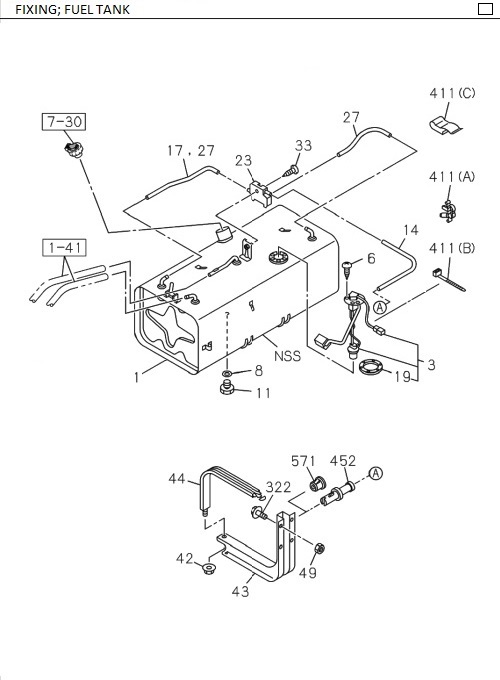

| 001 |
I7-56200 211-A |
|
TANK; FUEL |
1 |
2203- |
|
NMR81 |
|
| 300 |
I0-28051 070-0 |
|
BOLT; BRKT TO BODY |
2 |
2406- |
|
NMR81 |
(B) M10X70 FLANGE |
| 322 |
I0-28661 030-0 |
|
BOLT; BRKT FIX |
8 |
2203- |
|
ALL |
M10X30 FLANGE |
| 033 |
I0-36230 620-0 |
|
SCREW; JOINT TO FUEL TANK |
1 |
2203- |
|
ALL |
M6X20 W/LK&PL WASHER |
| 006 |
I0-36220 510-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
2203- |
|
ALL |
M5X10 W/LK WASHER |
| 001 |
I7-56200 211-A |
|
TANK; FUEL |
1 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 571 |
I8-97096 990-0 |
|
GROMMET |
1 |
2203- |
|
ALL |
|
| 001 |
I7-56200 211-A |
|
TANK; FUEL |
1 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 003 |
I8-98302 536-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2203- |
|
NMR81 |
|
| 027 |
I8-94128 825-A |
|
HOSE; BREATHER |
2 |
2203- |
|
NLR85 |
L=470; NLR85-TL; NLR85-BL |
| 322 |
I0-28661 030-0 |
|
BOLT; BRKT FIX |
8 |
2203- |
|
ALL |
M10X30 FLANGE |
| 027 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=340; NLR85-TL; NLR85-BL |
| 044 |
I7-56402 275-A |
|
BAND; FUEL TANK |
2 |
2203- |
|
ALL |
|
| 044 |
I7-56402 275-A |
|
BAND; FUEL TANK |
2 |
2203- |
|
ALL |
|
| 001 |
I8-97695 682-A |
|
TANK; FUEL |
1 |
2203- |
|
NLR85 |
NLR85-T; NLR85-B |
| 051 |
I0-28661 030-0 |
|
BOLT; BRKT TO FRAME |
8 |
2203- |
|
NLR85 |
M10X30 FLANGE |
| 003 |
I8-97672 599-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2203- |
|
NLR85 |
|
| 017 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=430 |
| 023 |
I8-97077 713-1 |
|
JOINT; BREATHER HOSE |
1 |
2203- |
|
ALL |
|
| 300 |
I0-28650 825-0 |
|
BOLT; BRKT TO BODY |
2 |
2203- |
|
NLR85 |
(A) M8X25 FLANGE |
| 043 |
I8-97035 517-A |
|
BRACKET; FUEL TANK |
2 |
2203- |
|
NMR81 |
|
| 011 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
1 |
2203- |
|
ALL |
M14X14 |
| 014 |
I9-09914 701-0 |
|
HOSE; BREATHER,OUTLET |
1 |
2203- |
|
ALL |
L=320 |
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
2203- |
|
ALL |
ID=42 OD=71 |
| 011 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
1 |
2203- |
|
ALL |
M14X14 |
| 049 |
I7-05110 010-A |
|
NUT; BRKT |
8 |
2203- |
|
ALL |
M10 FLANGE |
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
2203- |
|
ALL |
ID=42 OD=71 |
| 051 |
I0-28661 030-0 |
|
BOLT; BRKT TO FRAME |
8 |
2203- |
|
NLR85 |
M10X30 FLANGE |
| 027 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NMR81 |
L=340 |
| 043 |
I8-97035 517-A |
|
BRACKET; FUEL TANK |
2 |
2203- |
|
NMR81 |
|
| 411 |
I8-97371 950-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
NMR81 |
(C) T=10.5 |
| 001 |
I8-97695 682-A |
|
TANK; FUEL |
1 |
2203- |
|
NLR85 |
NLR85-T; NLR85-B |
| 003 |
I8-98302 536-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2203- |
|
NMR81 |
|
| 050 |
I8-97361 274-2 |
|
BRACKET; SUPPORT,FUEL BRKT |
2 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 411 |
I1-09709 287-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
NMR81 |
(A) ID=5-12 L=18 |
| 049 |
I7-05110 010-A |
|
NUT; BRKT |
8 |
2203- |
|
ALL |
M10 FLANGE |
| 043 |
I8-97035 517-A |
|
BRACKET; FUEL TANK |
2 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 452 |
I8-97062 954-1 |
|
BREATHER; FUEL TANK |
1 |
2203- |
|
ALL |
|
| 017 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=430; NLR85-TL; NLR85-BL |
| 027 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=340; NLR85-TL; NLR85-BL |
| 411 |
I1-09709 287-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
NMR81 |
(A) ID=5-12 L=18 |
| 300 |
I0-28650 825-0 |
|
BOLT; BRKT TO BODY |
2 |
2203- |
|
NLR85 |
(A) M8X25 FLANGE |
| 006 |
I0-36220 510-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
2203- |
|
ALL |
M5X10 W/LK WASHER |
| 411 |
I8-97371 950-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
NMR81 |
(C) T=10.5 |
| 411 |
I5-09707 030-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
16 |
2406- |
|
NMR81 |
(B) L=250 |
| 571 |
I8-97096 990-0 |
|
GROMMET |
1 |
2203- |
|
ALL |
|
| 014 |
I9-09914 701-0 |
|
HOSE; BREATHER,OUTLET |
1 |
2203- |
|
ALL |
L=320 |
| 411 |
I5-09707 031-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
ALL |
(B) L=140 |

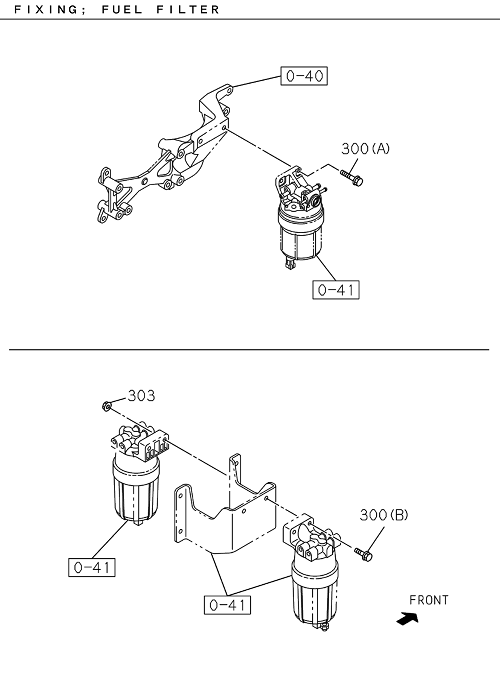

| 303 |
I7-05110 010-A |
|
NUT; SEDIMENTER BRKT |
2 |
2406- |
|
NMR81 |
M10 FLANGE |
| 011 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
1 |
2203- |
|
ALL |
M14X14 |
| 033 |
I0-36230 620-0 |
|
SCREW; JOINT TO FUEL TANK |
1 |
2203- |
|
ALL |
M6X20 W/LK&PL WASHER |
| 411 |
I1-09709 288-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
ALL |
(A) ID=5-12 L=22 |
| 003 |
I8-98302 536-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2203- |
|
NMR81 |
|
| 411 |
I8-97696 310-A |
|
CLIP; FUEL TANK UNIT HARNESS |
16 |
2406- |
|
NMR81 |
(B) L=250 |
| 044 |
I7-56402 275-A |
|
BAND; FUEL TANK |
2 |
2203- |
|
ALL |
|
| 008 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
2203- |
|
ALL |
ID=14.2 OD=23.0 |
| 027 |
I8-94128 825-A |
|
HOSE; BREATHER |
2 |
2203- |
|
NLR85 |
L=470; NLR85-TL; NLR85-BL |
| 452 |
I8-97062 954-1 |
|
BREATHER; FUEL TANK |
1 |
2203- |
|
ALL |
|
| 452 |
I8-97062 954-1 |
|
BREATHER; FUEL TANK |
1 |
2203- |
|
ALL |
|
| 300 |
I0-28051 070-0 |
|
BOLT; BRKT TO BODY |
2 |
2406- |
|
NMR81 |
(B) M10X70 FLANGE |
| 017 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=430 |
| 017 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=430; NLR85-TL; NLR85-BL |
| 411 |
I1-09709 287-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
NMR81 |
(A) ID=5-12 L=18 |
| 043 |
I8-97035 517-A |
|
BRACKET; FUEL TANK |
2 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 014 |
I9-09914 701-0 |
|
HOSE; BREATHER,OUTLET |
1 |
2203- |
|
ALL |
L=320 |
| 300 |
I0-28650 825-0 |
|
BOLT; BRKT TO BODY |
2 |
2203- |
|
NLR85 |
(A) M8X25 FLANGE |
| 006 |
I0-36220 510-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
2203- |
|
ALL |
M5X10 W/LK WASHER |
| 042 |
I9-09130 408-0 |
|
NUT; SUPPORT BELT |
2 |
2203- |
|
ALL |
M8 |
| 042 |
I9-09130 408-0 |
|
NUT; SUPPORT BELT |
2 |
2203- |
|
ALL |
M8 |
| 051 |
I0-28661 030-0 |
|
BOLT; BRKT TO FRAME |
8 |
2203- |
|
NLR85 |
M10X30 FLANGE |
| 033 |
I0-36230 620-0 |
|
SCREW; JOINT TO FUEL TANK |
1 |
2203- |
|
ALL |
M6X20 W/LK&PL WASHER |
| 411 |
I1-09709 288-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
ALL |
(A) ID=5-12 L=22 |
| 003 |
I8-97672 599-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2203- |
|
NLR85 |
|
| 411 |
I5-09707 030-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
16 |
2406- |
|
NMR81 |
(B) L=250 |
| 001 |
I7-56200 211-A |
|
TANK; FUEL |
1 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 001 |
I7-56200 211-A |
|
TANK; FUEL |
1 |
2203- |
|
NMR81 |
|
| 411 |
I5-09707 031-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
ALL |
(B) L=140 |
| 008 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
2203- |
|
ALL |
ID=14.2 OD=23.0 |
| 017 |
I8-94128 825-A |
|
HOSE; BREATHER |
1 |
2203- |
|
NLR85 |
L=430; NLR85-TL; NLR85-BL |
| 411 |
I8-97371 950-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
NMR81 |
(C) T=10.5 |
| 043 |
I8-97035 517-A |
|
BRACKET; FUEL TANK |
2 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 027 |
I8-94128 825-A |
|
HOSE; BREATHER |
2 |
2203- |
|
NMR81 |
L=470 |
| 303 |
I7-05110 010-A |
|
NUT; SEDIMENTER BRKT |
2 |
2406- |
|
NMR81 |
M10 FLANGE |
| 303 |
I7-05110 010-A |
|
NUT; SEDIMENTER BRKT |
2 |
2406- |
|
NMR81 |
M10 FLANGE |
| 023 |
I8-97077 713-1 |
|
JOINT; BREATHER HOSE |
1 |
2203- |
|
ALL |
|
| 322 |
I0-28661 030-0 |
|
BOLT; BRKT FIX |
8 |
2203- |
|
ALL |
M10X30 FLANGE |
| 023 |
I8-97077 713-1 |
|
JOINT; BREATHER HOSE |
1 |
2203- |
|
ALL |
|
| 411 |
I5-09707 031-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
ALL |
(B) L=140 |
| 001 |
I8-97695 682-A |
|
TANK; FUEL |
1 |
2203- |
|
NLR85 |
NLR85-T; NLR85-B |
| 411 |
I1-09709 288-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2203- |
|
ALL |
(A) ID=5-12 L=22 |
| 050 |
I8-97361 274-2 |
|
BRACKET; SUPPORT,FUEL BRKT |
2 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
| 049 |
I7-05110 010-A |
|
NUT; BRKT |
8 |
2203- |
|
ALL |
M10 FLANGE |
| 042 |
I9-09130 408-0 |
|
NUT; SUPPORT BELT |
2 |
2203- |
|
ALL |
M8 |
| 300 |
I0-28051 070-0 |
|
BOLT; BRKT TO BODY |
2 |
2406- |
|
NMR81 |
(B) M10X70 FLANGE |
| 571 |
I8-97096 990-0 |
|
GROMMET |
1 |
2203- |
|
ALL |
|
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
2203- |
|
ALL |
ID=42 OD=71 |
| 008 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
2203- |
|
ALL |
ID=14.2 OD=23.0 |
| 003 |
I8-97672 599-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2203- |
|
NLR85 |
|
| 050 |
I8-97361 274-2 |
|
BRACKET; SUPPORT,FUEL BRKT |
2 |
2203- |
|
NLR85 |
NLR85-TL; NLR85-BL |
