1-41 | FUEL PIPING; CHASSIS
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 045 | I8-98000 535-A | PIPE; FUEL,DELIVERY | 1 | 2203- | NLR85 | |||
| 174 | I8-97696 117-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NMR81 | (A) | ||
| 065 | I7-47494 025-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2406- | NMR81 | (G) | ||
| 048 | I0-28651 030-0 | BOLT; BRKT | 1 | 2203- | NLR85 | (A) M10X30 FLANGE | ||
| 029 | I8-97497 028-A | HOSE; FUEL | 1 | 2203-2405 | NMR81 | (A) | ||
| 029 | I8-98345 858-0 | HOSE; FUEL | 1 | 2203-2405 | NMR81 | (C) | ||
| 066 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 1 | 2203- | ALL | (C) L=140 | ||
| 045 | I8-98000 535-A | PIPE; FUEL,DELIVERY | 1 | 2203- | NLR85 | |||

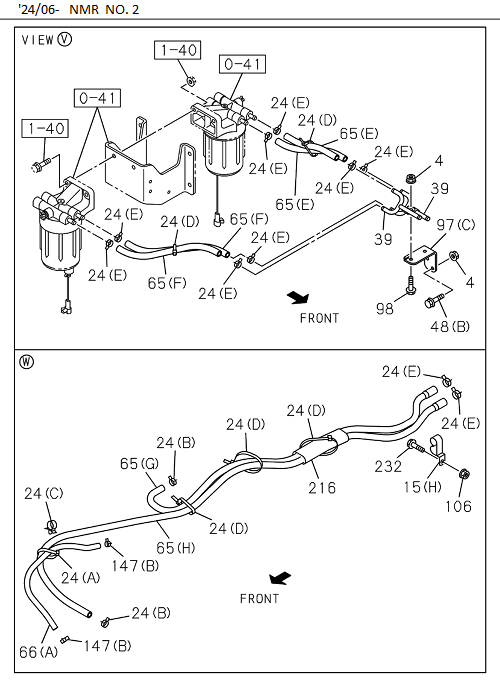

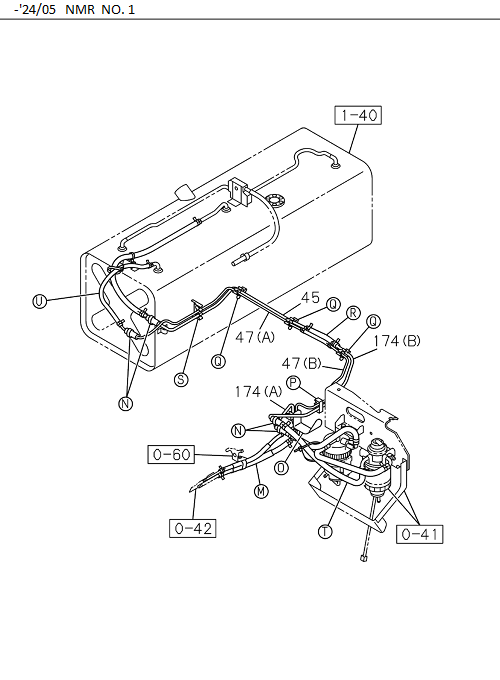

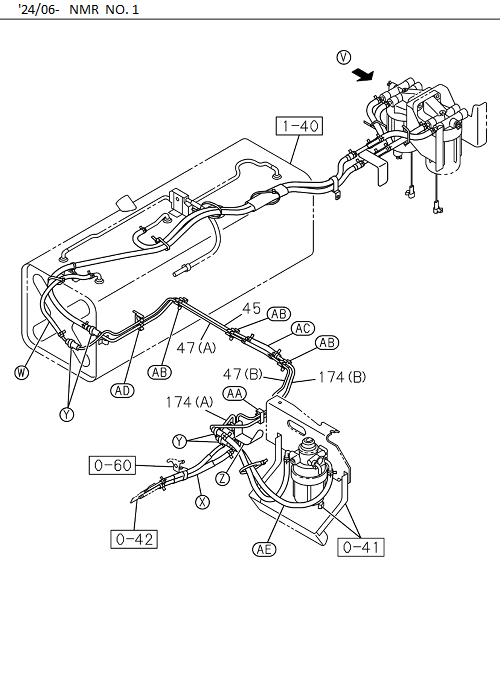

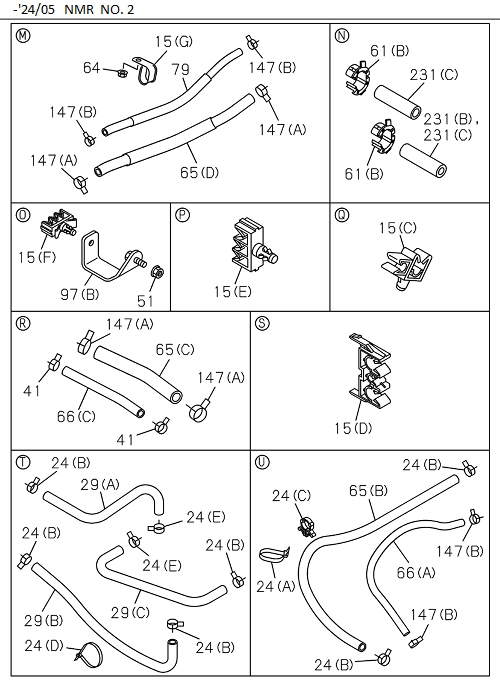

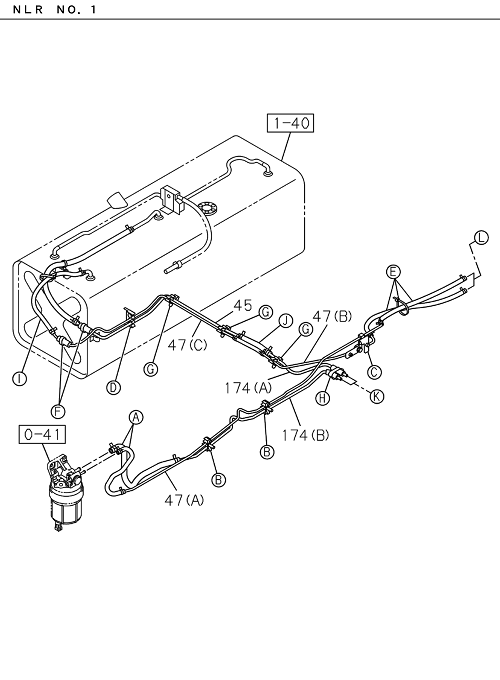

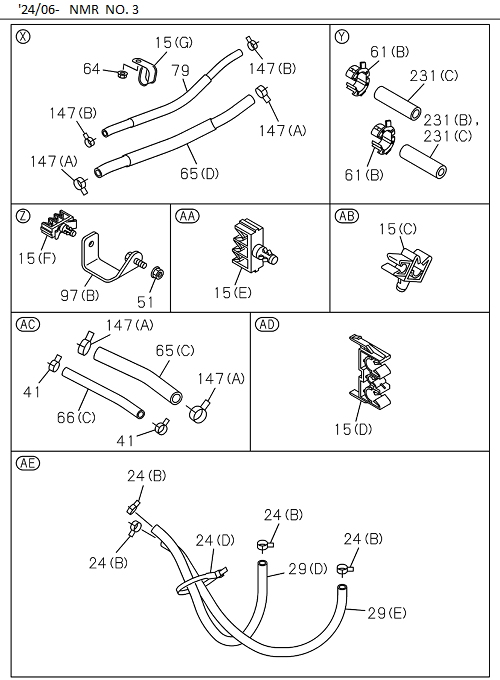

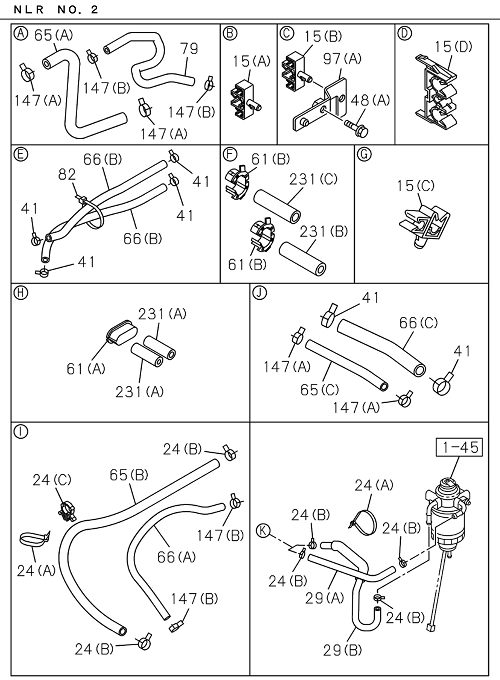

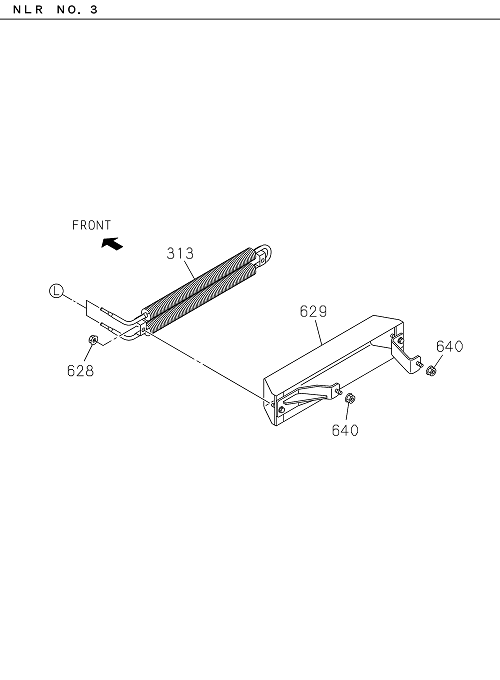

| 313 | I8-98175 112-0 | COOLER ASM; FUEL | 1 | 2203- | NLR85 | |||
| 231 | I8-97214 235-0 | RUBBER; SUPPORT,FUEL PIPE | 2 | 2203- | NLR85 | (A) OD=16.5 L=50 | ||
| 174 | I8-97696 617-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (B) | ||
| 029 | I0-01859 300-0 | HOSE; FUEL | 1 | 2406- | NMR81 | (D) L=450 | ||
| 047 | I8-97696 120-A | PIPE; FUEL,RETURN | 1 | 2203- | NMR81 | (B) | ||
| 231 | I8-97077 629-A | RUBBER; SUPPORT,FUEL PIPE | 1 | 2203- | ALL | (C) OD=15 L=50 | ||
| 313 | I8-98175 112-0 | COOLER ASM; FUEL | 1 | 2203- | NLR85 | |||
| 065 | I7-47494 026-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2406- | NMR81 | (H) | ||
| 024 | I5-09707 030-1 | CLIP; FUEL HOSE | 1 | 2203-2405 | ALL | (D) L=250 | ||
| 065 | I0-01812 640-0 | HOSE; FUEL,DELIVERY PIPE | 2 | 2406- | NMR81 | (E) L=640 | ||
| 048 | I0-28651 030-0 | BOLT; BRKT | 1 | 2203- | NLR85 | (A) M10X30 FLANGE | ||
| 047 | I8-97696 615-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (A) NLR85-T; NLR85-B | ||
| 079 | I8-98357 697-0 | HOSE; FUEL,PUMP TO PIPE,RETURN | 1 | 2203- | NLR85 | |||
| 079 | I8-98357 697-0 | HOSE; FUEL,PUMP TO PIPE,RETURN | 1 | 2203- | NLR85 | |||
| 065 | I0-01812 640-0 | HOSE; FUEL,DELIVERY PIPE | 2 | 2406- | NMR81 | (F) L=640 | ||
| 029 | I8-98345 858-0 | HOSE; FUEL | 1 | 2203-2405 | NMR81 | (C) | ||
| 061 | I8-94128 319-A | GROMMET; PIPE TO FRAME | 2 | 2203- | ALL | (B) ID=17 | ||
| 041 | I8-98150 358-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | ALL | ID=12 | ||
| 029 | I0-01859 300-0 | HOSE; FUEL | 1 | 2406- | NMR81 | (E) L=520 | ||
| 629 | I8-98212 759-1 | BRACKET; FUEL CLR | 1 | 2203- | NLR85 | |||
| 029 | I0-01859 300-0 | HOSE; FUEL | 1 | 2203- | ALL | (A) L=360 | ||
| 231 | I8-94157 054-A | RUBBER; SUPPORT,FUEL PIPE | 1 | 2203- | ALL | (B) OD=17 L=50 | ||
| 024 | I8-97089 536-0 | CLIP; FUEL HOSE | 1 | 2203- | ALL | (C) ID=18 | ||
| 097 | I7-47494 019-A | BRACKET; CLIP | 1 | 2406- | NMR81 | (C) | ||
| 045 | I8-97696 113-A | PIPE; FUEL,DELIVERY | 1 | 2203- | NMR81 | |||
| 029 | I8-97497 029-A | HOSE; FUEL | 1 | 2203-2405 | NMR81 | (B) | ||
| 174 | I8-97696 118-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NMR81 | (B) | ||
| 015 | I8-97326 156-2 | CLIP; FUEL PIPE | 1 | 2203- | NLR85 | (B) ID=10 OR 12 & 6.35X2 & 4.76 | ||
| 097 | I7-47494 019-A | BRACKET; CLIP | 1 | 2406- | NMR81 | (C) | ||
| 047 | I8-97696 620-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (A) | ||
| 015 | I8-97215 437-0 | CLIP; FUEL PIPE | 3 | 2203- | ALL | (C) ID=12 & 6.35 | ||
| 047 | I8-97696 614-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (B) NLR85-T; NLR85-B | ||
| 231 | I8-94157 054-A | RUBBER; SUPPORT,FUEL PIPE | 1 | 2203- | ALL | (B) OD=17 L=50 | ||
| 082 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 2203- | NLR85 | L=140 | ||
| 174 | I8-97696 118-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NMR81 | (B) | ||
| 039 | I8-98186 864-1 | PIPE; FUEL | 2 | 2406- | NMR81 | |||
| 231 | I8-97214 235-0 | RUBBER; SUPPORT,FUEL PIPE | 2 | 2203- | NLR85 | (A) OD=16.5 L=50 | ||
| 065 | I0-01859 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | ALL | (C) L=140 | ||
| 024 | I8-98150 356-0 | CLIP; FUEL HOSE | 10 | 2406- | NMR81 | (E) ID=19 | ||
| 079 | I7-56600 240-A | HOSE; FUEL,PUMP TO PIPE,RETURN | 1 | 2203- | NMR81 | |||
| 051 | I0-91180 110-0 | NUT; CLIP,PIPE | 1 | 2203- | ALL | M10 FLANGE | ||
| 097 | I8-97696 151-A | BRACKET; CLIP | 1 | 2203- | NMR81 | (B) | ||
| 024 | I8-98150 356-0 | CLIP; FUEL HOSE | 2 | 2203-2405 | NMR81 | (E) ID=19 | ||
| 174 | I8-97696 612-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (A) NLR85-T; NLR85-B | ||
| 065 | I0-01859 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | ALL | (B) L=640 | ||
| 015 | I9-09916 239-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (G) | ||
| 015 | I8-97326 157-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (D) ID=10X2 OR 12X2 & 6.35 | ||
| 015 | I8-97326 157-1 | CLIP; FUEL PIPE | 1 | 2203- | NLR85 | (D) ID=10X2 OR 12X2 & 6.35; NLR85-TL; NLR85-BL | ||
| 015 | I8-97215 437-0 | CLIP; FUEL PIPE | 3 | 2203- | ALL | (C) ID=12 & 6.35 | ||
| 628 | I7-05108 010-A | NUT; FUEL CLR | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 061 | I8-98038 801-0 | GROMMET; PIPE TO FRAME | 1 | 2203- | NLR85 | (A) | ||
| 061 | I8-98038 801-0 | GROMMET; PIPE TO FRAME | 1 | 2203- | NLR85 | (A) | ||
| 029 | I0-01859 300-0 | HOSE; FUEL | 1 | 2203- | ALL | (A) L=360 | ||
| 015 | I8-97305 169-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (F) ID=12 & 6.35 & 4.76 | ||
| 174 | I8-97696 618-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (A) | ||
| 231 | I8-97077 629-A | RUBBER; SUPPORT,FUEL PIPE | 1 | 2203- | ALL | (C) OD=15 L=50 | ||
| 174 | I8-97696 617-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (B) | ||
| 047 | I8-98025 784-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (C) NLR85-T; NLR85-B | ||
| 064 | I0-91180 106-0 | NUT; CLIP | 1 | 2203- | ALL | M6 FLANGE | ||
| 232 | I0-28650 830-0 | BOLT; CLIP PIPE | 1 | 2406- | NMR81 | M8X30 FLANGE | ||
| 024 | I8-98008 098-0 | CLIP; FUEL HOSE | 6 | 2203- | ALL | (B) ID=16 | ||
| 147 | I8-98150 358-0 | CLIP; FUEL PIPE TO HOSE | 4 | 2203- | ALL | (B) ID=12 | ||
| 015 | I1-09700 681-0 | CLIP; FUEL PIPE | 1 | 2406- | NMR81 | (H) ID=19 & 19 L=53 | ||
| 047 | I8-97696 115-A | PIPE; FUEL,RETURN | 1 | 2203- | NMR81 | (A) | ||
| 097 | I8-97696 151-A | BRACKET; CLIP | 1 | 2203- | NMR81 | (B) | ||
| 047 | I8-97696 115-A | PIPE; FUEL,RETURN | 1 | 2203- | NMR81 | (A) | ||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 4 | 2203- | ALL | (A) ID=16 | ||
| 098 | I0-28650 825-0 | BOLT; BRKT,FUEL PIPE | 1 | 2406- | NMR81 | M8X25 FLANGE | ||
| 024 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 2203- | ALL | (A) L=140 | ||
| 015 | I8-97326 156-2 | CLIP; FUEL PIPE | 1 | 2203- | NLR85 | (B) ID=10 OR 12 & 6.35X2 & 4.76 | ||
| 079 | I7-56600 240-A | HOSE; FUEL,PUMP TO PIPE,RETURN | 1 | 2203- | NMR81 | |||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 4 | 2203- | ALL | (A) ID=16 | ||
| 097 | I8-98136 287-1 | BRACKET; CLIP | 1 | 2203- | NLR85 | (A) | ||
| 024 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 2203- | ALL | (A) L=140 | ||
| 174 | I8-97696 117-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NMR81 | (A) | ||
| 216 | I1-09360 677-1 | INSULATION; FUEL PIPE | 1 | 2406- | NMR81 | L=150 | ||
| 015 | I8-98153 939-1 | CLIP; FUEL PIPE | 2 | 2203- | NLR85 | (A) ID=10 OR 12 & 6.35 OR 8.0 & 4. 76 OR 6.35 | ||
| 216 | I1-09360 677-1 | INSULATION; FUEL PIPE | 1 | 2406- | NMR81 | L=150 | ||
| 029 | I8-97497 028-A | HOSE; FUEL | 1 | 2203-2405 | NMR81 | (A) | ||
| 045 | I8-98025 783-A | PIPE; FUEL,DELIVERY | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 015 | I8-97326 157-1 | CLIP; FUEL PIPE | 1 | 2203- | NLR85 | (D) ID=10X2 OR 12X2 & 6.35; NLR85-TL; NLR85-BL | ||
| 015 | I8-97064 484-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (E) ID=10 & 6.4 & 4.8 | ||
| 047 | I8-97696 619-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (B) | ||
| 640 | I7-05108 010-A | NUT; BRKT,FUEL CLR | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 628 | I7-05108 010-A | NUT; FUEL CLR | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 106 | I0-91180 108-0 | NUT; FUEL PIPE | 1 | 2406- | NMR81 | M8 FLANGE | ||
| 065 | I7-56600 241-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | NLR85 | (A) | ||
| 051 | I0-91180 110-0 | NUT; CLIP,PIPE | 1 | 2203- | ALL | M10 FLANGE | ||
| 047 | I8-97696 120-A | PIPE; FUEL,RETURN | 1 | 2203- | NMR81 | (B) | ||
| 232 | I0-28650 830-0 | BOLT; CLIP PIPE | 1 | 2406- | NMR81 | M8X30 FLANGE | ||
| 147 | I8-98150 358-0 | CLIP; FUEL PIPE TO HOSE | 4 | 2203- | ALL | (B) ID=12 | ||
| 029 | I8-98322 764-0 | HOSE; FUEL | 1 | 2203- | NLR85 | (B) | ||
| 024 | I5-09707 030-1 | CLIP; FUEL HOSE | 6 | 2406- | ALL | (D) L=250 | ||
| 045 | I8-97696 113-A | PIPE; FUEL,DELIVERY | 1 | 2203- | NMR81 | |||
| 047 | I8-97696 619-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (B) | ||
| 047 | I8-97696 620-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (A) | ||
| 045 | I8-98025 783-A | PIPE; FUEL,DELIVERY | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 640 | I7-05108 010-A | NUT; BRKT,FUEL CLR | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 065 | I7-56600 241-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | NLR85 | (A) | ||
| 174 | I8-97696 618-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (A) | ||
| 047 | I8-98025 784-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (C) NLR85-T; NLR85-B | ||
| 174 | I8-97696 612-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (A) NLR85-T; NLR85-B | ||
| 064 | I0-91180 106-0 | NUT; CLIP | 1 | 2203- | ALL | M6 FLANGE | ||
| 629 | I7-20800 270-A | BRACKET; FUEL CLR | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 047 | I8-98000 542-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (C) | ||
| 039 | I8-98186 864-1 | PIPE; FUEL | 2 | 2406- | NMR81 | |||
| 066 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 1 | 2203- | ALL | (A) L=420 | ||
| 041 | I8-98150 358-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | ALL | ID=12 | ||
| 629 | I7-20800 270-A | BRACKET; FUEL CLR | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 048 | I0-28650 830-0 | BOLT; BRKT | 2 | 2406- | NMR81 | (B) M8X30 FLANGE | ||
| 047 | I8-98000 542-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (C) | ||
| 082 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 2203- | NLR85 | L=140 | ||
| 097 | I8-98136 287-1 | BRACKET; CLIP | 1 | 2203- | NLR85 | (A) | ||
| 041 | I8-98150 358-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 2203- | ALL | ID=12 | ||
| 015 | I8-98153 939-1 | CLIP; FUEL PIPE | 2 | 2203- | NLR85 | (A) ID=10 OR 12 & 6.35 OR 8.0 & 4. 76 OR 6.35 | ||
| 066 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 1 | 2203- | ALL | (A) L=420 | ||
| 015 | I1-09700 681-0 | CLIP; FUEL PIPE | 1 | 2406- | NMR81 | (H) ID=19 & 19 L=53 | ||
| 174 | I8-97696 613-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (B) NLR85-T; NLR85-B | ||
| 015 | I8-97305 169-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (F) ID=12 & 6.35 & 4.76 | ||
| 029 | I0-01859 300-0 | HOSE; FUEL | 1 | 2406- | NMR81 | (D) L=450 | ||
| 065 | I7-47494 025-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2406- | NMR81 | (G) | ||
| 065 | I0-01812 640-0 | HOSE; FUEL,DELIVERY PIPE | 2 | 2406- | NMR81 | (E) L=640 | ||
| 629 | I8-98212 759-1 | BRACKET; FUEL CLR | 1 | 2203- | NLR85 | |||
| 066 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 2 | 2203- | ALL | (B) L=300 | ||
| 004 | I7-05108 010-A | NUT; BRKT | 3 | 2406- | NMR81 | M8 FLANGE | ||
| 106 | I0-91180 108-0 | NUT; FUEL PIPE | 1 | 2406- | NMR81 | M8 FLANGE | ||
| 065 | I8-97696 148-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | NMR81 | (D) | ||
| 047 | I8-97696 614-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (B) NLR85-T; NLR85-B | ||
| 098 | I0-28650 825-0 | BOLT; BRKT,FUEL PIPE | 1 | 2406- | NMR81 | M8X25 FLANGE | ||
| 048 | I0-28650 830-0 | BOLT; BRKT | 2 | 2406- | NMR81 | (B) M8X30 FLANGE | ||
| 065 | I0-01859 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | ALL | (B) L=640 | ||
| 024 | I8-98150 356-0 | CLIP; FUEL HOSE | 2 | 2203-2405 | NMR81 | (E) ID=19 | ||
| 065 | I7-47494 026-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2406- | NMR81 | (H) | ||
| 047 | I8-97696 615-A | PIPE; FUEL,RETURN | 1 | 2203- | NLR85 | (A) NLR85-T; NLR85-B | ||
| 029 | I8-98322 764-0 | HOSE; FUEL | 1 | 2203- | NLR85 | (B) | ||
| 029 | I8-97497 029-A | HOSE; FUEL | 1 | 2203-2405 | NMR81 | (B) | ||
| 024 | I5-09707 030-1 | CLIP; FUEL HOSE | 1 | 2203-2405 | ALL | (D) L=250 | ||
| 024 | I8-98008 098-0 | CLIP; FUEL HOSE | 6 | 2203- | ALL | (B) ID=16 | ||
| 015 | I8-97064 484-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (E) ID=10 & 6.4 & 4.8 | ||
| 061 | I8-94128 319-A | GROMMET; PIPE TO FRAME | 2 | 2203- | ALL | (B) ID=17 | ||
| 065 | I8-97696 148-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | NMR81 | (D) | ||
| 015 | I9-09916 239-1 | CLIP; FUEL PIPE | 1 | 2203- | NMR81 | (G) | ||
| 024 | I8-97089 536-0 | CLIP; FUEL HOSE | 1 | 2203- | ALL | (C) ID=18 | ||
| 174 | I8-97696 613-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | NLR85 | (B) NLR85-T; NLR85-B | ||
| 004 | I7-05108 010-A | NUT; BRKT | 3 | 2406- | NMR81 | M8 FLANGE |
