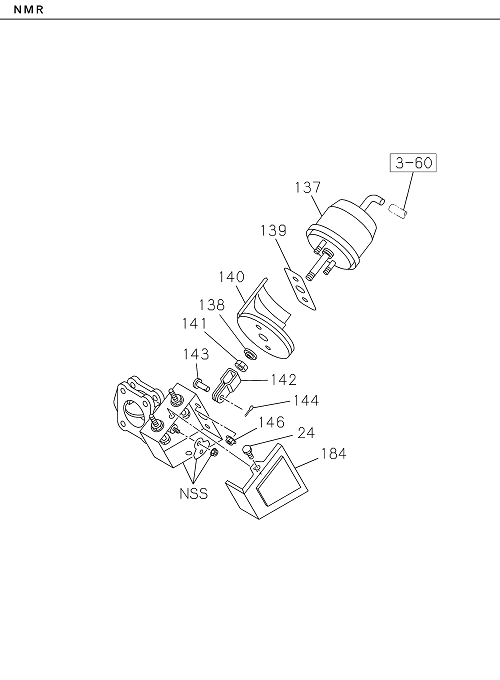

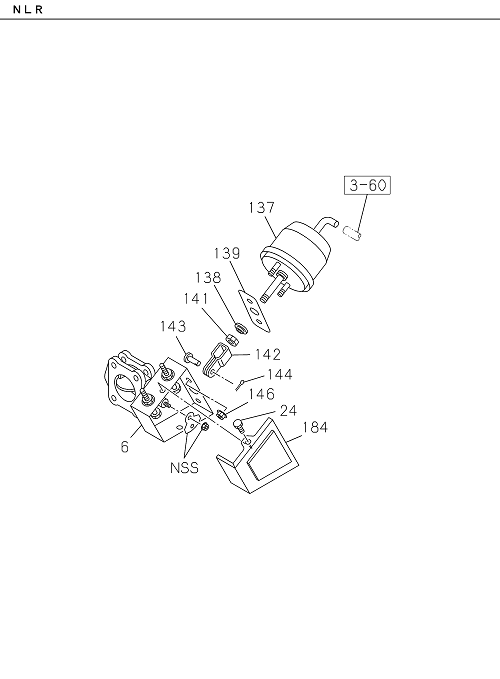

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 137 | I8-98368 749-0 | CHAMBER; POWER | 1 | 2203- | NMR81 | |||
| 143 | I8-94311 452-0 | PIN; EXH BRK VLV | 1 | 2203- | ALL | |||
| 024 | I8-97065 029-0 | BOLT; COVER | 2 | 2203- | ALL | |||
| 024 | I8-97065 029-0 | BOLT; COVER | 2 | 2203- | ALL | |||
| 140 | I8-97129 576-0 | INSULATOR; EXH BRK VLV | 1 | 2203- | NMR81 | |||
| 138 | I8-94311 446-0 | BEARING; EXH BRK VLV | 1 | 2203- | NLR85 | |||
| 146 | I0-91180 208-0 | NUT; EXH BRK VLV | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 144 | I8-97029 428-0 | PIN; SPLIT,EXH BRK VLV | 1 | 2203- | ALL | |||
| 142 | I8-97177 311-0 | CLEVIS; EXH BRK VLV | 1 | 2203- | ALL | |||
| 138 | I8-94311 446-0 | BEARING; EXH BRK VLV | 1 | 2203- | NLR85 | |||
| 141 | I9-09111 508-A | NUT; CLEVIS,EXH BRK VLV | 1 | 2203- | NLR85 | |||
| 137 | I8-98043 596-0 | CHAMBER; POWER | 1 | 2203- | NLR85 | |||
| 006 | I8-97360 025-1 | VALVE; EXH BRAKE | 1 | 2203- | NLR85 | |||
| 144 | I8-97029 428-0 | PIN; SPLIT,EXH BRK VLV | 1 | 2203- | ALL | |||
| 006 | I8-97360 025-1 | VALVE; EXH BRAKE | 1 | 2203- | NLR85 | |||
| 184 | I8-97311 447-0 | COVER; BRKT | 1 | 2203- | NLR85 | |||
| 184 | I8-98070 514-0 | COVER; BRKT | 1 | 2203- | NMR81 | |||
| 140 | I8-97129 576-0 | INSULATOR; EXH BRK VLV | 1 | 2203- | NMR81 | |||
| 184 | I8-97311 447-0 | COVER; BRKT | 1 | 2203- | NLR85 | |||
| 142 | I8-97177 311-0 | CLEVIS; EXH BRK VLV | 1 | 2203- | ALL | |||
| 146 | I7-05108 010-A | NUT; EXH BRK VLV | 2 | 2203- | ALL | M8 FLANGE | ||
| 146 | I7-05108 010-A | NUT; EXH BRK VLV | 2 | 2203- | ALL | M8 FLANGE | ||
| 139 | I8-94328 234-0 | GASKET; EXH BRK VLV | 1 | 2203- | ALL | |||
| 137 | I8-98043 596-0 | CHAMBER; POWER | 1 | 2203- | NLR85 | |||
| 141 | I9-09111 508-A | NUT; CLEVIS,EXH BRK VLV | 1 | 2203- | NLR85 | |||
| 146 | I0-91180 208-0 | NUT; EXH BRK VLV | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 137 | I8-98368 749-0 | CHAMBER; POWER | 1 | 2203- | NMR81 | |||
| 139 | I8-94328 234-0 | GASKET; EXH BRK VLV | 1 | 2203- | ALL | |||
| 143 | I8-94311 452-0 | PIN; EXH BRK VLV | 1 | 2203- | ALL | |||
| 138 | I8-94311 446-0 | BEARING; EXH BRK VLV | 1 | 2203- | NMR81 | |||
| 141 | I9-09111 508-A | NUT; CLEVIS,EXH BRK VLV | 1 | 2203- | NMR81 | |||
| 184 | I8-98070 514-0 | COVER; BRKT | 1 | 2203- | NMR81 |
