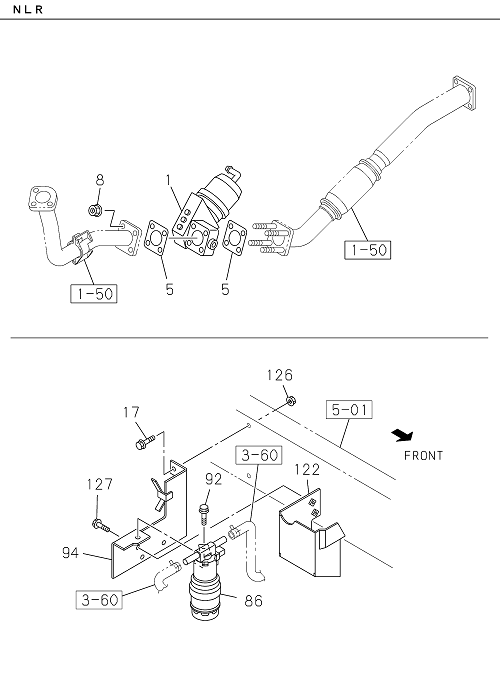

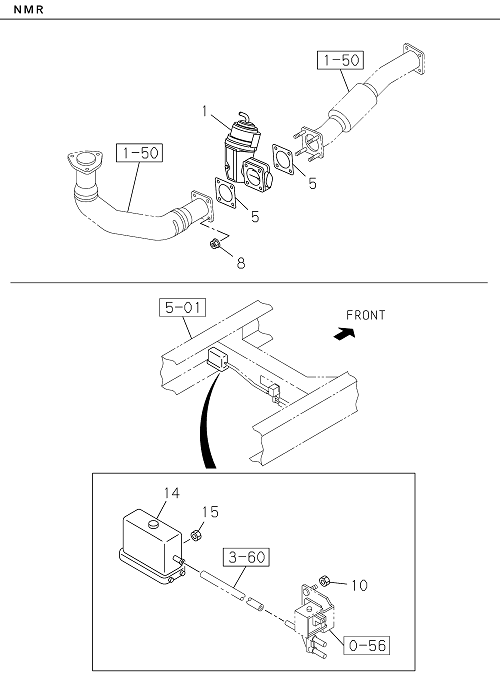

1-56 | EXHAUST BRAKE SYSTEM
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97515 082-0 | BRAKE UNIT; EXH | 1 | 2203- | NMR81 | |||
| 005 | I8-97373 108-0 | GASKET; EXH BRAKE UNIT | 2 | 2203- | ALL | ID=64 | ||
| 094 | I8-98019 527-4 | BRACKET; MAG VLV,EXH BRAKE | 1 | 2203- | NLR85 | |||
| 005 | I8-94328 354-A | GASKET; EXH BRAKE UNIT | 2 | 2203- | NLR85 | ID=54 | ||
| 126 | I0-91180 110-0 | NUT; BRKT | 2 | 2203- | NLR85 | M10 FLANGE | ||
| 127 | I0-28050 612-0 | BOLT; PROTECTOR | 2 | 2203- | NLR85 | M6X12 FLANGE | ||
| 015 | I7-05108 010-A | NUT; AIR FILTER | 2 | 2203- | ALL | M8 FLANGE | ||
| 010 | I7-05108 010-A | NUT; BRKT,EXH BRAKE | 2 | 2203- | ALL | M8 FLANGE | ||
| 014 | I8-97033 888-0 | FILTER; AIR,EXH BRAKE | 1 | 2203- | NMR81 | |||
| 001 | I8-98033 200-1 | BRAKE UNIT; EXH | 1 | 2203- | NLR85 | |||
| 126 | I0-91180 110-0 | NUT; BRKT | 2 | 2203- | NLR85 | M10 FLANGE | ||
| 008 | I8-97581 234-0 | NUT; EXH BRAKE UNIT FIX | 4 | 2203- | ALL | M8 W/LK WASHER | ||
| 086 | I8-98043 344-0 | VALVE; MAG,EXH BRK | 1 | 2203- | NLR85 | |||
| 094 | I8-98019 527-4 | BRACKET; MAG VLV,EXH BRAKE | 1 | 2203- | NLR85 | |||
| 017 | I0-28651 030-0 | BOLT; BRKT | 2 | 2203- | NLR85 | M10X30 FLANGE | ||
| 127 | I0-28050 612-0 | BOLT; PROTECTOR | 2 | 2203- | NLR85 | M6X12 FLANGE | ||
| 014 | I8-97033 888-0 | FILTER; AIR,EXH BRAKE | 1 | 2203- | NMR81 | |||
| 122 | I8-98022 052-0 | PROTECTOR; MAG VLV | 1 | 2203- | NLR85 | |||
| 015 | I7-05108 010-A | NUT; AIR FILTER | 2 | 2203- | ALL | M8 FLANGE | ||
| 092 | I0-28650 825-0 | BOLT; MAG VLV | 1 | 2203- | NLR85 | M8X25 FLANGE | ||
| 010 | I7-05108 010-A | NUT; BRKT,EXH BRAKE | 2 | 2203- | ALL | M8 FLANGE | ||
| 001 | I8-97515 082-0 | BRAKE UNIT; EXH | 1 | 2203- | NMR81 | |||
| 005 | I8-94328 354-A | GASKET; EXH BRAKE UNIT | 2 | 2203- | NLR85 | ID=54 | ||
| 017 | I0-28651 030-0 | BOLT; BRKT | 2 | 2203- | NLR85 | M10X30 FLANGE | ||
| 086 | I8-98043 344-0 | VALVE; MAG,EXH BRK | 1 | 2203- | NLR85 | |||
| 001 | I8-98033 200-1 | BRAKE UNIT; EXH | 1 | 2203- | NLR85 | |||
| 008 | I8-97581 234-0 | NUT; EXH BRAKE UNIT FIX | 4 | 2203- | ALL | M8 W/LK WASHER | ||
| 122 | I8-98022 052-0 | PROTECTOR; MAG VLV | 1 | 2203- | NLR85 | |||
| 005 | I8-97373 108-0 | GASKET; EXH BRAKE UNIT | 2 | 2203- | ALL | ID=64 | ||
| 092 | I0-28650 825-0 | BOLT; MAG VLV | 1 | 2203- | NLR85 | M8X25 FLANGE |
