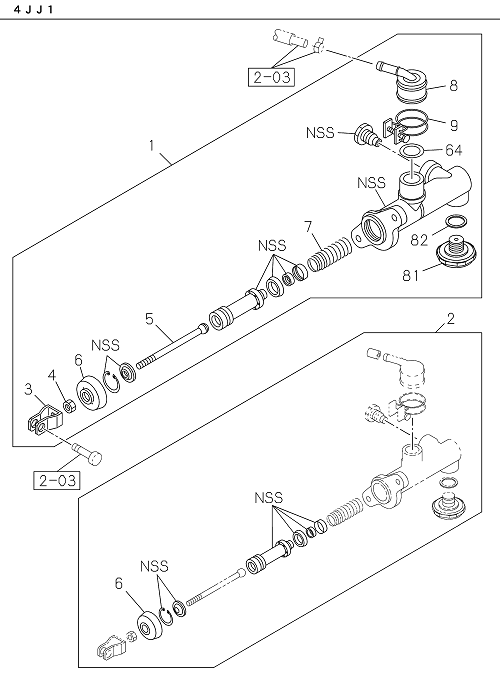

2-08 | CLUTCH MASTER CYLINDER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 008 | I8-97163 191-0 | CONNECTOR; PIPE,CLU M/CYL | 1 | 2203- | ALL | |||
| 082 | I8-97191 396-0 | GASKET; DAMPER | 1 | 2203- | NLR85 | |||
| 002 | I6-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | (IADG) | ||
| 005 | I8-97167 768-0 | ROD; PUSH,CLU M/CYL | 1 | 2203- | ALL | |||
| 002 | I5-87832 221-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | |||
| 001 | I8-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NMR81 | |||
| 004 | I0-91111 508-A | NUT; JAW JOINT | 1 | 2203- | ALL | M8 | ||
| 003 | I8-97167 770-0 | JOINT; JAW,CLU M/CYL | 1 | 2203- | ALL | |||
| 009 | I8-97167 773-0 | CLAMP; PIPE CONNECTOR,CLU M/CYL | 1 | 2203- | ALL | |||
| 001 | I8-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NMR81 | |||
| 006 | I8-94412 200-0 | BOOT; CLU M/CYL | 1 | 2203- | ALL | |||
| 007 | I8-97167 780-0 | SPRING ASM; CLU M/CYL | 1 | 2203- | ALL | |||
| 002 | I6-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | (IADG) | ||
| 004 | I0-91111 508-A | NUT; JAW JOINT | 1 | 2203- | ALL | M8 | ||
| 002 | I5-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | |||
| 001 | I6-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NMR81 | (IADG) | ||
| 002 | I5-87832 221-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | |||
| 003 | I8-97167 770-0 | JOINT; JAW,CLU M/CYL | 1 | 2203- | ALL | |||
| 007 | I8-97167 780-0 | SPRING ASM; CLU M/CYL | 1 | 2203- | ALL | |||
| 064 | I8-97167 767-0 | GASKET; CONNECTOR | 1 | 2203- | ALL | |||
| 001 | I8-98117 641-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NLR85 | |||
| 064 | I8-97167 767-0 | GASKET; CONNECTOR | 1 | 2203- | ALL | |||
| 081 | I8-97190 913-0 | DAMPER; MASTER CYL | 1 | 2203- | NLR85 | |||
| 081 | I8-97190 913-0 | DAMPER; MASTER CYL | 1 | 2203- | NLR85 | |||
| 002 | I5-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | |||
| 003 | I8-97167 770-0 | JOINT; JAW,CLU M/CYL | 1 | 2203- | ALL | |||
| 001 | I8-98117 641-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NLR85 | |||
| 082 | I8-97191 396-0 | GASKET; DAMPER | 1 | 2203- | NLR85 | |||
| 008 | I8-97163 191-0 | CONNECTOR; PIPE,CLU M/CYL | 1 | 2203- | ALL | |||
| 001 | I8-98117 641-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NLR85 | |||
| 001 | I6-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NMR81 | (IADG) | ||
| 005 | I8-97167 768-0 | ROD; PUSH,CLU M/CYL | 1 | 2203- | ALL | |||
| 005 | I8-97167 768-0 | ROD; PUSH,CLU M/CYL | 1 | 2203- | ALL | |||
| 008 | I8-97163 191-0 | CONNECTOR; PIPE,CLU M/CYL | 1 | 2203- | ALL | |||
| 081 | I8-97190 913-0 | DAMPER; MASTER CYL | 1 | 2203- | NLR85 | |||
| 001 | I6-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NMR81 | (IADG) | ||
| 082 | I8-97191 396-0 | GASKET; DAMPER | 1 | 2203- | NLR85 | |||
| 002 | I6-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | (IADG) | ||
| 064 | I8-97167 767-0 | GASKET; CONNECTOR | 1 | 2203- | ALL | |||
| 006 | I8-94412 200-0 | BOOT; CLU M/CYL | 1 | 2203- | ALL | |||
| 009 | I8-97167 773-0 | CLAMP; PIPE CONNECTOR,CLU M/CYL | 1 | 2203- | ALL | |||
| 004 | I0-91111 508-A | NUT; JAW JOINT | 1 | 2203- | ALL | M8 | ||
| 007 | I8-97167 780-0 | SPRING ASM; CLU M/CYL | 1 | 2203- | ALL | |||
| 009 | I8-97167 773-0 | CLAMP; PIPE CONNECTOR,CLU M/CYL | 1 | 2203- | ALL | |||
| 001 | I8-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | NMR81 | |||
| 002 | I5-87832 221-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | |||
| 002 | I5-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | ALL | |||
| 006 | I8-94412 200-0 | BOOT; CLU M/CYL | 1 | 2203- | ALL |
