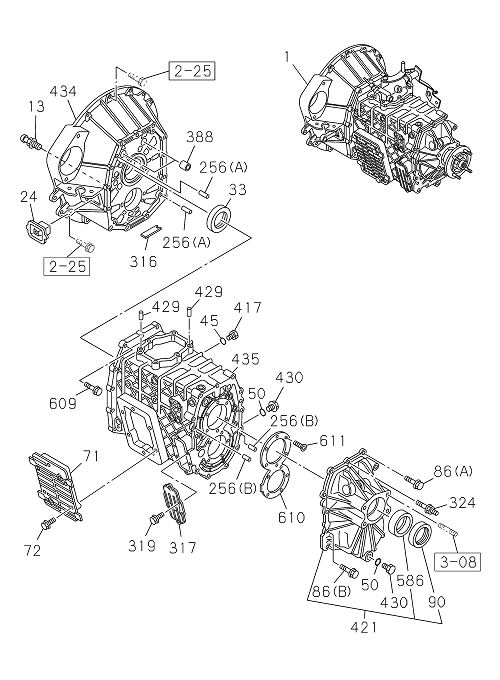

2-20 | MANUAL TANSMISSION ASM AND CASE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 434 | I8-97237 099-6 | HOUSING; CLU | 1 | 2203- | ALL | |||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 2 | 2203- | ALL | ID=17 | ||
| 611 | I8-97365 354-0 | SCREW | 11 | 2203- | ALL | M10X27 HEXALOBULAR | ||
| 013 | I8-97255 385-1 | SUPPORT; SHIFT FORK | 1 | 2203- | NMR81 | |||
| 421 | I8-98020 028-0 | COVER; RR,TRANS | 1 | 2203- | ALL | |||
| 090 | I6-97253 552-0 | SEAL; OIL,RR COVER | 1 | 2203- | ALL | (IADG) | ||
| 001 | I8-98067 656-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | NLR85 | |||
| 086 | I0-28151 040-0 | BOLT; RR COVER | 8 | 2203- | ALL | (A) M10X40 FLANGE | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | ALL | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 2 | 2203- | ALL | M20X12 W/MAGNET | ||
| 086 | I0-28151 040-0 | BOLT; RR COVER | 8 | 2203- | ALL | (A) M10X40 FLANGE | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | ALL | |||
| 421 | I8-98020 028-0 | COVER; RR,TRANS | 1 | 2203- | ALL | |||
| 001 | I8-98067 656-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | NLR85 | |||
| 090 | I8-97253 552-1 | SEAL; OIL,RR COVER | 1 | 2203- | ALL | |||
| 013 | I8-97255 385-1 | SUPPORT; SHIFT FORK | 1 | 2203- | NMR81 | |||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2203- | ALL | OD=10 L=20 | ||
| 086 | I8-97365 377-0 | BOLT; RR COVER | 2 | 2203- | ALL | (B) M10X40 FLANGE | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2203- | ALL | |||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 2203- | ALL | (B) OD=6 L=12 | ||
| 388 | I8-97241 326-2 | BUSHING; CLU HSG | 2 | 2203- | ALL | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 2 | 2203- | ALL | M20X12 W/MAGNET | ||
| 013 | I8-97255 384-1 | SUPPORT; SHIFT FORK | 1 | 2203- | NLR85 | |||
| 033 | I6-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | ALL | (IADG) | ||
| 610 | I8-97241 315-1 | RETAINER; BRG | 1 | 2203- | ALL | |||
| 319 | I0-28050 820-0 | BOLT; COVER | 6 | 2203- | ALL | M8X20 FLANGE | ||
| 001 | I8-97499 680-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | NMR81 | |||
| 086 | I8-97365 377-0 | BOLT; RR COVER | 2 | 2203- | ALL | (B) M10X40 FLANGE | ||
| 434 | I8-97237 099-6 | HOUSING; CLU | 1 | 2203- | ALL | |||
| 072 | I8-98014 142-0 | BOLT; SIDE COVER | 6 | 2203- | ALL | M10X20 FLANGE | ||
| 610 | I8-97241 315-1 | RETAINER; BRG | 1 | 2203- | ALL | |||
| 001 | I8-97499 680-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | NMR81 | |||
| 388 | I8-97241 326-2 | BUSHING; CLU HSG | 2 | 2203- | ALL | |||
| 611 | I8-97365 354-0 | SCREW | 11 | 2203- | ALL | M10X27 HEXALOBULAR | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2203- | ALL | |||
| 033 | I6-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | ALL | (IADG) | ||
| 256 | I8-97135 423-0 | PIN; KNOCK | 2 | 2203- | ALL | (A) OD=10 L=20 | ||
| 071 | I8-97252 625-0 | COVER; SIDE,TRANS CASE | 1 | 2203- | ALL | |||
| 071 | I8-97252 625-0 | COVER; SIDE,TRANS CASE | 1 | 2203- | ALL | |||
| 013 | I8-97255 384-1 | SUPPORT; SHIFT FORK | 1 | 2203- | NLR85 | |||
| 072 | I8-98014 142-0 | BOLT; SIDE COVER | 6 | 2203- | ALL | M10X20 FLANGE | ||
| 024 | I8-97255 201-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | ALL | |||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2203- | ALL | ID=17 | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 2203- | ALL | (B) OD=6 L=12 | ||
| 033 | I8-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | ALL | |||
| 324 | I8-97365 379-0 | STUD; RR COVER | 3 | 2203- | ALL | M10X15,M10X40 L=65 | ||
| 586 | I8-97253 109-0 | BEARING; NEEDLE | 1 | 2203- | ALL | |||
| 609 | I0-28151 040-0 | BOLT; HSG TO CASE | 13 | 2203- | ALL | M10X40 FLANGE | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2203- | ALL | OD=10 L=20 | ||
| 256 | I8-97135 423-0 | PIN; KNOCK | 2 | 2203- | ALL | (A) OD=10 L=20 | ||
| 586 | I8-97253 109-0 | BEARING; NEEDLE | 1 | 2203- | ALL | |||
| 324 | I8-97365 379-0 | STUD; RR COVER | 3 | 2203- | ALL | M10X15,M10X40 L=65 | ||
| 090 | I8-97253 552-1 | SEAL; OIL,RR COVER | 1 | 2203- | ALL | |||
| 317 | I8-97252 626-0 | COVER; CASE | 1 | 2203- | ALL | |||
| 024 | I8-97255 201-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | ALL | |||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2203- | ALL | ID=17 | ||
| 319 | I0-28050 820-0 | BOLT; COVER | 6 | 2203- | ALL | M8X20 FLANGE | ||
| 317 | I8-97252 626-0 | COVER; CASE | 1 | 2203- | ALL | |||
| 435 | I8-97379 374-1 | CASE; TRANS | 1 | 2203- | ALL | |||
| 090 | I6-97253 552-0 | SEAL; OIL,RR COVER | 1 | 2203- | ALL | (IADG) | ||
| 033 | I8-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | ALL | |||
| 435 | I8-97379 374-1 | CASE; TRANS | 1 | 2203- | ALL | |||
| 609 | I0-28151 040-0 | BOLT; HSG TO CASE | 13 | 2203- | ALL | M10X40 FLANGE |
