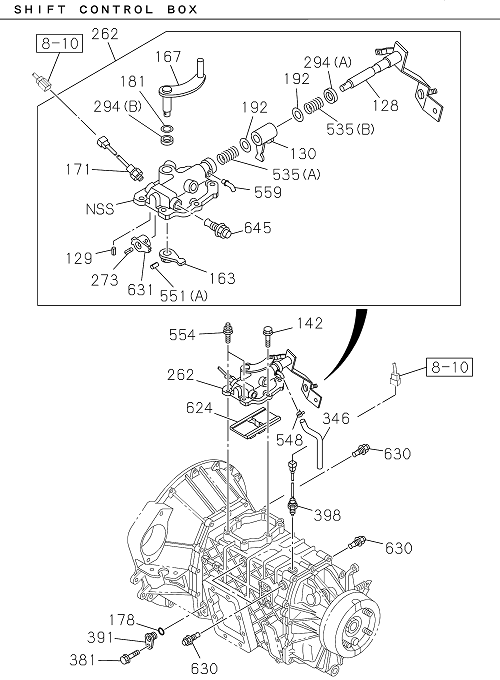

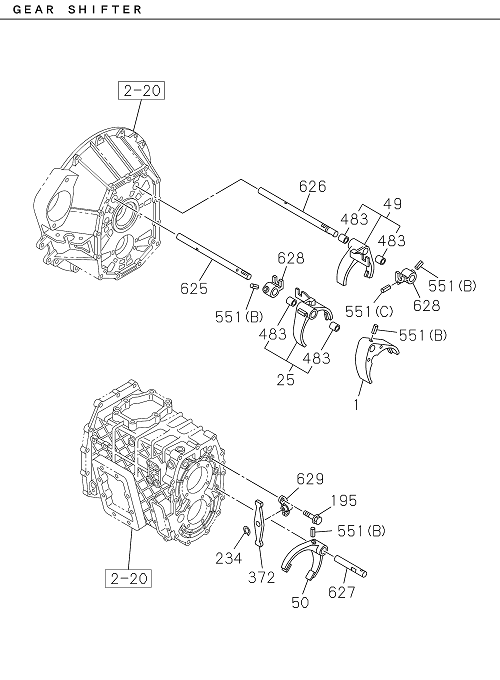

2-30 | GEAR SHIFTER AND QUADRANT BOX
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 398 | I8-97265 853-0 | SWITCH; REV LAMP | 1 | 2205- | ALL | |||
| 381 | I0-28650 616-0 | BOLT | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 631 | I8-97305 666-0 | STOPPER; SPRING | 1 | 2203- | ALL | |||
| 631 | I8-97305 666-0 | STOPPER; SPRING | 1 | 2203- | ALL | |||
| 626 | I8-97366 024-1 | ROD; GEAR SHIFT,4TH,5TH & 6TH | 1 | 2203- | ALL | |||
| 025 | I8-98255 926-1 | ARM; SHIFT,2ND & 3RD | 1 | 2203- | ALL | |||
| 163 | I8-97305 663-0 | LEVER; SELECT,INTERNAL | 1 | 2203- | ALL | |||
| 346 | I8-97309 855-0 | HOSE; AIR | 1 | 2203- | ALL | |||
| 294 | I8-97363 225-0 | SEAL; OIL,SELECT | 1 | 2203- | ALL | (A) | ||
| 398 | I8-98256 418-0 | SWITCH; REV LAMP | 1 | 2203-2204 | ALL | |||
| 050 | I8-97241 325-1 | ARM; SHIFT,6TH | 1 | 2203- | ALL | |||
| 181 | I8-97367 327-0 | WASHER; PL,SELECT LEVER | 1 | 2203- | ALL | |||
| 273 | I8-97103 142-0 | PIN; SPR,STOPPER | 1 | 2203- | ALL | D=4.2 L=25 | ||
| 128 | I8-97363 226-0 | LEVER; SHIFT,EXTERNAL | 1 | 2203- | ALL | |||
| 630 | I8-98019 536-0 | DETENT ASM | 4 | 2203- | ALL | |||
| 178 | I9-09567 113-0 | GASKET; PLUG | 1 | 2203- | ALL | |||
| 398 | I8-98256 418-0 | SWITCH; REV LAMP | 1 | 2203-2204 | ALL | |||
| 049 | I8-97362 732-1 | ARM; SHIFT,4TH & 5TH | 1 | 2203- | ALL | |||
| 629 | I8-97241 345-1 | BRIDGE; LEVER | 1 | 2203- | ALL | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 2203- | ALL | |||
| 262 | I8-98240 992-2 | BOX ASM; SHIFT CONT | 1 | 2203- | NMR81 | |||
| 398 | I8-97265 853-0 | SWITCH; REV LAMP | 1 | 2205- | ALL | |||
| 163 | I8-97305 663-0 | LEVER; SELECT,INTERNAL | 1 | 2203- | ALL | |||
| 628 | I8-97241 327-1 | BLOCK; SHIFT,LOW,REV & 6TH | 2 | 2203- | ALL | |||
| 391 | I8-97300 273-1 | PLUG; SW HOLE | 1 | 2203- | ALL | |||
| 551 | I8-97011 596-2 | PIN; SPRING | 5 | 2203- | ALL | (B) L=32 | ||
| 381 | I0-28650 616-0 | BOLT | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 627 | I8-98119 293-0 | ROD; GEAR SHIFT,6TH SUB | 1 | 2203- | ALL | |||
| 262 | I8-98240 993-2 | BOX ASM; SHIFT CONT | 1 | 2203- | NLR85 | |||
| 346 | I8-97309 855-0 | HOSE; AIR | 1 | 2203- | ALL | |||
| 192 | I8-97305 661-0 | WASHER; PL | 2 | 2203- | ALL | |||
| 050 | I8-97241 325-1 | ARM; SHIFT,6TH | 1 | 2203- | ALL | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 2203- | ALL | M8X22 FLANGE | ||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 2203- | ALL | |||
| 130 | I8-97306 647-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | ALL | |||
| 130 | I8-97306 647-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | ALL | |||
| 630 | I8-98019 536-0 | DETENT ASM | 4 | 2203- | ALL | |||
| 626 | I8-97366 024-1 | ROD; GEAR SHIFT,4TH,5TH & 6TH | 1 | 2203- | ALL | |||
| 167 | I8-98039 436-0 | LEVER; SELECT,EXTERNAL | 1 | 2203- | NLR85 | |||
| 049 | I8-97362 732-1 | ARM; SHIFT,4TH & 5TH | 1 | 2203- | ALL | |||
| 195 | I8-97365 375-0 | BOLT | 2 | 2203- | ALL | M10X28 FLANGE REAMER | ||
| 294 | I8-97305 662-0 | SEAL; OIL,SELECT | 1 | 2203- | ALL | (B) | ||
| 624 | I8-97241 317-3 | PLATE; INTER LOCK | 1 | 2203- | ALL | |||
| 391 | I8-97300 273-1 | PLUG; SW HOLE | 1 | 2203- | ALL | |||
| 178 | I9-09567 113-0 | GASKET; PLUG | 1 | 2203- | ALL | |||
| 551 | I1-09748 032-0 | PIN; SPRING | 1 | 2203- | ALL | (A) L=25 OD=5 | ||
| 551 | I1-09748 032-0 | PIN; SPRING | 1 | 2203- | ALL | (A) L=25 OD=5 | ||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 2203- | ALL | M8X22 FLANGE | ||
| 262 | I8-98240 992-2 | BOX ASM; SHIFT CONT | 1 | 2203- | NMR81 | |||
| 551 | I8-97011 596-2 | PIN; SPRING | 5 | 2203- | ALL | (B) L=32 | ||
| 181 | I8-97367 327-0 | WASHER; PL,SELECT LEVER | 1 | 2203- | ALL | |||
| 559 | I8-97358 318-0 | PIPE; BREATHER | 1 | 2203- | ALL | |||
| 645 | I8-98019 536-0 | DETENT ASM | 1 | 2203- | ALL | |||
| 535 | I8-97305 660-0 | SPRING; LEVER | 1 | 2203- | ALL | (B) | ||
| 483 | I8-97241 326-2 | BUSHING; SHIFT ARM | 4 | 2203- | ALL | |||
| 548 | I8-97031 674-0 | CLIP; HOSE | 1 | 2203- | ALL | |||
| 167 | I8-98039 434-0 | LEVER; SELECT,EXTERNAL | 1 | 2203- | NMR81 | |||
| 551 | I8-97241 340-0 | PIN; SPRING | 1 | 2203- | ALL | (C) L=20 | ||
| 128 | I8-97363 226-0 | LEVER; SHIFT,EXTERNAL | 1 | 2203- | ALL | |||
| 372 | I8-97241 343-0 | LEVER; RELAY,6TH | 1 | 2203- | ALL | |||
| 551 | I8-97241 340-0 | PIN; SPRING | 1 | 2203- | ALL | (C) L=20 | ||
| 625 | I8-97362 741-0 | ROD; GEAR SHIFT,LOW,REV,2ND & 3RD | 1 | 2203- | ALL | |||
| 025 | I8-98255 926-1 | ARM; SHIFT,2ND & 3RD | 1 | 2203- | ALL | |||
| 548 | I8-97031 674-0 | CLIP; HOSE | 1 | 2203- | ALL | |||
| 001 | I8-97241 320-2 | ARM; SHIFT,1ST & REV | 1 | 2203- | ALL | |||
| 554 | I8-97365 378-0 | STUD; CONT BOX | 2 | 2203- | ALL | M8X15,M8X25 L=49 | ||
| 129 | I1-09748 031-0 | PIN; SPR,SHIFT | 1 | 2203- | ALL | L=30 OD=4 | ||
| 627 | I8-98119 293-0 | ROD; GEAR SHIFT,6TH SUB | 1 | 2203- | ALL | |||
| 628 | I8-97241 327-1 | BLOCK; SHIFT,LOW,REV & 6TH | 2 | 2203- | ALL | |||
| 234 | I0-91800 618-0 | RING; SNAP | 1 | 2203- | ALL | ID=16.5 | ||
| 129 | I1-09748 031-0 | PIN; SPR,SHIFT | 1 | 2203- | ALL | L=30 OD=4 | ||
| 372 | I8-97241 343-0 | LEVER; RELAY,6TH | 1 | 2203- | ALL | |||
| 294 | I8-97363 225-0 | SEAL; OIL,SELECT | 1 | 2203- | ALL | (A) | ||
| 535 | I8-97305 659-0 | SPRING; LEVER | 1 | 2203- | ALL | (A) | ||
| 234 | I0-91800 618-0 | RING; SNAP | 1 | 2203- | ALL | ID=16.5 | ||
| 167 | I8-98039 434-0 | LEVER; SELECT,EXTERNAL | 1 | 2203- | NMR81 | |||
| 273 | I8-97103 142-0 | PIN; SPR,STOPPER | 1 | 2203- | ALL | D=4.2 L=25 | ||
| 624 | I8-97241 317-3 | PLATE; INTER LOCK | 1 | 2203- | ALL | |||
| 535 | I8-97305 660-0 | SPRING; LEVER | 1 | 2203- | ALL | (B) | ||
| 195 | I8-97365 375-0 | BOLT | 2 | 2203- | ALL | M10X28 FLANGE REAMER | ||
| 483 | I8-97241 326-2 | BUSHING; SHIFT ARM | 4 | 2203- | ALL | |||
| 001 | I8-97241 320-2 | ARM; SHIFT,1ST & REV | 1 | 2203- | ALL | |||
| 559 | I8-97358 318-0 | PIPE; BREATHER | 1 | 2203- | ALL | |||
| 629 | I8-97241 345-1 | BRIDGE; LEVER | 1 | 2203- | ALL | |||
| 645 | I8-98019 536-0 | DETENT ASM | 1 | 2203- | ALL | |||
| 625 | I8-97362 741-0 | ROD; GEAR SHIFT,LOW,REV,2ND & 3RD | 1 | 2203- | ALL | |||
| 262 | I8-98240 993-2 | BOX ASM; SHIFT CONT | 1 | 2203- | NLR85 | |||
| 554 | I8-97365 378-0 | STUD; CONT BOX | 2 | 2203- | ALL | M8X15,M8X25 L=49 | ||
| 192 | I8-97305 661-0 | WASHER; PL | 2 | 2203- | ALL | |||
| 167 | I8-98039 436-0 | LEVER; SELECT,EXTERNAL | 1 | 2203- | NLR85 | |||
| 535 | I8-97305 659-0 | SPRING; LEVER | 1 | 2203- | ALL | (A) | ||
| 294 | I8-97305 662-0 | SEAL; OIL,SELECT | 1 | 2203- | ALL | (B) |
