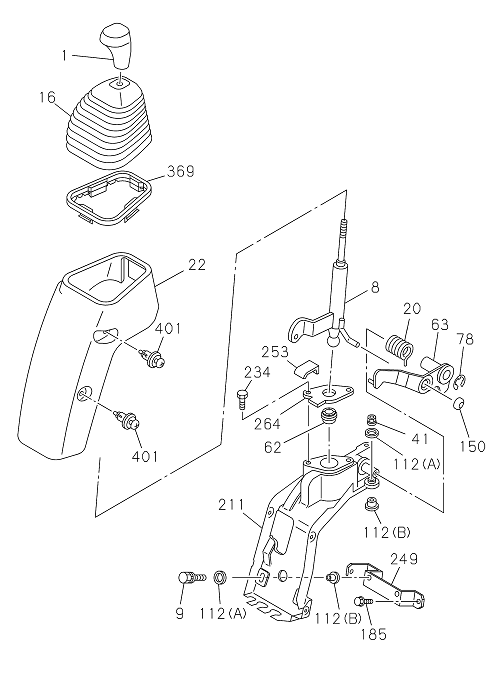

2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 211 | I8-97204 505-1 | BRACKET; CHANGE LEVER | 1 | 2203- | ALL | |||
| 211 | I8-97204 505-1 | BRACKET; CHANGE LEVER | 1 | 2203- | ALL | |||
| 185 | I7-04508 025-A | BOLT; BRKT,COVER | 2 | 2203- | ALL | M8X20 FLANGE | ||
| 264 | I8-97204 511-0 | PLATE; COVER | 1 | 2203- | ALL | |||
| 078 | I0-91805 510-0 | RING; SNAP,CHANGE LEVER | 1 | 2203- | ALL | ID=10 | ||
| 253 | I8-97204 510-0 | STOPPER; CHANGE LEVER | 1 | 2203- | ALL | |||
| 016 | I8-98035 063-0 | BOOT; CHANGE LEVER | 1 | 2203- | ALL | |||
| 020 | I8-97204 514-1 | SPRING; CHANGE LEVER | 1 | 2203- | ALL | |||
| 249 | I8-97387 767-0 | BRACKET; COVER | 1 | 2203- | ALL | |||
| 112 | I8-97091 426-0 | RUBBER; CUSHION | 4 | 2203- | ALL | (A) | ||
| 401 | I8-97406 179-0 | CLIP; COVER | 4 | 2203- | ALL | GRAY | ||
| 008 | I8-97204 507-0 | LEVER; CHANGE | 1 | 2203- | ALL | |||
| 041 | I8-97329 625-0 | NUT; CHANGE LEVER | 2 | 2203- | ALL | M8 W/DISHED WASHER | ||
| 112 | I8-97091 427-0 | RUBBER; CUSHION | 4 | 2203- | ALL | (B) | ||
| 022 | I8-97408 726-1 | COVER; DUST,CHANGE LEVER | 1 | 2203- | ALL | GRAY | ||
| 369 | I8-98032 213-1 | RETAINER; REINF | 1 | 2203- | ALL | |||
| 369 | I8-98032 213-1 | RETAINER; REINF | 1 | 2203- | ALL | |||
| 150 | I8-97049 147-0 | BALL; DETENT,CONT LEVER | 1 | 2203- | ALL | |||
| 264 | I8-97204 511-0 | PLATE; COVER | 1 | 2203- | ALL | |||
| 001 | I8-97196 287-1 | KNOB; CHANGE LEVER | 1 | 2203- | ALL | BLACK | ||
| 112 | I8-97091 426-0 | RUBBER; CUSHION | 4 | 2203- | ALL | (A) | ||
| 020 | I8-97204 514-1 | SPRING; CHANGE LEVER | 1 | 2203- | ALL | |||
| 041 | I8-97329 625-0 | NUT; CHANGE LEVER | 2 | 2203- | ALL | M8 W/DISHED WASHER | ||
| 001 | I8-97196 287-1 | KNOB; CHANGE LEVER | 1 | 2203- | ALL | BLACK | ||
| 249 | I8-97387 767-0 | BRACKET; COVER | 1 | 2203- | ALL | |||
| 008 | I8-97204 507-0 | LEVER; CHANGE | 1 | 2203- | ALL | |||
| 063 | I8-97163 768-0 | LEVER; RELAY,SELECT | 1 | 2203- | ALL | |||
| 009 | I0-50640 828-0 | BOLT; CHANGE LEVER | 2 | 2203- | ALL | M8X28 W/LK&PL WASHER | ||
| 016 | I8-98035 063-0 | BOOT; CHANGE LEVER | 1 | 2203- | ALL | |||
| 009 | I0-50640 828-0 | BOLT; CHANGE LEVER | 2 | 2203- | ALL | M8X28 W/LK&PL WASHER | ||
| 234 | I1-33739 842-0 | BOLT; BRKT | 2 | 2203- | ALL | M6X12 FLANGE | ||
| 062 | I8-97011 895-1 | SEAT; BALL,CHANGE LEVER | 1 | 2203- | ALL | |||
| 112 | I8-97091 427-0 | RUBBER; CUSHION | 4 | 2203- | ALL | (B) | ||
| 063 | I8-97163 768-0 | LEVER; RELAY,SELECT | 1 | 2203- | ALL | |||
| 062 | I8-97011 895-1 | SEAT; BALL,CHANGE LEVER | 1 | 2203- | ALL | |||
| 234 | I1-33739 842-0 | BOLT; BRKT | 2 | 2203- | ALL | M6X12 FLANGE | ||
| 253 | I8-97204 510-0 | STOPPER; CHANGE LEVER | 1 | 2203- | ALL | |||
| 022 | I8-97408 726-1 | COVER; DUST,CHANGE LEVER | 1 | 2203- | ALL | GRAY | ||
| 185 | I7-04508 025-A | BOLT; BRKT,COVER | 2 | 2203- | ALL | M8X20 FLANGE | ||
| 150 | I8-97049 147-0 | BALL; DETENT,CONT LEVER | 1 | 2203- | ALL | |||
| 078 | I0-91805 510-0 | RING; SNAP,CHANGE LEVER | 1 | 2203- | ALL | ID=10 | ||
| 401 | I8-97406 179-0 | CLIP; COVER | 4 | 2203- | ALL | GRAY |
