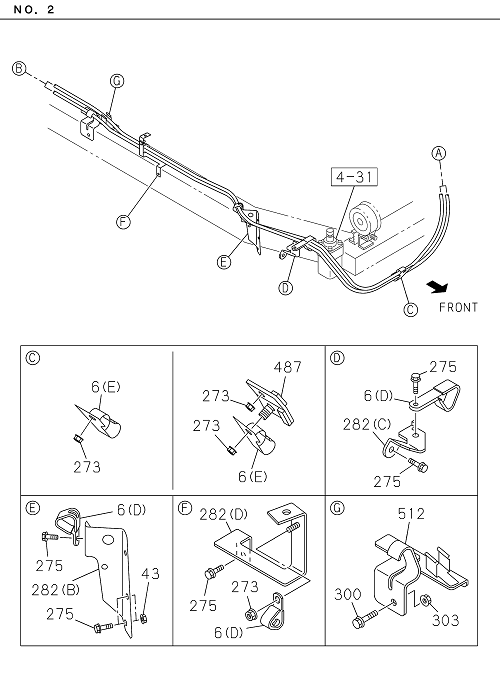

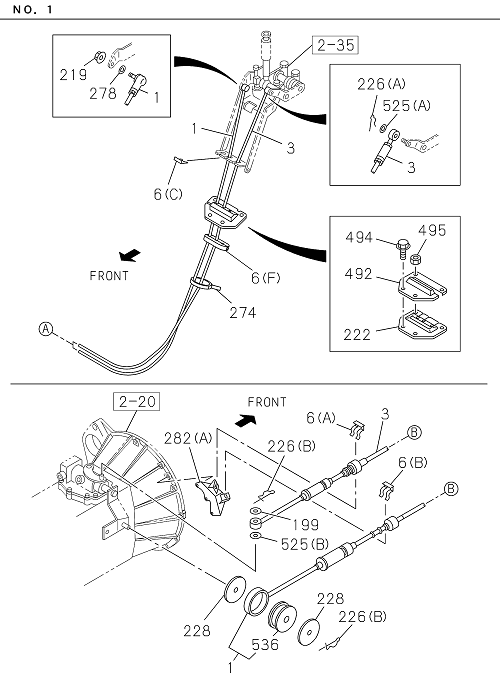

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 525 | I8-94242 854-0 | WASHER; SHIFT CABLE | 1 | 2203- | ALL | (B) ID=8.4 OD=14 | ||
| 512 | I8-97656 189-0 | GUIDE; CABLE,GEAR CONT | 1 | 2203- | NLR85 | |||
| 275 | I0-28650 825-0 | BOLT; CONT CABLE CLIP | 1 | 2203- | ALL | M8X25 FLANGE | ||
| 006 | I8-98023 622-0 | CLIP; CABLE | 1 | 2203- | ALL | (E) | ||
| 006 | I1-09701 209-1 | CLIP; CABLE | 1 | 2203- | ALL | (B) ID=22.2 | ||
| 006 | I8-97011 448-0 | CLIP; CABLE | 2 | 2203- | ALL | (C) | ||
| 006 | I8-97093 491-1 | CLIP; CABLE | 1 | 2203- | NLR85 | (F) NLR85-B; NLR85-BL | ||
| 226 | I8-94157 841-0 | PIN; SHIFT CABLE | 1 | 2203- | ALL | (A) L=27.7 | ||
| 001 | I8-97649 878-A | CABLE; SHIFT,TRANS CONT | 1 | 2203- | NLR85 | |||
| 219 | I8-94363 045-0 | NUT; FLANGE,SHAFT CABLE | 1 | 2203- | ALL | M8 T=8.0 | ||
| 282 | I8-98001 270-0 | BRACKET; TRANS SIDE | 1 | 2203- | NLR85 | (D) | ||
| 495 | I0-91180 106-0 | NUT; GROMMET | 2 | 2203- | ALL | M6 FLANGE | ||
| 282 | I8-97311 441-1 | BRACKET; TRANS SIDE | 1 | 2203- | NMR81 | (A) | ||
| 494 | I0-28450 620-0 | BOLT; GROMMET | 2 | 2203- | ALL | M6X20 FLANGE | ||
| 494 | I0-28450 620-0 | BOLT; GROMMET | 2 | 2203- | ALL | M6X20 FLANGE | ||
| 228 | I8-97182 975-0 | WASHER; PL,SHIFT CABLE | 2 | 2203- | ALL | ID=8.2 OD=40 | ||
| 282 | I8-98034 115-0 | BRACKET; TRANS SIDE | 1 | 2203- | ALL | (C) | ||
| 199 | I0-91610 508-0 | WASHER; PL,SELECT | 1 | 2203- | ALL | ID=8.4 OD=16 | ||
| 275 | I0-28050 816-0 | BOLT; CONT CABLE CLIP | 1 | 2203- | ALL | M8X16 FLANGE | ||
| 303 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 282 | I8-98001 270-0 | BRACKET; TRANS SIDE | 1 | 2203- | NLR85 | (D) | ||
| 278 | I0-91541 208-0 | WASHER; LK,SHIFT WIRE | 1 | 2203- | ALL | ID=8.4 TOOTH LK INT | ||
| 006 | I8-97036 333-1 | CLIP; CABLE | 3 | 2203- | ALL | (D) | ||
| 274 | I5-09707 031-1 | CLIP; CONT CABLE | 1 | 2203- | ALL | L=140 | ||
| 006 | I8-97011 448-0 | CLIP; CABLE | 2 | 2203- | ALL | (C) | ||
| 274 | I5-09707 031-1 | CLIP; CONT CABLE | 1 | 2203- | ALL | L=140 | ||
| 487 | I8-98296 447-0 | BRACKET; CONT CABLE | 1 | 2203- | NMR81 | |||
| 003 | I8-97649 879-A | CABLE; SELECT,TRANS CONT | 1 | 2203- | NLR85 | |||
| 043 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | ALL | M8 FLANGE | ||
| 006 | I8-97093 491-1 | CLIP; CABLE | 1 | 2203- | NLR85 | (F) NLR85-B; NLR85-BL | ||
| 282 | I8-98326 995-0 | BRACKET; TRANS SIDE | 1 | 2203- | NMR81 | (B) | ||
| 536 | I8-98097 681-0 | DAMPER; CABLE | 1 | 2203- | ALL | |||
| 001 | I8-97696 090-A | CABLE; SHIFT,TRANS CONT | 1 | 2203- | NMR81 | |||
| 219 | I8-94363 045-0 | NUT; FLANGE,SHAFT CABLE | 1 | 2203- | ALL | M8 T=8.0 | ||
| 278 | I0-91541 208-0 | WASHER; LK,SHIFT WIRE | 1 | 2203- | ALL | ID=8.4 TOOTH LK INT | ||
| 226 | I8-94170 378-0 | PIN; SHIFT CABLE | 2 | 2203- | ALL | (B) L=21 | ||
| 199 | I0-91610 508-0 | WASHER; PL,SELECT | 1 | 2203- | ALL | ID=8.4 OD=16 | ||
| 226 | I8-94170 378-0 | PIN; SHIFT CABLE | 2 | 2203- | ALL | (B) L=21 | ||
| 300 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | NLR85 | M8X25 FLANGE | ||
| 536 | I8-98097 681-0 | DAMPER; CABLE | 1 | 2203- | ALL | |||
| 303 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 003 | I8-97649 879-A | CABLE; SELECT,TRANS CONT | 1 | 2203- | NLR85 | |||
| 226 | I8-94157 841-0 | PIN; SHIFT CABLE | 1 | 2203- | ALL | (A) L=27.7 | ||
| 512 | I8-97656 189-0 | GUIDE; CABLE,GEAR CONT | 1 | 2203- | NLR85 | |||
| 282 | I8-97350 449-1 | BRACKET; TRANS SIDE | 1 | 2203- | NLR85 | (A) | ||
| 525 | I8-94242 854-0 | WASHER; SHIFT CABLE | 1 | 2203- | ALL | (B) ID=8.4 OD=14 | ||
| 275 | I0-28650 825-0 | BOLT; CONT CABLE CLIP | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 282 | I8-98034 115-0 | BRACKET; TRANS SIDE | 1 | 2203- | ALL | (C) | ||
| 495 | I0-91180 106-0 | NUT; GROMMET | 2 | 2203- | ALL | M6 FLANGE | ||
| 273 | I7-05108 010-A | NUT; CONT CABLE | 1 | 2203- | ALL | M8 FLANGE | ||
| 487 | I8-98296 447-0 | BRACKET; CONT CABLE | 1 | 2203- | NMR81 | |||
| 006 | I8-97211 011-0 | CLIP; CABLE | 1 | 2203- | ALL | (A) ID=19.2 | ||
| 006 | I8-98023 622-0 | CLIP; CABLE | 1 | 2203- | ALL | (E) | ||
| 492 | I1-33657 674-0 | RETAINER; GROMMET | 1 | 2203- | ALL | |||
| 006 | I1-09701 209-1 | CLIP; CABLE | 1 | 2203- | ALL | (B) ID=22.2 | ||
| 222 | I8-97065 212-1 | GROMMET; CABLE | 1 | 2203- | ALL | |||
| 282 | I8-97311 441-1 | BRACKET; TRANS SIDE | 1 | 2203- | NMR81 | (A) | ||
| 006 | I8-97211 011-0 | CLIP; CABLE | 1 | 2203- | ALL | (A) ID=19.2 | ||
| 003 | I8-97696 093-A | CABLE; SELECT,TRANS CONT | 1 | 2203- | NMR81 | |||
| 273 | I7-05108 010-A | NUT; CONT CABLE | 1 | 2203- | ALL | M8 FLANGE | ||
| 275 | I0-28650 825-0 | BOLT; CONT CABLE CLIP | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 222 | I8-97065 212-1 | GROMMET; CABLE | 1 | 2203- | ALL | |||
| 006 | I8-97036 333-1 | CLIP; CABLE | 3 | 2203- | ALL | (D) | ||
| 001 | I8-97696 090-A | CABLE; SHIFT,TRANS CONT | 1 | 2203- | NMR81 | |||
| 001 | I8-97649 878-A | CABLE; SHIFT,TRANS CONT | 1 | 2203- | NLR85 | |||
| 043 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | ALL | M8 FLANGE | ||
| 525 | I0-91614 508-0 | WASHER; SHIFT CABLE | 1 | 2203- | ALL | (A) ID=8.4 OD=16 | ||
| 282 | I8-98326 995-0 | BRACKET; TRANS SIDE | 1 | 2203- | NMR81 | (B) | ||
| 003 | I8-97696 093-A | CABLE; SELECT,TRANS CONT | 1 | 2203- | NMR81 | |||
| 275 | I0-28050 816-0 | BOLT; CONT CABLE CLIP | 1 | 2203- | ALL | M8X16 FLANGE | ||
| 525 | I0-91614 508-0 | WASHER; SHIFT CABLE | 1 | 2203- | ALL | (A) ID=8.4 OD=16 | ||
| 228 | I8-97182 975-0 | WASHER; PL,SHIFT CABLE | 2 | 2203- | ALL | ID=8.2 OD=40 | ||
| 492 | I1-33657 674-0 | RETAINER; GROMMET | 1 | 2203- | ALL | |||
| 282 | I8-97350 449-1 | BRACKET; TRANS SIDE | 1 | 2203- | NLR85 | (A) | ||
| 300 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | NLR85 | M8X25 FLANGE |
