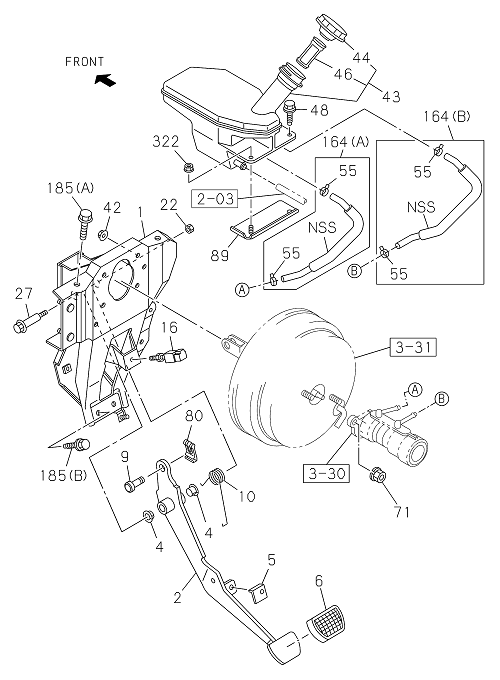

3-10 | BRAKE PEDAL AND CONTROL
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-98147 657-0 | PIN; JAW JOINT | 1 | 2203- | ALL | |||
| 080 | I8-98007 161-0 | PIN; SNAP,BRK PEDAL | 1 | 2203- | ALL | |||
| 022 | I0-91380 010-0 | NUT; SHAFT | 1 | 2203- | ALL | M10 LOCK NUT FLANGE | ||
| 006 | I8-97853 413-2 | COVER; BRK PEDAL | 1 | 2203- | ALL | |||
| 046 | I8-98022 269-0 | FILTER; RESERVOIR,BRK | 1 | 2203- | ALL | |||
| 185 | I0-28661 025-0 | BOLT; BRKT | 2 | 2203- | ALL | (A) M10X25 FLANGE | ||
| 010 | I8-97853 212-1 | SPRING; RETURN,BRK PEDAL | 1 | 2203- | ALL | |||
| 043 | I8-97387 217-3 | TANK ASM; OIL | 1 | 2203- | ALL | |||
| 322 | I0-91180 106-0 | NUT; OIL TANK | 1 | 2203- | ALL | M6 FLANGE | ||
| 027 | I8-97866 667-0 | SHAFT; BRK PEDAL | 1 | 2203- | ALL | |||
| 055 | I8-98168 080-0 | CLIP; RUBBER HOSE | 4 | 2203- | ALL | |||
| 164 | I8-98167 345-2 | HOSE; RUBBER,OIL TANK | 1 | 2203- | ALL | (B) | ||
| 322 | I0-91180 106-0 | NUT; OIL TANK | 1 | 2203- | ALL | M6 FLANGE | ||
| 004 | I8-94238 596-0 | BUSHING; BRK PEDAL | 2 | 2203- | ALL | |||
| 164 | I8-98167 345-2 | HOSE; RUBBER,OIL TANK | 1 | 2203- | ALL | (B) | ||
| 005 | I8-97302 305-0 | STOPPER; BRK PEDAL | 1 | 2203- | ALL | |||
| 001 | I8-98003 148-5 | BRACKET ASM; PEDAL | 1 | 2203- | ALL | |||
| 016 | I8-98000 028-0 | SWITCH; STOP LAMP | 1 | 2203- | ALL | |||
| 089 | I8-98014 337-1 | BRACKET; M/CYL | 1 | 2203- | ALL | |||
| 004 | I8-94238 596-0 | BUSHING; BRK PEDAL | 2 | 2203- | ALL | |||
| 042 | I8-94279 050-0 | NUT; BRK PEDAL | 4 | 2203- | ALL | M8 W/LK WASHER | ||
| 080 | I8-98007 161-0 | PIN; SNAP,BRK PEDAL | 1 | 2203- | ALL | |||
| 164 | I8-98167 344-2 | HOSE; RUBBER,OIL TANK | 1 | 2203- | ALL | (A) | ||
| 043 | I8-97387 217-3 | TANK ASM; OIL | 1 | 2203- | ALL | |||
| 006 | I8-97853 413-2 | COVER; BRK PEDAL | 1 | 2203- | ALL | |||
| 042 | I8-94279 050-0 | NUT; BRK PEDAL | 4 | 2203- | ALL | M8 W/LK WASHER | ||
| 027 | I8-97866 667-0 | SHAFT; BRK PEDAL | 1 | 2203- | ALL | |||
| 071 | I8-94279 050-0 | NUT; BRK M/CYL | 2 | 2203- | ALL | M8 W/LK WASHER | ||
| 001 | I8-98003 148-5 | BRACKET ASM; PEDAL | 1 | 2203- | ALL | |||
| 005 | I8-97302 305-0 | STOPPER; BRK PEDAL | 1 | 2203- | ALL | |||
| 048 | I8-97370 668-0 | BOLT; OIL TANK TO BRKT | 1 | 2203- | ALL | M6X20 W/PL WASHER | ||
| 185 | I0-28661 025-0 | BOLT; BRKT | 2 | 2203- | ALL | (A) M10X25 FLANGE | ||
| 055 | I8-98168 080-0 | CLIP; RUBBER HOSE | 4 | 2203- | ALL | |||
| 089 | I8-98014 337-1 | BRACKET; M/CYL | 1 | 2203- | ALL | |||
| 044 | I8-98022 268-0 | CAP; OIL TANK | 1 | 2203- | ALL | |||
| 016 | I8-98000 028-0 | SWITCH; STOP LAMP | 1 | 2203- | ALL | |||
| 048 | I8-97370 668-0 | BOLT; OIL TANK TO BRKT | 1 | 2203- | ALL | M6X20 W/PL WASHER | ||
| 185 | I8-97313 188-0 | BOLT; BRKT | 2 | 2203- | ALL | (B) M10X22 W/PL WASHER | ||
| 185 | I8-97313 188-0 | BOLT; BRKT | 2 | 2203- | ALL | (B) M10X22 W/PL WASHER | ||
| 009 | I8-98147 657-0 | PIN; JAW JOINT | 1 | 2203- | ALL | |||
| 164 | I8-98167 344-2 | HOSE; RUBBER,OIL TANK | 1 | 2203- | ALL | (A) | ||
| 022 | I0-91380 010-0 | NUT; SHAFT | 1 | 2203- | ALL | M10 LOCK NUT FLANGE | ||
| 002 | I8-98003 156-0 | PEDAL; BRK | 1 | 2203- | ALL | |||
| 044 | I8-98022 268-0 | CAP; OIL TANK | 1 | 2203- | ALL | |||
| 046 | I8-98022 269-0 | FILTER; RESERVOIR,BRK | 1 | 2203- | ALL | |||
| 071 | I8-94279 050-0 | NUT; BRK M/CYL | 2 | 2203- | ALL | M8 W/LK WASHER | ||
| 002 | I8-98003 156-0 | PEDAL; BRK | 1 | 2203- | ALL | |||
| 010 | I8-97853 212-1 | SPRING; RETURN,BRK PEDAL | 1 | 2203- | ALL |
