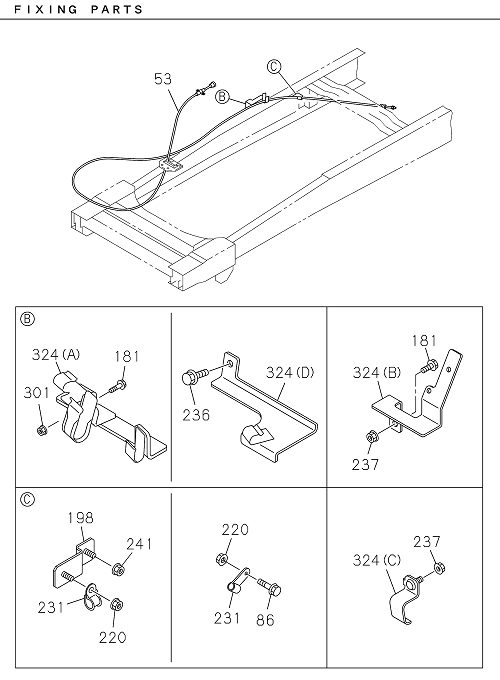

3-11 | PARKING BRAKE CONTROL
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 324 | I8-97696 088-A | BRACKET | 1 | 2203- | NMR81 | (A) | ||
| 024 | I8-98238 611-0 | SWITCH ASM; PARK BRK | 1 | 2203- | ALL | |||
| 181 | I0-28650 825-0 | BOLT; BRKT | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 053 | I8-97696 085-A | CABLE; PARK BRK,FRT LWR | 1 | 2203- | NMR81 | |||
| 237 | I0-91180 106-0 | NUT; BRKT TO FRAME | 1 | 2203- | NLR85 | M6 FLANGE | ||
| 087 | I8-98034 313-1 | NUT | 1 | 2203- | ALL | (A) M6 | ||
| 324 | I8-98001 271-1 | BRACKET | 1 | 2203- | NLR85 | (B) | ||
| 344 | I8-97096 753-0 | GASKET; DASH LWR | 1 | 2203- | NMR81 | |||
| 198 | I8-98034 352-0 | BRACKET; CABLE | 1 | 2203- | NMR81 | |||
| 231 | I1-09701 138-1 | CLIP; BAND,BRK CABLE | 1 | 2203- | NLR85 | ID=13 L=20 | ||
| 241 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | ALL | M8 FLANGE | ||
| 344 | I8-97096 753-0 | GASKET; DASH LWR | 1 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 324 | I8-98032 072-0 | BRACKET | 1 | 2203- | NLR85 | (C) | ||
| 231 | I1-09701 012-0 | CLIP; BAND,BRK CABLE | 1 | 2203- | NMR81 | ID=14.5 L=20 | ||
| 053 | I8-97649 877-B | CABLE; PARK BRK,FRT LWR | 1 | 2203- | NLR85 | |||
| 231 | I1-09701 012-0 | CLIP; BAND,BRK CABLE | 1 | 2203- | NMR81 | ID=14.5 L=20 | ||
| 324 | I8-97696 088-A | BRACKET | 1 | 2203- | NMR81 | (A) | ||
| 324 | I8-97649 880-A | BRACKET | 1 | 2203- | NLR85 | (D) | ||
| 170 | I8-97406 170-1 | COVER; PARKING BRK LEVER | 1 | 2203- | ALL | GRAY | ||
| 053 | I8-97649 877-B | CABLE; PARK BRK,FRT LWR | 1 | 2203- | NLR85 | |||
| 324 | I8-98001 271-1 | BRACKET | 1 | 2203- | NLR85 | (B) | ||
| 181 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | ALL | M8X25 FLANGE | ||
| 087 | I8-98034 313-1 | NUT | 1 | 2203- | ALL | (A) M6 | ||
| 064 | I0-91380 008-0 | NUT; PARKING BRK | 2 | 2203- | ALL | M8 LOCK NUT FLANGE | ||
| 220 | I0-91180 110-0 | NUT; CLIP,PARKING CONT CABLE | 1 | 2203- | NLR85 | M10 FLANGE | ||
| 332 | I8-97406 179-0 | CLIP; COVER | 1 | 2203- | ALL | GRAY | ||
| 087 | I7-05108 010-A | NUT | 2 | 2203- | ALL | (B) M8 FLANGE | ||
| 001 | I8-97426 513-0 | STEM ASM; PARKING BRK | 1 | 2203- | ALL | GRAY | ||
| 301 | I7-05108 010-A | NUT; BRKT,BRK & CLU PEDAL | 1 | 2203- | ALL | M8 FLANGE | ||
| 075 | I0-91805 512-0 | RING; SNAP,HAND BRK CABLE | 1 | 2203- | ALL | ID=12 | ||
| 324 | I8-97649 880-A | BRACKET | 1 | 2203- | NLR85 | (D) | ||
| 181 | I0-28650 825-0 | BOLT; BRKT | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 053 | I8-97696 085-A | CABLE; PARK BRK,FRT LWR | 1 | 2203- | NMR81 | |||
| 236 | I0-28650 625-0 | BOLT; BRKT TO FRAME | 1 | 2203- | NLR85 | M6X25 FLANGE | ||
| 087 | I7-05108 010-A | NUT | 2 | 2203- | ALL | (B) M8 FLANGE | ||
| 001 | I8-97426 513-0 | STEM ASM; PARKING BRK | 1 | 2203- | ALL | GRAY | ||
| 236 | I0-28650 625-0 | BOLT; BRKT TO FRAME | 1 | 2203- | NLR85 | M6X25 FLANGE | ||
| 220 | I7-05108 010-A | NUT; CLIP,PARKING CONT CABLE | 1 | 2203- | ALL | M8 FLANGE | ||
| 025 | I8-98152 463-0 | SCREW; SW,PARKING BRK | 1 | 2203- | ALL | |||
| 301 | I7-05108 010-A | NUT; BRKT,BRK & CLU PEDAL | 2 | 2203- | ALL | M8 FLANGE | ||
| 024 | I8-98238 611-0 | SWITCH ASM; PARK BRK | 1 | 2203- | ALL | |||
| 198 | I8-98034 352-0 | BRACKET; CABLE | 1 | 2203- | NMR81 | |||
| 241 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | ALL | M8 FLANGE | ||
| 086 | I0-28651 025-0 | BOLT | 1 | 2203- | NLR85 | M10X25 FLANGE | ||
| 237 | I7-05108 010-A | NUT; BRKT TO FRAME | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 324 | I8-98032 072-0 | BRACKET | 1 | 2203- | NLR85 | (C) | ||
| 025 | I8-98152 463-0 | SCREW; SW,PARKING BRK | 1 | 2203- | ALL | |||
| 237 | I7-05108 010-A | NUT; BRKT TO FRAME | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 064 | I0-91380 008-0 | NUT; PARKING BRK | 2 | 2203- | ALL | M8 LOCK NUT FLANGE | ||
| 237 | I0-91180 106-0 | NUT; BRKT TO FRAME | 1 | 2203- | NLR85 | M6 FLANGE | ||
| 220 | I0-91180 110-0 | NUT; CLIP,PARKING CONT CABLE | 1 | 2203- | NLR85 | M10 FLANGE | ||
| 170 | I8-97406 170-1 | COVER; PARKING BRK LEVER | 1 | 2203- | ALL | GRAY | ||
| 332 | I8-97406 179-0 | CLIP; COVER | 1 | 2203- | ALL | GRAY | ||
| 344 | I8-97096 753-0 | GASKET; DASH LWR | 1 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 086 | I0-28651 025-0 | BOLT | 1 | 2203- | NLR85 | M10X25 FLANGE | ||
| 220 | I7-05108 010-A | NUT; CLIP,PARKING CONT CABLE | 1 | 2203- | ALL | M8 FLANGE | ||
| 231 | I1-09701 138-1 | CLIP; BAND,BRK CABLE | 1 | 2203- | NLR85 | ID=13 L=20 | ||
| 075 | I0-91805 512-0 | RING; SNAP,HAND BRK CABLE | 1 | 2203- | ALL | ID=12 |
