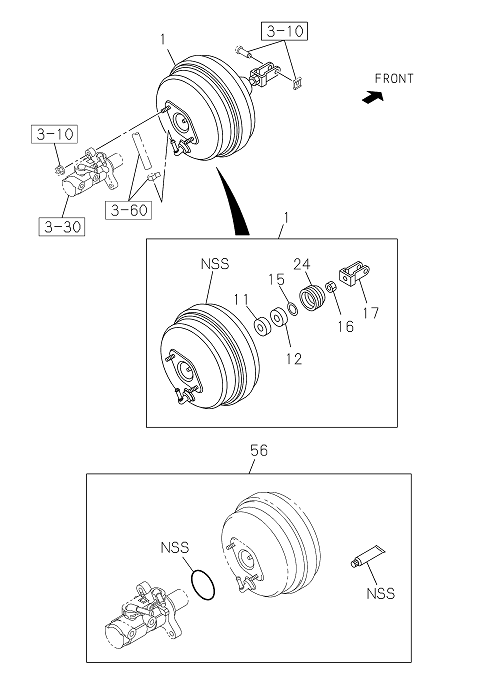

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 011 | I8-97205 576-0 | FILTER; M/VAC | 1 | 2203- | ALL | |||
| 017 | I8-97224 610-0 | CLEVIS; YOKE,M/VAC | 1 | 2203- | ALL | |||
| 056 | I8-98184 424-0 | GASKET KIT; M/CYL TO SERVO UNIT | 1 | 2203- | ALL | W/GREASE | ||
| 001 | I8-98234 822-0 | MASTER VAC ASM; BRK | 1 | 2203- | ALL | |||
| 001 | I8-98234 822-0 | MASTER VAC ASM; BRK | 1 | 2203- | ALL | |||
| 012 | I8-97205 577-0 | SILENCER; M/VAC | 1 | 2203- | ALL | |||
| 015 | I8-94375 083-0 | RETAINER; GUARD,M/VAC | 1 | 2203- | ALL | |||
| 012 | I8-97205 577-0 | SILENCER; M/VAC | 1 | 2203- | ALL | |||
| 015 | I8-94375 083-0 | RETAINER; GUARD,M/VAC | 1 | 2203- | ALL | |||
| 011 | I8-97205 576-0 | FILTER; M/VAC | 1 | 2203- | ALL | |||
| 016 | I1-52139 008-0 | NUT; VLV ROD,M/VAC | 1 | 2203- | ALL | M10 | ||
| 056 | I8-98184 424-0 | GASKET KIT; M/CYL TO SERVO UNIT | 1 | 2203- | ALL | W/GREASE | ||
| 024 | I8-98184 421-0 | GUARD; VLV BODY,M/VAC | 1 | 2203- | ALL | |||
| 016 | I1-52139 008-0 | NUT; VLV ROD,M/VAC | 1 | 2203- | ALL | M10 | ||
| 024 | I8-98184 421-0 | GUARD; VLV BODY,M/VAC | 1 | 2203- | ALL | |||
| 017 | I8-97224 610-0 | CLEVIS; YOKE,M/VAC | 1 | 2203- | ALL |
