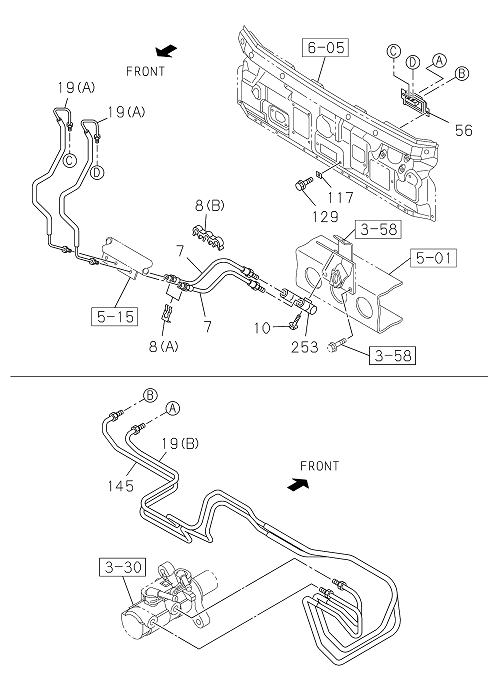

3-50 | BRAKE PIPING; OIL, MASTER CYLINDER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I8-98357 675-A | PIPE; BRK,M/CYL TO UNION | 2 | 2203- | ALL | (A) | ||
| 019 | I8-98357 675-A | PIPE; BRK,M/CYL TO UNION | 2 | 2203- | ALL | (A) | ||
| 253 | I5-47456 009-1 | JOINT | 1 | 2203- | ALL | |||
| 008 | I8-97365 304-0 | CLIP; FLEX HOSE,CABLE SIDE | 2 | 2203- | ALL | (A) | ||
| 129 | I8-98081 030-0 | BOLT; BRKT | 2 | 2203- | ALL | M6X20 W/LK&PL WASHER | ||
| 145 | I8-98115 269-A | PIPE; BRK,METERING VLV TO UNION | 1 | 2203- | ALL | L=1371 | ||
| 145 | I8-98115 269-A | PIPE; BRK,METERING VLV TO UNION | 1 | 2203- | ALL | L=1371 | ||
| 008 | I8-98056 614-0 | CLIP; FLEX HOSE,CABLE SIDE | 1 | 2203- | ALL | (B) | ||
| 019 | I8-98115 279-A | PIPE; BRK,M/CYL TO UNION | 1 | 2203- | ALL | (B) L=1274 | ||
| 007 | I8-98033 732-0 | HOSE; FLEX,PIPE TO 5 WAY JOINT | 2 | 2203- | ALL | |||
| 010 | I0-28650 640-0 | BOLT; JOINT | 1 | 2203- | ALL | M6X40 FLANGE | ||
| 117 | I8-97856 616-0 | SEAL; UNION,BRK PIPE JOINT | 2 | 2203- | ALL | |||
| 056 | I8-98154 264-1 | BRACKET; UNION,BRK | 1 | 2203- | ALL | |||
| 010 | I0-28650 640-0 | BOLT; JOINT | 1 | 2203- | ALL | M6X40 FLANGE | ||
| 129 | I8-98081 030-0 | BOLT; BRKT | 2 | 2203- | ALL | M6X20 W/LK&PL WASHER | ||
| 253 | I5-47456 009-1 | JOINT | 1 | 2203- | ALL | |||
| 008 | I8-98056 614-0 | CLIP; FLEX HOSE,CABLE SIDE | 1 | 2203- | ALL | (B) | ||
| 117 | I8-97856 616-0 | SEAL; UNION,BRK PIPE JOINT | 2 | 2203- | ALL | |||
| 019 | I8-98115 279-A | PIPE; BRK,M/CYL TO UNION | 1 | 2203- | ALL | (B) L=1274 | ||
| 008 | I8-97365 304-0 | CLIP; FLEX HOSE,CABLE SIDE | 2 | 2203- | ALL | (A) | ||
| 007 | I8-98033 732-0 | HOSE; FLEX,PIPE TO 5 WAY JOINT | 2 | 2203- | ALL | |||
| 056 | I8-98154 264-1 | BRACKET; UNION,BRK | 1 | 2203- | ALL |
