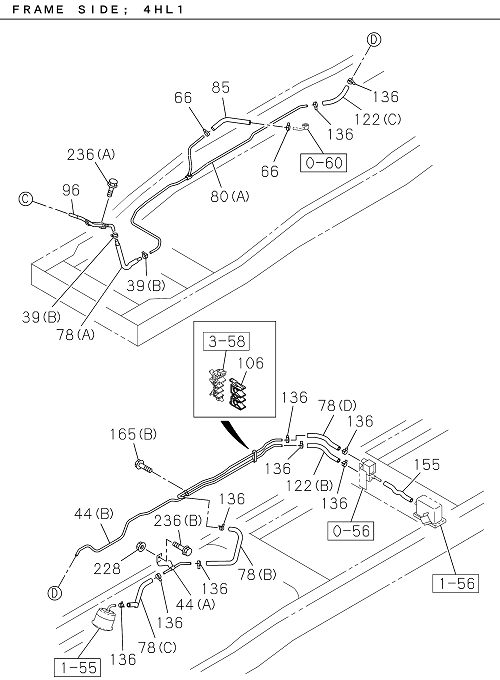

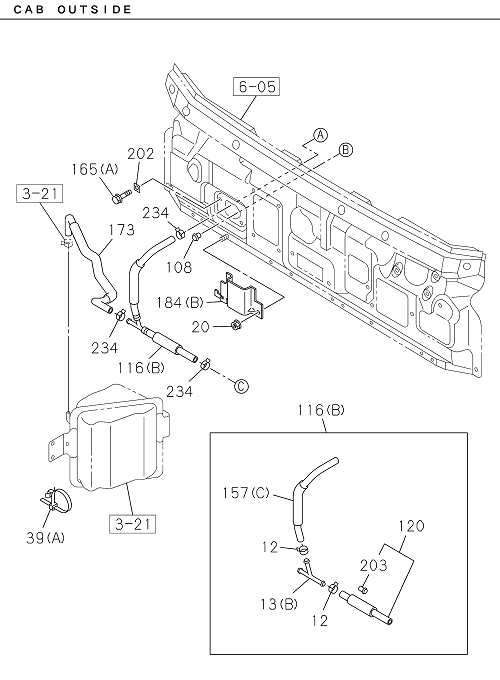

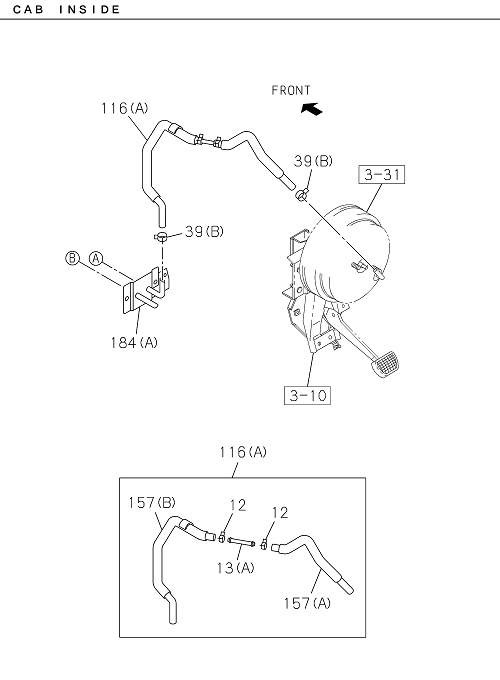

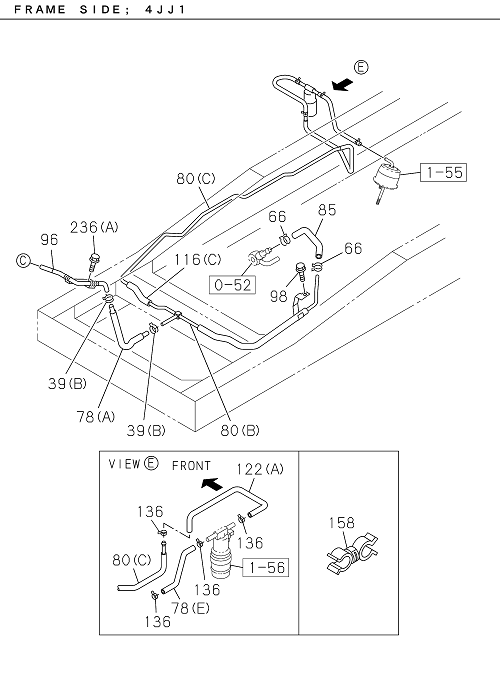

3-60 | BRAKE PIPING; VACUUM
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 157 | I8-97389 671-3 | HOSE; JOINT | 1 | 2203- | ALL | (B) | ||
| 085 | I7-00808 242-A | HOSE; VAC,ENG SIDE | 1 | 2203- | NMR81 | |||
| 044 | I8-97695 610-A | PIPE; VAC,MAG VLV | 1 | 2203- | NMR81 | (B) EXC. NMR81-TSDL | ||
| 122 | I0-08358 100-0 | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2203- | NMR81 | (C) L=140 | ||
| 013 | I8-98035 106-0 | JOINT; HOSE,VAC | 1 | 2203- | ALL | (A) | ||
| 122 | I7-86400 299-A | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2203- | NLR85 | (A) | ||
| 044 | I7-86000 217-A | PIPE; VAC,MAG VLV | 1 | 2203- | NMR81 | (B) NMR81-TSDL | ||
| 116 | I0-08158 300-0 | HOSE; VAC,M/VAC | 1 | 2203- | NLR85 | (C) L=130 | ||
| 080 | I8-97696 605-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NLR85 | (C) NLR85-T; NLR85-B | ||
| 228 | I0-91180 110-0 | NUT; PIPE | 1 | 2203- | ALL | M10 FLANGE | ||
| 165 | I8-98031 842-0 | BOLT; BRKT | 2 | 2203- | ALL | (A) M6X20 W/LK&PL WASHER | ||
| 096 | I8-98039 736-A | PIPE; VAC,M/VAC TO VAC PUMP | 1 | 2203- | NMR81 | |||
| 116 | I8-97389 690-3 | HOSE; VAC,M/VAC | 1 | 2203- | ALL | (B) | ||
| 106 | I8-97326 157-1 | CLIP; PIPE | 2 | 2203- | NMR81 | ID=10X2 OR 12X2 & 6.35 | ||
| 013 | I8-98035 106-0 | JOINT; HOSE,VAC | 1 | 2203- | ALL | (A) | ||
| 184 | I8-98183 467-1 | BRACKET; UNION FIX | 1 | 2203- | ALL | (A) | ||
| 234 | I8-98008 098-0 | CLAMP; PIPE | 3 | 2203- | ALL | ID=16 | ||
| 236 | I0-28651 030-0 | BOLT; PIPE | 1 | 2203- | ALL | (B) M10X30 FLANGE | ||
| 203 | I8-94104 021-0 | VALVE; CHECK | 1 | 2203- | ALL | |||
| 116 | I8-98115 399-1 | HOSE; VAC,M/VAC | 1 | 2203- | ALL | (A) | ||
| 106 | I8-97326 157-1 | CLIP; PIPE | 2 | 2203- | NLR85 | ID=10X2 OR 12X2 & 6.35; NLR85-TL; NLR85-BL | ||
| 122 | I0-08358 100-0 | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2203- | NMR81 | (C) L=140 | ||
| 020 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | ALL | M6 FLANGE | ||
| 012 | I8-98008 097-0 | CLIP; HOSE | 4 | 2203- | ALL | ID=15.5 | ||
| 039 | I8-98008 098-0 | CLIP; HOSE,VAC | 2 | 2203- | ALL | (B) ID=16 | ||
| 020 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | ALL | M6 FLANGE | ||
| 044 | I8-97696 127-A | PIPE; VAC,MAG VLV | 1 | 2203- | NMR81 | (A) | ||
| 078 | I8-97696 162-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NMR81 | (C) | ||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 2203- | ALL | ID=16 | ||
| 120 | I8-97389 696-2 | HOSE; VAC,M/VAC,W/CHECK VALVE | 1 | 2203- | ALL | |||
| 184 | I8-98017 628-1 | BRACKET; UNION FIX | 1 | 2203- | ALL | (B) | ||
| 080 | I8-97696 126-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NMR81 | (A) | ||
| 155 | I0-08258 300-0 | HOSE; VAC,AIR FILTER | 1 | 2203- | ALL | L=180 | ||
| 116 | I8-98115 399-1 | HOSE; VAC,M/VAC | 1 | 2203- | ALL | (A) | ||
| 098 | I7-04508 025-A | BOLT; VAC PIPE FIX | 1 | 2203- | NLR85 | M8X20 FLANGE | ||
| 078 | I8-97696 161-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NMR81 | (B) | ||
| 080 | I8-97696 616-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NLR85 | (C) NLR85-TL; NLR85-BL | ||
| 157 | I8-98022 868-3 | HOSE; JOINT | 1 | 2203- | ALL | (C) | ||
| 013 | I8-98048 075-0 | JOINT; HOSE,VAC | 1 | 2203- | ALL | (B) | ||
| 078 | I0-08258 300-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | ALL | (D) L=180 | ||
| 044 | I7-86000 217-A | PIPE; VAC,MAG VLV | 1 | 2203- | NMR81 | (B) NMR81-TSDL | ||
| 173 | I8-98107 558-0 | HOSE; VAC,VAC TANK SIDE | 1 | 2203- | ALL | |||
| 085 | I7-00808 242-A | HOSE; VAC,ENG SIDE | 1 | 2203- | NMR81 | |||
| 122 | I0-08258 300-0 | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2203- | NMR81 | (B) L=180 | ||
| 106 | I8-97326 157-1 | CLIP; PIPE | 1 | 2203- | NLR85 | ID=10X2 OR 12X2 & 6.35; NLR85-TL; NLR85-BL | ||
| 078 | I0-08258 300-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | ALL | (D) L=180 | ||
| 078 | I8-97696 161-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NMR81 | (B) | ||
| 080 | I8-97696 126-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NMR81 | (A) | ||
| 080 | I8-97696 616-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NLR85 | (C) NLR85-TL; NLR85-BL | ||
| 120 | I8-97389 696-2 | HOSE; VAC,M/VAC,W/CHECK VALVE | 1 | 2203- | ALL | |||
| 158 | I8-94473 320-0 | CLIP; HOSE | 1 | 2203- | NLR85 | ID=16.5 & 16.5 | ||
| 096 | I8-98039 736-A | PIPE; VAC,M/VAC TO VAC PUMP | 1 | 2203- | NMR81 | |||
| 136 | I8-98008 098-0 | CLIP; VAC HOSE | 10 | 2203- | ALL | ID=16 | ||
| 012 | I8-98008 097-0 | CLIP; HOSE | 4 | 2203- | ALL | ID=15.5 | ||
| 165 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 078 | I7-59601 253-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NMR81 | (A) | ||
| 108 | I9-09956 353-A | GROMMET; PIPE | 1 | 2203- | ALL | |||
| 173 | I8-98107 558-0 | HOSE; VAC,VAC TANK SIDE | 1 | 2203- | ALL | |||
| 078 | I7-59601 253-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NMR81 | (A) | ||
| 165 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 236 | I0-28050 612-0 | BOLT; PIPE | 1 | 2203- | ALL | (A) M6X12 FLANGE | ||
| 039 | I1-09987 182-0 | CLIP; HOSE,VAC | 1 | 2203- | ALL | (A) L=170.3 | ||
| 080 | I8-97696 604-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NLR85 | (B) | ||
| 080 | I8-97696 605-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NLR85 | (C) NLR85-T; NLR85-B | ||
| 157 | I8-98125 849-1 | HOSE; JOINT | 1 | 2203- | ALL | (A) | ||
| 165 | I8-98031 842-0 | BOLT; BRKT | 2 | 2203- | ALL | (A) M6X20 W/LK&PL WASHER | ||
| 202 | I8-97856 616-0 | SEAL | 2 | 2203- | ALL | |||
| 136 | I8-98008 098-0 | CLIP; VAC HOSE | 10 | 2203- | ALL | ID=16 | ||
| 080 | I8-97696 604-A | PIPE; VAC,ENG SIDE | 1 | 2203- | NLR85 | (B) | ||
| 039 | I8-98008 098-0 | CLIP; HOSE,VAC | 2 | 2203- | ALL | (B) ID=16 | ||
| 228 | I0-91180 110-0 | NUT; PIPE | 1 | 2203- | ALL | M10 FLANGE | ||
| 096 | I8-98357 688-A | PIPE; VAC,M/VAC TO VAC PUMP | 1 | 2203- | NLR85 | |||
| 122 | I0-08258 300-0 | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2203- | NMR81 | (B) L=180 | ||
| 158 | I8-94473 320-0 | CLIP; HOSE | 1 | 2203- | NLR85 | ID=16.5 & 16.5 | ||
| 106 | I8-97326 157-1 | CLIP; PIPE | 2 | 2203- | NLR85 | ID=10X2 OR 12X2 & 6.35; NLR85-TL; NLR85-BL | ||
| 155 | I0-08258 300-0 | HOSE; VAC,AIR FILTER | 1 | 2203- | ALL | L=180 | ||
| 085 | I7-00808 240-A | HOSE; VAC,ENG SIDE | 1 | 2203- | NLR85 | |||
| 236 | I0-28651 030-0 | BOLT; PIPE | 1 | 2203- | ALL | (B) M10X30 FLANGE | ||
| 044 | I8-97695 610-A | PIPE; VAC,MAG VLV | 1 | 2203- | NMR81 | (B) EXC. NMR81-TSDL | ||
| 203 | I8-94104 021-0 | VALVE; CHECK | 1 | 2203- | ALL | |||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 2203- | ALL | ID=16 | ||
| 122 | I7-86400 299-A | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2203- | NLR85 | (A) | ||
| 098 | I7-04508 025-A | BOLT; VAC PIPE FIX | 1 | 2203- | NLR85 | M8X20 FLANGE | ||
| 234 | I8-98008 098-0 | CLAMP; PIPE | 3 | 2203- | ALL | ID=16 | ||
| 044 | I8-97696 127-A | PIPE; VAC,MAG VLV | 1 | 2203- | NMR81 | (A) | ||
| 013 | I8-98048 075-0 | JOINT; HOSE,VAC | 1 | 2203- | ALL | (B) | ||
| 078 | I8-98116 895-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NLR85 | (A) | ||
| 184 | I8-98017 628-1 | BRACKET; UNION FIX | 1 | 2203- | ALL | (B) | ||
| 108 | I9-09956 353-A | GROMMET; PIPE | 1 | 2203- | ALL | |||
| 078 | I8-98116 895-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NLR85 | (A) | ||
| 136 | I8-98008 098-0 | CLIP; VAC HOSE | 4 | 2203- | ALL | ID=16 | ||
| 078 | I8-97696 162-A | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | NMR81 | (C) | ||
| 157 | I8-97389 671-3 | HOSE; JOINT | 1 | 2203- | ALL | (B) | ||
| 078 | I0-08258 300-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2203- | ALL | (E) L=330 | ||
| 116 | I8-97389 690-3 | HOSE; VAC,M/VAC | 1 | 2203- | ALL | (B) | ||
| 157 | I8-98125 849-1 | HOSE; JOINT | 1 | 2203- | ALL | (A) | ||
| 116 | I0-08158 300-0 | HOSE; VAC,M/VAC | 1 | 2203- | NLR85 | (C) L=130 | ||
| 039 | I1-09987 182-0 | CLIP; HOSE,VAC | 1 | 2203- | ALL | (A) L=170.3 | ||
| 184 | I8-98183 467-1 | BRACKET; UNION FIX | 1 | 2203- | ALL | (A) | ||
| 157 | I8-98022 868-3 | HOSE; JOINT | 1 | 2203- | ALL | (C) | ||
| 096 | I8-98357 688-A | PIPE; VAC,M/VAC TO VAC PUMP | 1 | 2203- | NLR85 | |||
| 202 | I8-97856 616-0 | SEAL | 2 | 2203- | ALL | |||
| 085 | I7-00808 240-A | HOSE; VAC,ENG SIDE | 1 | 2203- | NLR85 | |||
| 106 | I8-97326 157-1 | CLIP; PIPE | 1 | 2203- | NMR81 | ID=10X2 OR 12X2 & 6.35 | ||
| 236 | I0-28050 612-0 | BOLT; PIPE | 1 | 2203- | ALL | (A) M6X12 FLANGE |
