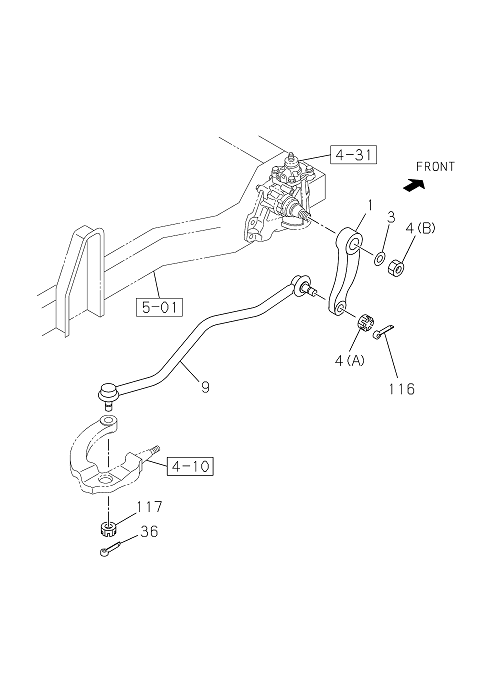

4-33 | STEERING LINKAGE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I0-91510 622-0 | WASHER; LK,PITMAN ARM | 1 | 2203- | ALL | ID=22.5 | ||
| 116 | I8-97349 766-0 | PIN; SPLIT,TRACK ROD,CENTER | 1 | 2203- | ALL | L=19 | ||
| 004 | I0-91111 522-0 | NUT; PITMAN ARM | 1 | 2203- | ALL | (B) M22 | ||
| 117 | I8-97245 632-0 | NUT; DRAG LINK | 1 | 2203- | ALL | M18 SLOTTED | ||
| 009 | I8-98344 371-0 | LINK; DRAG | 1 | 2203- | ALL | |||
| 001 | I8-97109 289-1 | ARM; PITMAN,STRG | 1 | 2203- | ALL | |||
| 004 | I8-97245 632-0 | NUT; PITMAN ARM | 1 | 2203- | ALL | (A) M18 SLOTTED | ||
| 036 | I8-98098 024-0 | PIN; SPLIT,DRAG LINK | 1 | 2203- | ALL | L=19 |
