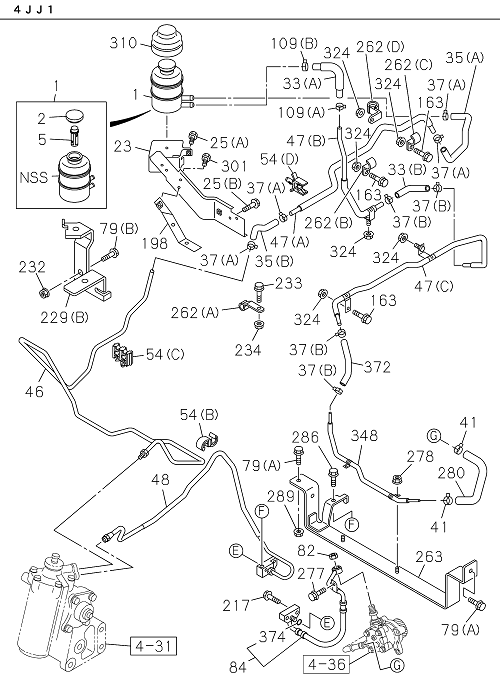

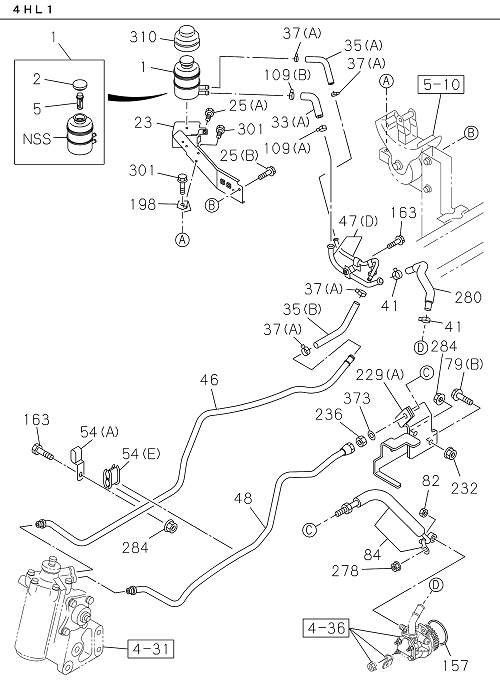

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 157 | I8-97101 875-2 | GASKET; P/S PUMP | 1 | 2203- | NMR81 | |||
| 005 | I8-97094 732-0 | STRAINER; OIL TANK,P/S | 1 | 2203- | ALL | |||
| 047 | I8-97696 647-A | PIPE; RETURN | 1 | 2203- | NLR85 | (B) | ||
| 047 | I8-97696 668-A | PIPE; RETURN | 1 | 2203- | NLR85 | (C) NLR85-T; NLR85-B | ||
| 023 | I8-98053 625-2 | BRACKET; OIL TANK,P/S | 1 | 2203- | ALL | |||
| 054 | I8-97018 546-0 | CLIP; OIL PIPE | 1 | 2203- | NLR85 | (C) ID=10X2 H=37.5 | ||
| 234 | I7-05108 010-A | NUT; PIPE CLIP,P/S | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 033 | I8-97696 646-A | HOSE; RUBBER,POWER STRG | 1 | 2203- | NLR85 | (B) | ||
| 046 | I8-97696 083-A | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 2203- | NMR81 | |||
| 217 | I0-28650 635-0 | BOLT; FLEX HOSE,P/S | 2 | 2203- | NLR85 | M6X35 FLANGE | ||
| 037 | I8-98008 098-0 | CLIP; HOSE,P/S | 2 | 2203- | ALL | (A) ID=16 | ||
| 263 | I8-97696 642-A | BRACKET; P/S PIPE | 1 | 2203- | NLR85 | |||
| 025 | I0-28650 825-0 | BOLT; OIL TANK BRKT | 2 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 280 | I8-98025 540-1 | HOSE; P/S OIL PUMP,INL | 1 | 2203- | NLR85 | |||
| 236 | I8-94370 339-0 | NUT; FLEX HOSE,P/S PIPING | 1 | 2203- | NMR81 | M16 | ||
| 229 | I8-97696 648-A | BRACKET; HOSE,POWER STRG | 1 | 2203- | NLR85 | (B) | ||
| 163 | I0-28650 825-0 | BOLT; OIL PIPE | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 079 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 047 | I8-97696 665-A | PIPE; RETURN | 1 | 2203- | NLR85 | (C) NLR85-TL; NLR85-BL | ||
| 054 | I1-09700 744-0 | CLIP; OIL PIPE | 1 | 2203- | NMR81 | (A) ID=14X2 H=15 L=20 | ||
| 054 | I8-94462 219-0 | CLIP; OIL PIPE | 1 | 2203- | NLR85 | (D) ID=10 H=40 | ||
| 324 | I0-91180 106-0 | NUT; OIL PIPE | 1 | 2203- | NLR85 | M6 FLANGE | ||
| 233 | I0-28650 825-0 | BOLT; PIPE CLIP,P/S | 1 | 2203- | NLR85 | M8X25 FLANGE | ||
| 278 | I7-05108 010-A | NUT; HOSE CLIP | 2 | 2203- | ALL | M8 FLANGE | ||
| 079 | I0-28651 025-0 | BOLT; BRKT | 2 | 2203- | NLR85 | (A) M10X25 FLANGE | ||
| 163 | I0-28050 820-0 | BOLT; OIL PIPE | 1 | 2203- | NLR85 | M8X20 FLANGE | ||
| 048 | I8-97696 082-A | PIPE; OIL,FLEX HOSE TO STRG UNIT | 1 | 2203- | NMR81 | |||
| 232 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | ALL | M8 FLANGE | ||
| 289 | I0-91180 110-0 | NUT; BRKT,POWER STRG | 1 | 2203- | NLR85 | M10 FLANGE | ||
| 001 | I8-97107 987-0 | TANK ASM; OIL,P/S | 1 | 2203- | ALL | |||
| 109 | I8-97359 141-0 | CLIP; RUBBER HOSE | 1 | 2203- | ALL | (B) ID=22 | ||
| 047 | I8-97696 645-A | PIPE; RETURN | 1 | 2203- | NLR85 | (A) | ||
| 002 | I8-94146 153-2 | CAP; OIL TANK,P/S | 1 | 2203- | ALL | |||
| 372 | I0-09814 150-A | HOSE; RUBBER | 1 | 2203- | NLR85 | L=150 | ||
| 280 | I8-98217 297-A | HOSE; P/S OIL PUMP,INL | 1 | 2203- | NMR81 | |||
| 035 | I0-19809 300-0 | HOSE; RETURN,P/S TANK | 1 | 2203- | NLR85 | (B) L=140 | ||
| 277 | I0-28050 812-A | BOLT; HOSE CLIP | 1 | 2203- | NLR85 | M8X12 FLANGE | ||
| 301 | I0-28650 825-0 | BOLT; STAY,OIL TANK | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 041 | I8-98150 355-0 | CLIP; HOSE,P/S | 2 | 2203- | ALL | ID=21 | ||
| 262 | I0-95235 536-0 | CLIP; P/S PIPE | 1 | 2203- | NLR85 | (D) ID=16 L=20 | ||
| 035 | I8-98054 265-A | HOSE; RETURN,P/S TANK | 1 | 2203- | ALL | (A) | ||
| 047 | I8-97695 475-A | PIPE; RETURN | 1 | 2203- | NMR81 | (D) | ||
| 025 | I0-28450 620-0 | BOLT; OIL TANK BRKT | 1 | 2203- | ALL | (A) M6X20 FLANGE | ||
| 348 | I8-97696 641-A | PIPE; OIL,P/S PRESS | 1 | 2203- | NLR85 | |||
| 084 | I8-97504 209-0 | HOSE; FLEX,P/S | 1 | 2203- | NMR81 | |||
| 054 | I8-94252 455-2 | CLIP; OIL PIPE | 2 | 2203- | NMR81 | (E) ID=10X2 H=22 | ||
| 033 | I8-98054 267-0 | HOSE; RUBBER,POWER STRG | 1 | 2203- | ALL | (A) | ||
| 310 | I8-97103 394-0 | COVER; OIL TANK | 1 | 2203- | ALL | |||
| 262 | I1-09700 139-0 | CLIP; P/S PIPE | 1 | 2203- | NLR85 | (B) ID=6 L=22 | ||
| 232 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | ALL | M8 FLANGE | ||
| 262 | I1-09700 057-1 | CLIP; P/S PIPE | 1 | 2203- | NLR85 | (C) ID=14 L=23 | ||
| 284 | I7-05108 010-A | NUT; PIPE | 2 | 2203- | ALL | M8 FLANGE | ||
| 286 | I0-28650 830-0 | BOLT; CLIP,P/S HOSE | 1 | 2203- | NLR85 | M8X30 FLANGE | ||
| 037 | I8-98150 355-0 | CLIP; HOSE,P/S | 4 | 2203- | NLR85 | (B) ID=21 | ||
| 229 | I8-97696 163-A | BRACKET; HOSE,POWER STRG | 1 | 2203- | NMR81 | (A) | ||
| 198 | I8-98011 885-1 | STAY; OIL TANK,POWER STEERING | 1 | 2203- | NLR85 | |||
| 054 | I1-09709 277-1 | CLIP; OIL PIPE | 1 | 2203- | NLR85 | (B) ID=10 & 10 | ||
| 109 | I8-98150 355-0 | CLIP; RUBBER HOSE | 1 | 2203- | ALL | (A) ID=21 | ||
| 046 | I8-97696 643-A | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 2203- | NLR85 | |||
| 035 | I6-09809 150-0 | HOSE; RETURN,P/S TANK | 1 | 2203- | NMR81 | (IADG) (B) L=150 | ||
| 262 | I0-95235 032-0 | CLIP; P/S PIPE | 1 | 2203- | NLR85 | (A) ID=11 L=40 | ||
| 374 | I8-98139 036-0 | GASKET; HOSE,P/S | 1 | 2203- | NLR85 | |||
| 198 | I8-98082 763-0 | STAY; OIL TANK,POWER STEERING | 1 | 2203- | NMR81 | |||
| 278 | I7-05108 010-A | NUT; HOSE CLIP | 1 | 2203- | ALL | M8 FLANGE | ||
| 373 | I0-91541 216-0 | WASHER; HOSE,P/S | 1 | 2203- | NMR81 | ID=16.5 TOOTH LK INT | ||
| 035 | I0-09809 150-0 | HOSE; RETURN,P/S TANK | 1 | 2203- | NMR81 | (B) L=150 | ||
| 079 | I0-28650 825-0 | BOLT; BRKT | 2 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 324 | I7-05108 010-A | NUT; OIL PIPE | 5 | 2203- | NLR85 | M8 FLANGE | ||
| 163 | I0-28650 620-0 | BOLT; OIL PIPE | 1 | 2203- | NLR85 | M6X20 FLANGE | ||
| 082 | I8-97028 390-1 | NUT; FLEX HOSE,P/S | 1 | 2203- | ALL | M12 SELF LOCK | ||
| 084 | I8-98250 111-0 | HOSE; FLEX,P/S | 1 | 2203- | NLR85 | |||
| 048 | I8-97696 644-A | PIPE; OIL,FLEX HOSE TO STRG UNIT | 1 | 2203- | NLR85 |
