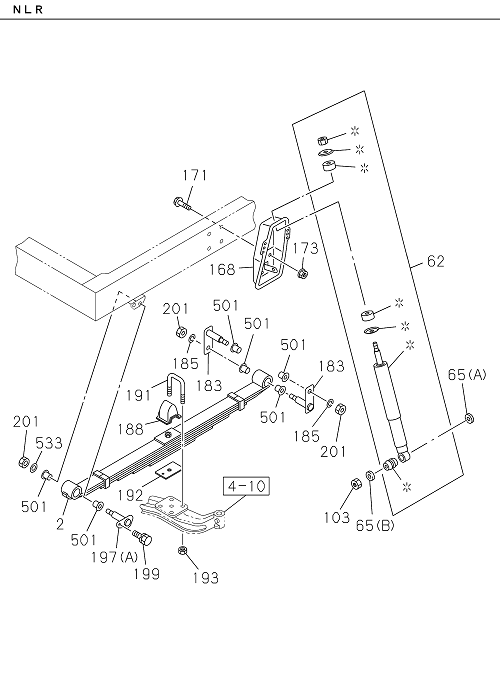

4-50 | FRONT SUSPENSION
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 168 | I8-97316 015-1 | BRACKET; S/ABS,FRT SUSP | 1 | 2203- | ALL | |||
| 187 | I0-90301 410-0 | NIPPLE; GREASE,FRT | 6 | 2203- | NMR81 | PT1/8 STRAIGHT | ||
| 065 | I0-91614 616-0 | WASHER; S/ABS | 2 | 2203- | ALL | (A) ID=17 OD=32 | ||
| 197 | I7-66000 211-A | PIN; FRT SPR,FRT | 4 | 2203- | NMR81 | (C) | ||
| 192 | I8-94249 413-1 | PIECE; DIST | 2 | 2203- | NLR85 | |||
| 533 | I0-91510 620-0 | WASHER; FRT SUSP | 2 | 2203- | NMR81 | ID=20.2 | ||
| 014 | I0-91110 510-0 | NUT; S/ABS,UPR | 2 | 2203- | ALL | M10 | ||
| 193 | I8-97360 124-0 | NUT; U BOLT | 8 | 2203- | ALL | M14 FLANGE | ||
| 197 | I6-65206 225-0 | PIN; FRT SPR,FRT | 2 | 2203- | NMR81 | (IADG) (B) | ||
| 002 | I8-97696 166-A | SPRING ASM; LEAF,FRT | 2 | 2203- | NLR85 | NLR85-BL | ||
| 197 | I7-65206 225-A | PIN; FRT SPR,FRT | 2 | 2203- | NMR81 | (B) | ||
| 017 | I9-51631 603-0 | BUSHING; RUBBER,S/ABS | 4 | 2203- | NMR81 | |||
| 197 | I8-94117 900-A | PIN; FRT SPR,FRT | 2 | 2203- | NLR85 | (A) | ||
| 002 | I8-97696 735-A | SPRING ASM; LEAF,FRT | 1 | 2203- | NMR81 | NMR81-TSD; TSDL | ||
| 533 | I7-66000 215-A | WASHER; FRT SUSP | 2 | 2203- | NLR85 | ID=16.5 | ||
| 002 | I8-97696 724-A | SPRING ASM; LEAF,FRT | 1 | 2203- | NMR81 | NMR81-THD; TSHD | ||
| 002 | I8-97696 723-A | SPRING ASM; LEAF,FRT | 1 | 2203- | NMR81 | NMR81-THD; TSHD | ||
| 197 | I6-66000 211-0 | PIN; FRT SPR,FRT | 4 | 2203- | NMR81 | (IADG) (C) | ||
| 017 | I6-51631 603-0 | BUSHING; RUBBER,S/ABS | 4 | 2203- | NMR81 | (IADG) | ||
| 191 | I7-66000 204-A | U-BOLT; FRT SPR | 4 | 2203- | NLR85 | L=95 | ||
| 501 | I7-65220 208-A | BUSHING; LEAF SPR,FRT | 12 | 2203- | NLR85 | |||
| 068 | I6-94224 694-0 | BUSHING; S/ABS | 2 | 2203- | NMR81 | (IADG) | ||
| 199 | I0-28651 025-0 | BOLT | 2 | 2203- | NLR85 | M10X25 FLANGE | ||
| 168 | I8-97316 007-1 | BRACKET; S/ABS,FRT SUSP | 1 | 2203- | ALL | |||
| 002 | I8-97696 046-A | SPRING ASM; LEAF,FRT | 2 | 2203- | NLR85 | NLR85-B | ||
| 062 | I8-97696 737-A | ABSORBER ASM; SHOCK,FRT | 2 | 2203- | NMR81 | |||
| 065 | I8-98005 969-0 | WASHER; S/ABS | 2 | 2203- | ALL | (B) ID=12.5 | ||
| 002 | I8-97695 621-A | SPRING ASM; LEAF,FRT | 2 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 185 | I7-66000 215-A | WASHER; LK,PIN | 4 | 2203- | NLR85 | ID=16.5 | ||
| 171 | I0-28651 030-0 | BOLT; S/ABS BRKT | 8 | 2203- | ALL | M10X30 FLANGE | ||
| 173 | I0-91180 110-0 | NUT; S/ABS | 8 | 2203- | ALL | M10 FLANGE | ||
| 201 | I0-91110 516-0 | NUT; PIN LK | 6 | 2203- | NLR85 | M16 | ||
| 065 | I1-51631 005-0 | WASHER; S/ABS | 4 | 2203- | NMR81 | (C) ID=10.8 OD=38 T=6 | ||
| 201 | I0-91111 520-0 | NUT; PIN LK | 6 | 2203- | NMR81 | M20 | ||
| 191 | I8-97696 738-A | U-BOLT; FRT SPR | 4 | 2203- | NMR81 | |||
| 103 | I0-91111 512-0 | NUT; S/ABS TO LWR LINK | 2 | 2203- | ALL | M12 | ||
| 002 | I8-97696 736-A | SPRING ASM; LEAF,FRT | 1 | 2203- | NMR81 | NMR81-TSD; TSDL | ||
| 185 | I0-91510 620-0 | WASHER; LK,PIN | 4 | 2203- | NMR81 | ID=20.2 | ||
| 062 | I8-97695 430-A | ABSORBER ASM; SHOCK,FRT | 2 | 2203- | NLR85 | |||
| 018 | I8-98371 401-0 | WASHER; CENTERING,S/ABS | 4 | 2203- | NMR81 | |||
| 068 | I8-94224 694-0 | BUSHING; S/ABS | 2 | 2203- | NMR81 | TOKICO | ||
| 183 | I7-65210 225-A | SHACKLE; FRT SUSP | 4 | 2203- | NMR81 | |||
| 188 | I8-94150 265-2 | RUBBER; CLAMP,U-BOLT,FRT SPR | 2 | 2203- | ALL | |||
| 183 | I8-98034 341-A | SHACKLE; FRT SUSP | 4 | 2203- | NLR85 |
