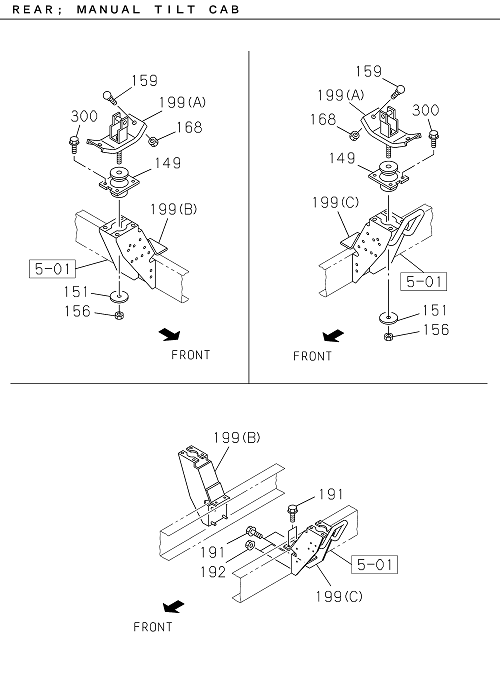

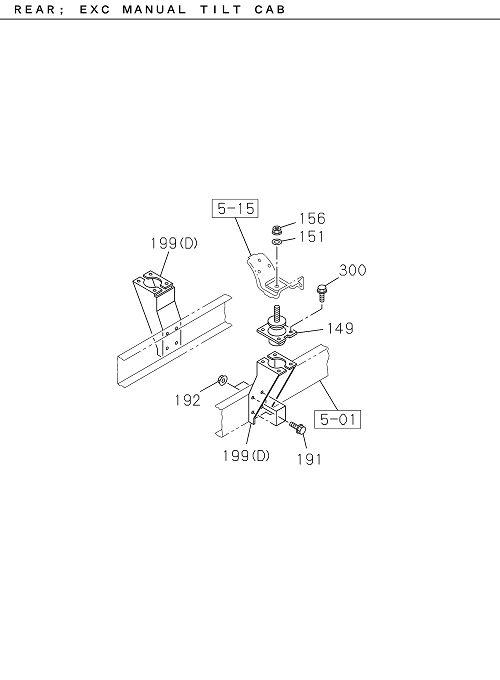

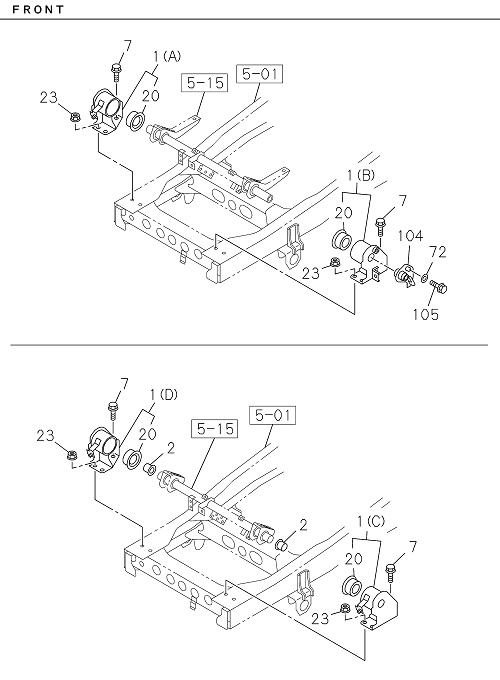

5-10 | CAB MOUNTING; FRAME SIDE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-97061 514-0 | BUSHING; TORSION BAR | 2 | 2203- | NLR85 | NLR85-B; NLR85-BL | ||
| 191 | I0-28651 235-0 | BOLT; BRKT FIX | 8 | 2203- | NLR85 | M12X35 FLANGE | ||
| 001 | I8-98021 410-5 | BRACKET; CAB MTG | 1 | 2203- | NLR85 | (B) NLR85-T | ||
| 149 | I7-22001 216-A | RUBBER; MTG,CAB,UPR RR | 2 | 2203- | NMR81 | H=62 | ||
| 001 | I8-98021 408-5 | BRACKET; CAB MTG | 1 | 2203- | NLR85 | (B) NLR85-B; NLR85-BL | ||
| 168 | I7-05108 010-A | NUT; CUSHION RUBBER,BODY MTG | 4 | 2203- | ALL | M8 FLANGE | ||
| 104 | I8-97383 788-1 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 199 | I8-97493 133-0 | BRACKET; CAB RR MTG | 1 | 2203- | NMR81 | (B) | ||
| 104 | I8-97383 788-1 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | NMR81 | |||
| 199 | I8-97695 766-A | BRACKET; CAB RR MTG | 2 | 2203- | NLR85 | (D) | ||
| 199 | I8-98036 883-0 | BRACKET; CAB RR MTG | 2 | 2203- | NLR85 | (A) NLR85-T; NLR85-TL | ||
| 199 | I8-97695 766-A | BRACKET; CAB RR MTG | 1 | 2203- | NLR85 | (B) | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | NLR85 | M14X35 FLANGE; NLR85-T; NLR85-TL | ||
| 156 | I0-91180 114-0 | NUT; CAB MTG RR | 2 | 2203- | NLR85 | M14 FLANGE; NLR85-B; NLR85-BL | ||
| 191 | I0-28051 235-0 | BOLT; BRKT FIX | 8 | 2203- | NMR81 | M12X35 FLANGE | ||
| 149 | I8-98038 868-0 | RUBBER; MTG,CAB,UPR RR | 2 | 2203- | NLR85 | H=94; NLR85-B; NLR85-BL | ||
| 156 | I0-91111 516-0 | NUT; CAB MTG RR | 2 | 2203- | NMR81 | M16 | ||
| 020 | I8-98007 037-1 | RUBBER; MTG,CAB BRKT | 2 | 2203- | ALL | |||
| 151 | I8-97359 042-1 | WASHER; CAB MTG,RR UPR | 2 | 2203- | NMR81 | ID=17 OD=62 | ||
| 192 | I0-91180 112-0 | NUT; BRKT FIX | 8 | 2203- | ALL | M12 FLANGE | ||
| 300 | I0-28651 020-0 | BOLT; MTG RUBBER | 8 | 2203- | ALL | M10X20 FLANGE | ||
| 007 | I0-28661 440-0 | BOLT; BRKT,CAB TILT | 6 | 2203- | ALL | M14X40 FLANGE | ||
| 001 | I8-98197 476-0 | BRACKET; CAB MTG | 1 | 2203- | NMR81 | (C) | ||
| 020 | I8-98007 037-1 | RUBBER; MTG,CAB BRKT | 1 | 2203- | ALL | |||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | NMR81 | M14X35 FLANGE | ||
| 156 | I0-91111 516-0 | NUT; CAB MTG RR | 2 | 2203- | NLR85 | M16; NLR85-T; NLR85-TL | ||
| 159 | I8-97113 340-0 | RUBBER; CUSHION,CAB MTG | 4 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 151 | I8-97359 040-1 | WASHER; CAB MTG,RR UPR | 2 | 2203- | NLR85 | ID=16.5 OD=58; NLR85-B; NLR85-BL | ||
| 023 | I8-98039 989-0 | NUT; MTG BRKT | 6 | 2203- | ALL | M14 | ||
| 199 | I8-97493 134-0 | BRACKET; CAB RR MTG | 1 | 2203- | NMR81 | (C) | ||
| 159 | I8-97113 340-0 | RUBBER; CUSHION,CAB MTG | 4 | 2203- | NMR81 | |||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | NLR85 | ID=15 OD=36; NLR85-T; NLR85-TL | ||
| 001 | I8-98021 407-6 | BRACKET; CAB MTG | 1 | 2203- | NLR85 | (A) | ||
| 199 | I8-98036 883-0 | BRACKET; CAB RR MTG | 2 | 2203- | NMR81 | (A) | ||
| 149 | I7-22001 216-A | RUBBER; MTG,CAB,UPR RR | 2 | 2203- | NLR85 | H=62; NLR85-T; NLR85-TL | ||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | NMR81 | ID=15 OD=36 | ||
| 151 | I8-97359 042-1 | WASHER; CAB MTG,RR UPR | 2 | 2203- | NLR85 | ID=17 OD=62; NLR85-T; NLR85-TL | ||
| 001 | I8-98197 478-0 | BRACKET; CAB MTG | 1 | 2203- | NMR81 | (D) | ||
| 199 | I8-97695 767-A | BRACKET; CAB RR MTG | 1 | 2203- | NLR85 | (C) NLR85-T | ||
| 156 | I0-91180 114-0 | NUT; CAB MTG RR | 2 | 2203- | NMR81 | M14 FLANGE |
