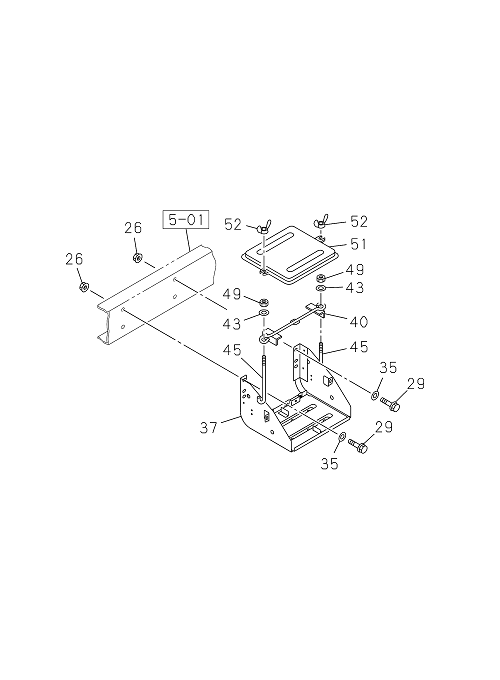

5-20 | BATTERY CARRIER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 051 | I7-42406 321-A | COVER; BATTERY | 1 | 2203- | ALL | |||
| 040 | I5-53615 004-B | CLAMP; BATTERY | 1 | 2203- | ALL | |||
| 045 | I9-53616 615-A | ROD; TENSION,BATTERY | 2 | 2203- | ALL | L=120 | ||
| 026 | I7-05110 010-A | NUT; BRKT | 4 | 2203- | ALL | M10 FLANGE | ||
| 037 | I8-97695 343-A | BRACKET; BATTERY | 1 | 2203- | ALL | |||
| 043 | I0-91614 708-0 | WASHER; PL,CLAMP | 2 | 2203- | ALL | ID=8.4 OD=22 T=2 | ||
| 049 | I7-05108 010-A | NUT; ROD,BATTERY | 2 | 2203- | ALL | M8 FLANGE | ||
| 052 | I0-91118 408-0 | NUT; WING,COVER FIX | 2 | 2203- | ALL | M8 WING NUT | ||
| 029 | I0-50541 030-0 | BOLT; BRKT TO FRAME | 4 | 2203- | ALL | M10X30 W/LK WASHER | ||
| 035 | I0-91610 610-0 | WASHER; PL,BATTERY CARRIER | 4 | 2203- | ALL | ID=10.5 OD=22 T=1.6 |
