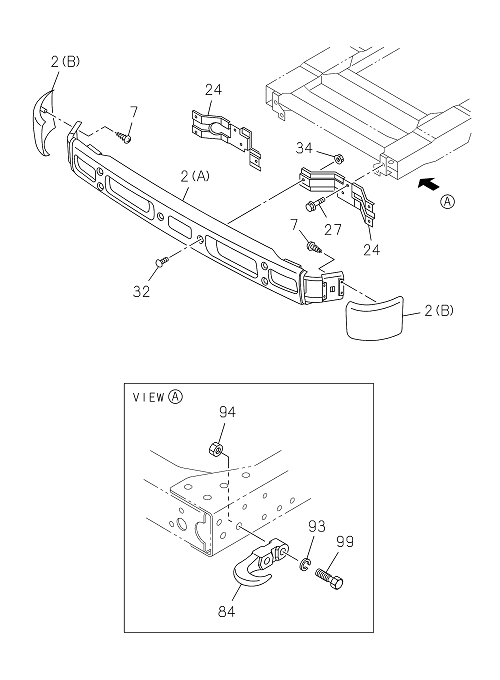

6-01 | FRONT BUMPER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 027 | I8-98092 250-0 | BOLT; BUMPER TO BACK BAR | 4 | 2203- | ALL | M10X30 HEXALOBULAR | ||
| 099 | I8-97301 262-0 | BOLT; HOOK | 2 | 2203- | ALL | M14X55 | ||
| 002 | I8-97695 553-B | BUMPER; FRT,CENTER | 1 | 2203- | ALL | (B) BLACK | ||
| 034 | I5-09440 006-0 | NUT; BRKT,BUMPER | 6 | 2203- | ALL | M10 FLANGE | ||
| 084 | I8-94249 270-A | HOOK | 1 | 2203- | ALL | |||
| 024 | I8-97695 555-A | BAR; FRT BUMPER | 1 | 2203- | ALL | |||
| 032 | I8-94365 131-1 | BOLT; BRKT,BUMPER | 6 | 2203- | ALL | M10X25 BLACK | ||
| 002 | I8-97695 554-B | BUMPER; FRT,CENTER | 1 | 2203- | ALL | (B) BLACK | ||
| 007 | I0-74360 516-0 | SCREW; FRT BUMPER | 8 | 2203- | ALL | M5X16 TAPPING W/PL WASHER | ||
| 093 | I0-91510 814-0 | WASHER; LK,HOOK | 2 | 2203- | ALL | ID=14.2 | ||
| 024 | I8-97695 556-A | BAR; FRT BUMPER | 1 | 2203- | ALL | |||
| 094 | I0-91110 514-0 | NUT; HOOK | 2 | 2203- | ALL | M14 | ||
| 002 | I8-97695 552-A | BUMPER; FRT,CENTER | 1 | 2203- | ALL | (A) |
