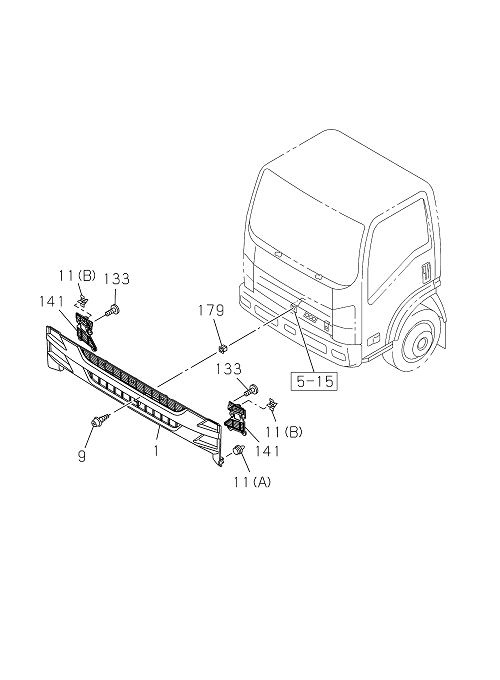

6-03 | RADIATOR GRILLE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 011 | I8-98025 698-0 | CLIP; RAD GRILLE | 5 | 2203- | ALL | (B) | ||
| 009 | I0-74165 516-0 | SCREW; RAD GRILLE | 1 | 2203- | ALL | M5X16 TAPPING W/PL WASHER | ||
| 001 | I6-97429 372-0 | GRILLE; RAD | 1 | 2203- | ALL | (IADG) | ||
| 001 | I8-97429 372-B | GRILLE; RAD | 1 | 2203- | ALL | |||
| 141 | I8-98244 643-0 | COVER; RAD GRILLE | 1 | 2203- | ALL | |||
| 141 | I8-98244 644-0 | COVER; RAD GRILLE | 1 | 2203- | ALL | |||
| 179 | I8-94291 927-0 | RETAINER; GRILLE,RAD | 1 | 2203- | ALL | D=7X7 L=7.5 | ||
| 133 | I0-72180 512-0 | SCREW; COVER | 10 | 2203- | ALL | T25 M5X12 TAPPING HEXALOBULAR | ||
| 011 | I8-97581 651-2 | CLIP; RAD GRILLE | 2 | 2203- | ALL | (A) |
