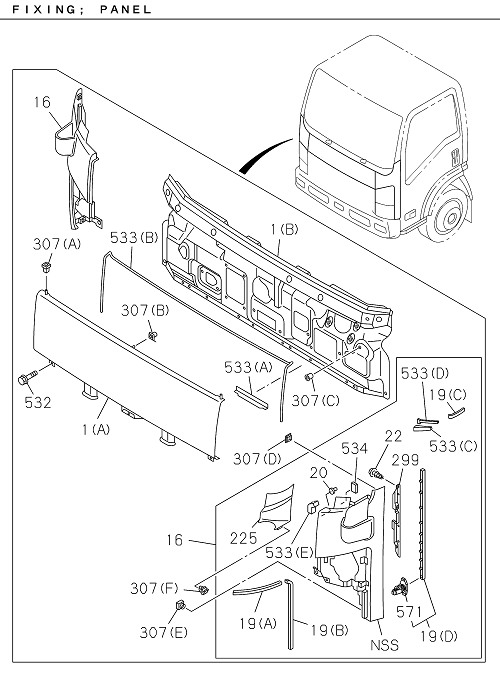

| 532 |
I0-52010 616-0 |
|
BOLT; FRT PANEL |
4 |
2203- |
|
ALL |
M6X16 W/LK&PL WASHER |
| 022 |
I0-74360 410-0 |
|
SCREW; FRT PANEL SIDE |
6 |
2203- |
|
ALL |
M4X10 TAPPING W/PL WASHER |
| 533 |
I8-98021 003-1 |
|
SEAL; FRT PANEL |
1 |
2203- |
|
ALL |
(A) |
| 225 |
I8-98036 521-3 |
|
COVER; SIDE,FRT |
1 |
2203- |
|
ALL |
PLEASE PAINT TO MATCH BODY COLOR |
| 016 |
I6-97405 625-0 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
ALL |
(IADG) |
| 533 |
I8-98043 511-1 |
|
SEAL; FRT PANEL |
2 |
2203- |
|
ALL |
(D) |
| 647 |
I8-98006 327-0 |
|
REINFORCEMENT; WIPER MOTOR |
1 |
2203- |
|
ALL |
|
| 307 |
I8-97410 738-0 |
|
GROMMET; FRT PANEL |
2 |
2203- |
|
ALL |
(D) |
| 299 |
I8-98028 144-1 |
|
COVER; FRT PANEL SIDE |
1 |
2203- |
|
ALL |
|
| 543 |
I8-97585 988-2 |
|
CLOSING; FRT MTG RAIL |
1 |
2203- |
|
ALL |
|
| 307 |
I8-98021 968-0 |
|
GROMMET; FRT PANEL |
1 |
2203- |
|
ALL |
(A) |
| 307 |
I8-98021 969-0 |
|
GROMMET; FRT PANEL |
1 |
2203- |
|
ALL |
(A) |
| 533 |
I8-97553 114-0 |
|
SEAL; FRT PANEL |
1 |
2203- |
|
ALL |
(B) |
| 646 |
I8-98023 099-1 |
|
REINFORCEMENT; DASH |
1 |
2203- |
|
ALL |
|
| 533 |
I8-98043 510-0 |
|
SEAL; FRT PANEL |
1 |
2203- |
|
ALL |
(C) |
| 533 |
I8-98043 509-0 |
|
SEAL; FRT PANEL |
1 |
2203- |
|
ALL |
(C) |
| 019 |
I8-98038 608-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
ALL |
(C) |
| 020 |
I8-97410 739-1 |
|
CLIP; FRT PANEL SIDE |
4 |
2203- |
|
ALL |
|
| 571 |
I8-98027 457-0 |
|
CLIP; SEAL |
20 |
2203- |
|
ALL |
NATURAL |
| 019 |
I8-98028 750-3 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
ALL |
(D) |
| 646 |
I8-98023 098-1 |
|
REINFORCEMENT; DASH |
1 |
2203- |
|
ALL |
|
| 019 |
I8-98062 215-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
ALL |
(B) |
| 225 |
I8-98036 520-3 |
|
COVER; SIDE,FRT |
1 |
2203- |
|
ALL |
PLEASE PAINT TO MATCH BODY COLOR |
| 534 |
I8-98059 208-1 |
|
FASTENER |
2 |
2203- |
|
ALL |
20X30 |

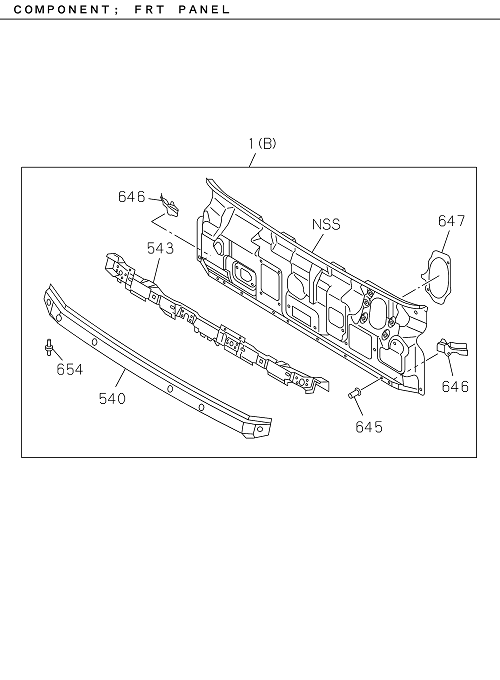

| 540 |
I8-97585 962-3 |
|
PANEL; FRONT,OUTER |
1 |
2203- |
|
ALL |
|
| 307 |
I8-98034 363-1 |
|
GROMMET; FRT PANEL |
4 |
2203- |
|
ALL |
(C) OD=20 |
| 645 |
I8-98013 112-0 |
|
STUD; FRT PANEL |
6 |
2203- |
|
ALL |
M6X12 |
| 001 |
I8-98186 848-A |
|
PANEL ASM; FRT |
1 |
2203- |
|
ALL |
(B) |
| 299 |
I8-98028 145-1 |
|
COVER; FRT PANEL SIDE |
1 |
2203- |
|
ALL |
|
| 019 |
I8-98028 749-3 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
ALL |
(D) |
| 001 |
I8-98122 692-0 |
|
PANEL ASM; FRT |
1 |
2203- |
|
ALL |
(A) |
| 016 |
I8-97405 625-B |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
ALL |
WHITE |
| 533 |
I8-98064 939-0 |
|
SEAL; FRT PANEL |
2 |
2203- |
|
ALL |
(E) |
| 654 |
I8-98021 967-2 |
|
PIN; FRT PANEL |
2 |
2203- |
|
ALL |
|
| 016 |
I8-97405 621-B |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
ALL |
WHITE |
| 307 |
I8-98023 229-1 |
|
GROMMET; FRT PANEL |
1 |
2203- |
|
ALL |
(B) |
| 019 |
I8-98035 268-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
ALL |
(A) |
| 307 |
I8-98021 300-1 |
|
GROMMET; FRT PANEL |
4 |
2203- |
|
ALL |
(E) |
| 016 |
I6-97405 621-0 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
ALL |
(IADG) |
| 307 |
I8-98028 743-0 |
|
GROMMET; FRT PANEL |
2 |
2203- |
|
ALL |
(F) |
