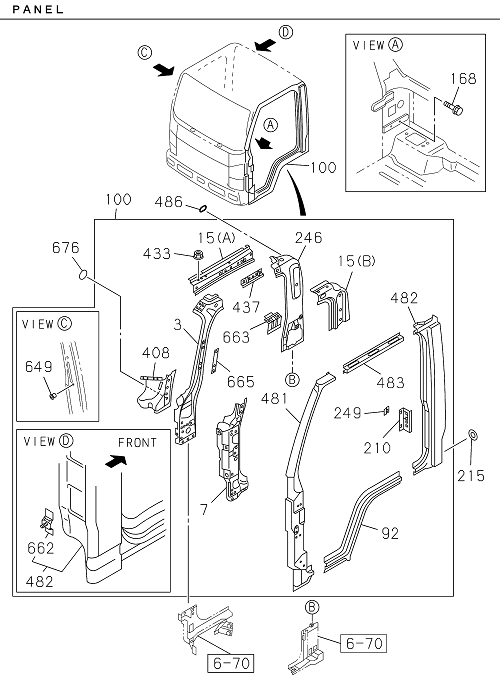

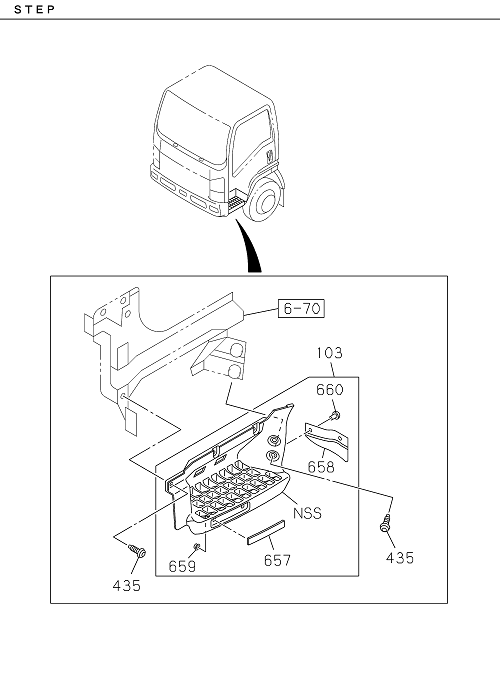

6-20 | SIDE PANEL AND STEP
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 663 | I8-97585 208-2 | BRACKET; AIR | 1 | 2203- | ALL | |||
| 482 | I8-98055 463-1 | PANEL; SIDE RR PILLAR | 1 | 2203- | ALL | |||
| 665 | I8-97847 343-0 | REINFORCEMENT; GRIP,ASSIST | 2 | 2305- | ALL | |||
| 215 | I8-94122 971-0 | GROMMET; RR PILLAR | 1 | 2203- | NLR85 | OD=35; NLR85-B; NLR85-BL | ||
| 249 | I8-98012 287-1 | REINFORCEMENT; RR PILLAR | 2 | 2203- | ALL | |||
| 662 | I8-97584 611-1 | BRACKET; DUCT | 1 | 2203- | ALL | |||
| 015 | I8-97585 294-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | ALL | (A) | ||
| 663 | I8-97585 207-2 | BRACKET; AIR | 1 | 2203- | ALL | |||
| 103 | I8-98022 774-A | PLATE; STEP | 1 | 2203- | ALL | |||
| 483 | I8-98055 460-0 | PANEL; SIDE CANTRAIL | 1 | 2203- | ALL | |||
| 437 | I8-98039 019-0 | BRACKET; ROOF RAIL | 1 | 2203- | ALL | |||
| 210 | I8-97509 447-0 | PANEL; DOOR STRIKER REINF | 1 | 2203- | ALL | |||
| 376 | I8-97585 292-2 | PANEL; CANT RAIL SIDE | 1 | 2305- | ALL | |||
| 007 | I8-98377 771-0 | REINFORCEMENT; HINGE | 1 | 2203- | ALL | |||
| 665 | I8-97585 314-0 | REINFORCEMENT; GRIP,ASSIST | 2 | 2203-2304 | ALL | |||
| 168 | I0-38050 612-0 | BOLT; BODY SIDE PANEL | 8 | 2203- | ALL | T25 M6X12 HEXALOBULAR SOCKET | ||
| 015 | I8-97585 295-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | ALL | (A) | ||
| 658 | I8-98037 560-1 | FLAP; STEP | 2 | 2203- | ALL | |||
| 246 | I8-97586 154-3 | PANEL; RR PILLAR,INNER | 1 | 2203- | ALL | |||
| 376 | I8-97585 293-2 | PANEL; CANT RAIL SIDE | 1 | 2305- | ALL | |||
| 483 | I8-98055 458-0 | PANEL; SIDE CANTRAIL | 1 | 2203- | ALL | |||
| 246 | I8-97585 301-3 | PANEL; RR PILLAR,INNER | 1 | 2203- | ALL | |||
| 435 | I8-98004 345-0 | BOLT; RR STEP | 12 | 2203- | ALL | M8X18 | ||
| 657 | I8-97378 910-0 | REFLECTOR; REFLEX | 2 | 2203- | ALL | AMBER | ||
| 100 | I8-97498 758-0 | PANEL ASM; BODY SIDE | 1 | 2203- | ALL | |||
| 676 | I1-76798 029-0 | SEAL | 1 | 2203- | ALL | OD=20 T=0.05 BLACK | ||
| 103 | I8-98022 775-A | PLATE; STEP | 1 | 2203- | ALL | |||
| 481 | I8-98055 451-0 | PANEL; SIDE FRT PILLAR | 1 | 2203- | ALL | |||
| 482 | I8-98055 464-1 | PANEL; SIDE RR PILLAR | 1 | 2203- | ALL | |||
| 649 | I8-97249 574-0 | NUT; POP | 2 | 2203- | ALL | M5 POP NUT | ||
| 210 | I8-97509 448-0 | PANEL; DOOR STRIKER REINF | 1 | 2203- | ALL | |||
| 007 | I8-97585 240-3 | REINFORCEMENT; HINGE | 1 | 2203- | ALL | |||
| 408 | I8-97585 317-4 | GUSSET; PILLAR | 1 | 2203- | ALL | |||
| 092 | I8-98055 461-1 | PANEL; SIDE SILL,CAB | 1 | 2203- | ALL | |||
| 481 | I8-98055 470-0 | PANEL; SIDE FRT PILLAR | 1 | 2203- | ALL | |||
| 409 | I8-97585 303-2 | REINFORCEMENT; SEAT BELT | 1 | 2305- | ALL | |||
| 003 | I8-98058 237-1 | PANEL; CLOSING,FRT PILLAR | 1 | 2203- | ALL | |||
| 437 | I8-98039 020-0 | BRACKET; ROOF RAIL | 1 | 2203- | ALL | |||
| 486 | I8-98059 421-0 | SEAL; BODY SIDE | 4 | 2203- | ALL | OD=20 T=0.05 WHITE | ||
| 015 | I8-97585 303-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | ALL | (B) | ||
| 409 | I8-97585 302-1 | REINFORCEMENT; SEAT BELT | 1 | 2305- | ALL | |||
| 003 | I8-98058 236-1 | PANEL; CLOSING,FRT PILLAR | 1 | 2203- | ALL | |||
| 092 | I8-98055 462-1 | PANEL; SIDE SILL,CAB | 1 | 2203- | ALL | |||
| 660 | I8-98111 558-0 | CLIP; FLAP | 4 | 2203- | ALL | |||
| 408 | I8-97585 316-3 | GUSSET; PILLAR | 1 | 2203- | ALL | |||
| 015 | I8-97585 302-1 | PANEL; CANT RAIL SIDE | 1 | 2203- | ALL | (B) | ||
| 433 | I9-09114 086-0 | NUT; HEADER SHELF | 4 | 2203- | ALL | M6 | ||
| 100 | I8-97498 793-0 | PANEL ASM; BODY SIDE | 1 | 2203- | ALL | |||
| 659 | I8-97811 510-0 | CLIP; SPRING NUT | 4 | 2203- | ALL |
