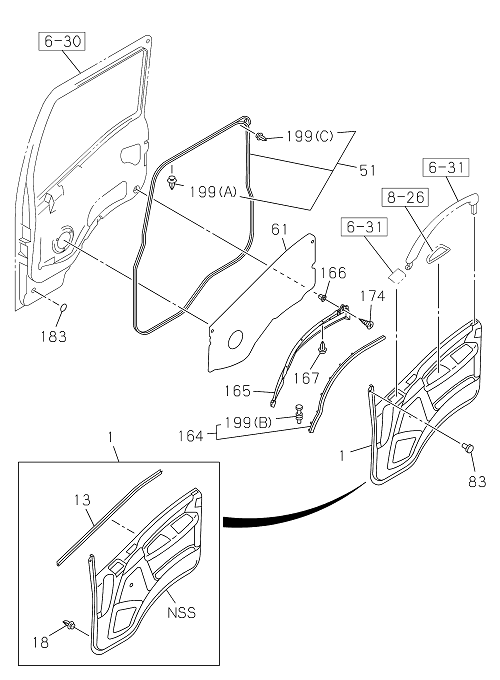

6-35 | FRONT DOOR TRIM
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 174 | I0-72180 512-0 | SCREW; LINER | 4 | 2203- | ALL | T25 M5X12 TAPPING HEXALOBULAR | ||
| 051 | I8-98077 429-A | WEATHERSTRIP; FRONT DOOR | 1 | 2203- | ALL | |||
| 199 | I8-98062 270-0 | CLIP; SEAL | 80 | 2203- | ALL | (A) NATURAL | ||
| 199 | I8-98062 271-0 | CLIP; SEAL | 2 | 2203- | ALL | (C) RED | ||
| 061 | I8-98029 394-A | SEAL; WATER,DOOR PAD | 1 | 2203- | ALL | |||
| 165 | I8-98022 761-1 | LINER; DOOR LWR | 1 | 2203- | ALL | |||
| 083 | I8-97405 308-0 | CLIP; DOOR TRIM | 2 | 2203- | ALL | GRAY | ||
| 061 | I8-98029 395-A | SEAL; WATER,DOOR PAD | 1 | 2203- | ALL | |||
| 001 | I8-97696 053-A | PAD; TRIM,FRT DOOR | 1 | 2203- | ALL | GRAY | ||
| 013 | I8-98029 202-1 | SEAL; DOOR TRIM | 1 | 2203- | ALL | INNER | ||
| 183 | I1-76798 029-0 | SEAL; LOCATION HOLE | 2 | 2203- | ALL | OD=25 BLACK | ||
| 018 | I8-98004 025-0 | CLIP; DOOR PAD | 14 | 2203- | ALL | |||
| 199 | I8-98027 457-0 | CLIP; SEAL | 20 | 2203- | ALL | (B) NATURAL | ||
| 166 | I8-94279 078-A | PLUG; HOLE | 4 | 2203- | ALL | D=8.6X7.7 L=7.5 | ||
| 013 | I8-98029 201-1 | SEAL; DOOR TRIM | 1 | 2203- | ALL | INNER | ||
| 051 | I8-98029 199-A | WEATHERSTRIP; FRONT DOOR | 1 | 2203- | ALL | |||
| 165 | I8-98022 760-1 | LINER; DOOR LWR | 1 | 2203- | ALL | |||
| 164 | I8-98022 741-A | SEAL; SUB,SILL SIDE | 2 | 2203- | ALL | |||
| 167 | I1-09983 105-0 | CLIP; LINER | 6 | 2203- | ALL | D6X16 PUSH RIVET | ||
| 001 | I8-97696 054-A | PAD; TRIM,FRT DOOR | 1 | 2203- | ALL | GRAY |
