6-47 | MUD GUARD AND INSULATOR
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

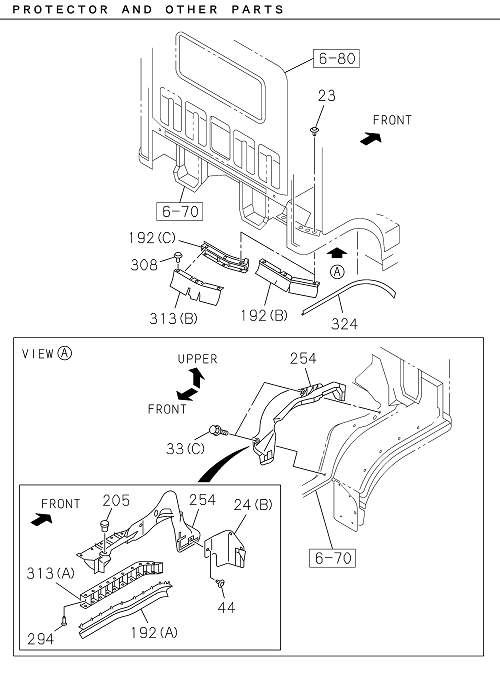

| 324 | I8-98022 786-2 | PROTECTOR; FRT FENDER | 2 | 2203- | ALL | |||

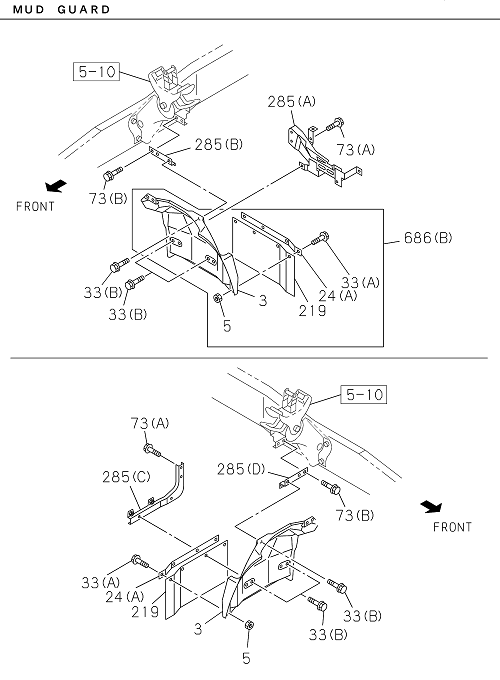

| 219 | I8-98010 741-A | FLAP; MUD GUARD | 2 | 2203- | ALL | |||

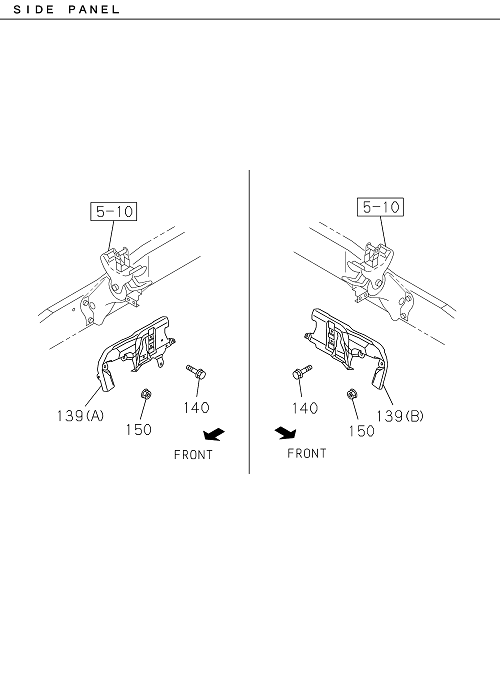

| 139 | I8-97388 535-1 | PANEL; SIDE | 1 | 2203- | NLR85 | (A) | ||
| 285 | I8-98131 079-0 | BRACKET; MUD COVER | 1 | 2203- | ALL | (C) | ||
| 139 | I8-97388 534-0 | PANEL; SIDE | 1 | 2203- | NLR85 | (B) | ||
| 073 | I0-28650 825-0 | BOLT; MUD COVER BRKT | 4 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 313 | I8-98106 049-0 | EXTENSION; M/GUARD RR | 1 | 2203- | NMR81 | (A) | ||
| 294 | I8-94279 921-0 | CLIP; MUD COVER | 22 | 2203- | NMR81 | OD=12 L=14.8 | ||
| 003 | I8-97695 786-A | GUARD; MUD,RR | 1 | 2203- | ALL | |||
| 024 | I8-97695 723-A | PLATE; MUD COVER | 2 | 2203- | ALL | (A) | ||
| 024 | I8-98154 261-0 | PLATE; MUD COVER | 2 | 2203- | ALL | (B) | ||
| 205 | I8-94242 150-0 | FASTENER; MUD COVER | 2 | 2203- | ALL | D=5.8 SCREW & GROMMET NYLON | ||
| 033 | I8-98061 108-0 | BOLT; MUD COVER | 4 | 2203- | ALL | (C) M6X16 FLANGE | ||
| 150 | I7-05108 010-A | NUT; SIDE PANEL | 2 | 2203- | ALL | M8 FLANGE | ||
| 150 | I7-05108 010-A | NUT; SIDE PANEL | 1 | 2203- | ALL | M8 FLANGE | ||
| 140 | I1-09030 095-0 | BOLT; SIDE PANEL | 6 | 2203- | ALL | M8X30 W/LK&PL WASHER | ||
| 285 | I8-98169 721-0 | BRACKET; MUD COVER | 1 | 2203- | ALL | (A) | ||
| 308 | I8-97997 832-0 | FASTENER; MUD GUARD | 6 | 2203- | ALL | OD=8.3 | ||
| 254 | I8-98115 263-0 | COVER; MUD,VALANCE | 1 | 2203- | ALL | |||
| 192 | I8-98106 053-0 | SEAL; MUD COVER | 1 | 2203- | NMR81 | (C) | ||
| 023 | I8-97997 832-0 | FASTENER; MUD COVER | 6 | 2203- | ALL | OD=8.3 | ||
| 285 | I8-98059 689-0 | BRACKET; MUD COVER | 1 | 2203- | ALL | (D) | ||
| 285 | I8-98038 865-1 | BRACKET; MUD COVER | 1 | 2203- | ALL | (B) | ||
| 192 | I8-98192 388-A | SEAL; MUD COVER | 2 | 2203- | NLR85 | (B) | ||
| 033 | I1-09030 093-0 | BOLT; MUD COVER | 8 | 2203- | ALL | (B) M8X25 W/LK&PL WASHER | ||
| 073 | I0-28651 025-0 | BOLT; MUD COVER BRKT | 4 | 2203- | ALL | (A) M10X25 FLANGE | ||
| 192 | I8-98022 756-2 | SEAL; MUD COVER | 1 | 2203- | ALL | (A) | ||
| 003 | I8-97695 785-A | GUARD; MUD,RR | 1 | 2203- | ALL | |||
| 140 | I1-09030 095-0 | BOLT; SIDE PANEL | 7 | 2203- | ALL | M8X30 W/LK&PL WASHER | ||
| 254 | I8-98115 264-0 | COVER; MUD,VALANCE | 1 | 2203- | ALL | |||
| 192 | I8-98022 755-1 | SEAL; MUD COVER | 1 | 2203- | ALL | (A) | ||
| 139 | I8-98331 753-0 | PANEL; SIDE | 1 | 2203- | NMR81 | (A) | ||
| 313 | I8-98106 050-0 | EXTENSION; M/GUARD RR | 1 | 2203- | NMR81 | (A) | ||
| 150 | I8-97329 625-0 | NUT; SIDE PANEL | 1 | 2203- | NLR85 | M8 W/DISHED WASHER | ||
| 192 | I8-98106 052-0 | SEAL; MUD COVER | 1 | 2203- | NMR81 | (C) | ||
| 313 | I8-98192 388-A | EXTENSION; M/GUARD RR | 2 | 2203- | ALL | (B) | ||
| 044 | I1-76378 155-0 | CLIP; ANCHOR | 6 | 2203- | ALL | OD=16 L=11 | ||
| 139 | I8-98331 754-0 | PANEL; SIDE | 1 | 2203- | NMR81 | (B) | ||
| 005 | I8-98227 380-0 | NUT; FLAP RUBBER | 8 | 2203- | ALL | M6 FLANGE | ||
| 033 | I8-98227 381-0 | BOLT; MUD COVER | 8 | 2203- | ALL | (A) M6X16 FLANGE |
