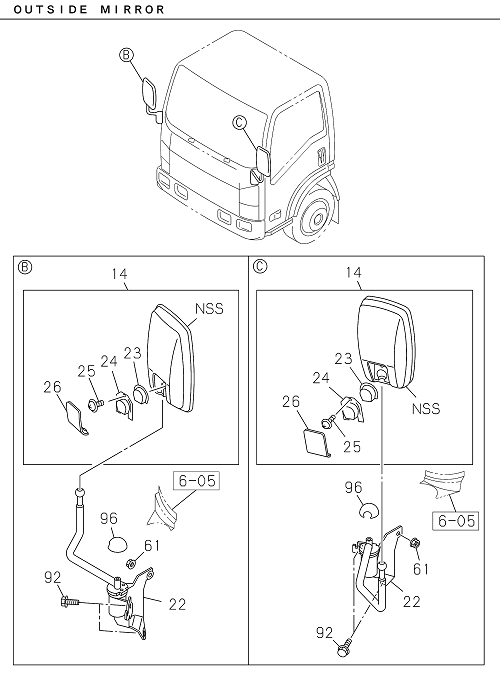

7-20 | MIRROR AND STAY MIRROR
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 061 | I7-05108 010-A | NUT; STAY,OUTSIDE MIRROR | 2 | 2203- | ALL | M8 FLANGE | ||
| 096 | I8-98027 552-2 | CAP; MIRROR STAY | 2 | 2203- | ALL | |||
| 024 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 2203- | ALL | T=1.6 | ||

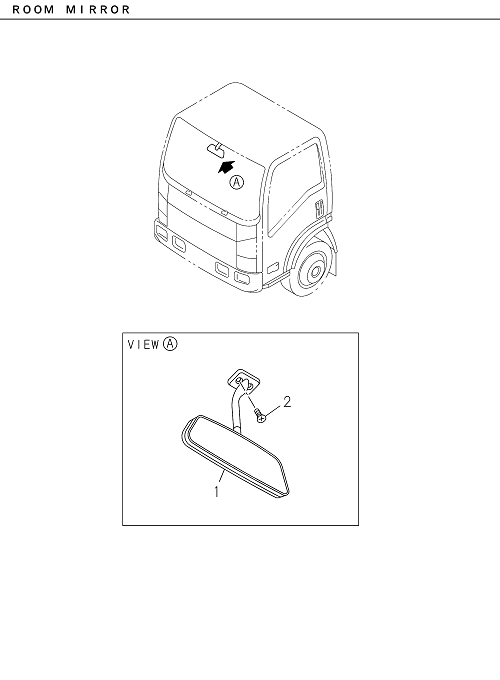

| 001 | I8-97695 746-A | MIRROR; ROOM | 1 | 2203- | ALL | |||
| 092 | I0-28650 825-0 | BOLT; STAY BRKT,MIRROR | 4 | 2203- | ALL | M8X25 FLANGE | ||
| 002 | I8-94279 341-0 | SCREW; MIRROR TO BODY | 2 | 2203- | ALL | M5X16 | ||
| 092 | I0-28650 825-0 | BOLT; STAY BRKT,MIRROR | 4 | 2203- | ALL | M8X25 FLANGE | ||
| 001 | I8-97695 746-A | MIRROR; ROOM | 1 | 2203- | ALL | |||
| 025 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 2203- | ALL | M6X30 | ||
| 024 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 2203- | ALL | T=1.6 | ||
| 022 | I8-98070 505-A | STAY; OUTSIDE MIRROR | 1 | 2203- | NLR85 | |||
| 022 | I8-98038 224-A | STAY; OUTSIDE MIRROR | 1 | 2203- | ALL | |||
| 002 | I8-94279 341-0 | SCREW; MIRROR TO BODY | 2 | 2203- | ALL | M5X16 | ||
| 022 | I8-98038 224-A | STAY; OUTSIDE MIRROR | 1 | 2203- | ALL | |||
| 026 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 2203- | ALL | T=2.3 | ||
| 025 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 2203- | ALL | M6X30 | ||
| 022 | I8-98070 509-A | STAY; OUTSIDE MIRROR | 1 | 2203- | NMR81 | |||
| 014 | I7-45910 220-A | MIRROR ASM; OUTSIDE | 1 | 2203- | ALL | |||
| 014 | I7-45910 220-A | MIRROR ASM; OUTSIDE | 1 | 2203- | ALL | |||
| 096 | I8-98027 552-2 | CAP; MIRROR STAY | 2 | 2203- | ALL | |||
| 014 | I6-45910 220-0 | MIRROR ASM; OUTSIDE | 1 | 2203- | ALL | (IADG) | ||
| 022 | I8-98070 509-A | STAY; OUTSIDE MIRROR | 1 | 2203- | NMR81 | |||
| 014 | I6-45910 220-0 | MIRROR ASM; OUTSIDE | 1 | 2203- | ALL | (IADG) | ||
| 022 | I8-98070 505-A | STAY; OUTSIDE MIRROR | 1 | 2203- | NLR85 | |||
| 026 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 2203- | ALL | T=2.3 | ||
| 023 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 2203- | ALL | T=2.0 | ||
| 061 | I7-05108 010-A | NUT; STAY,OUTSIDE MIRROR | 2 | 2203- | ALL | M8 FLANGE | ||
| 023 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 2203- | ALL | T=2.0 |
