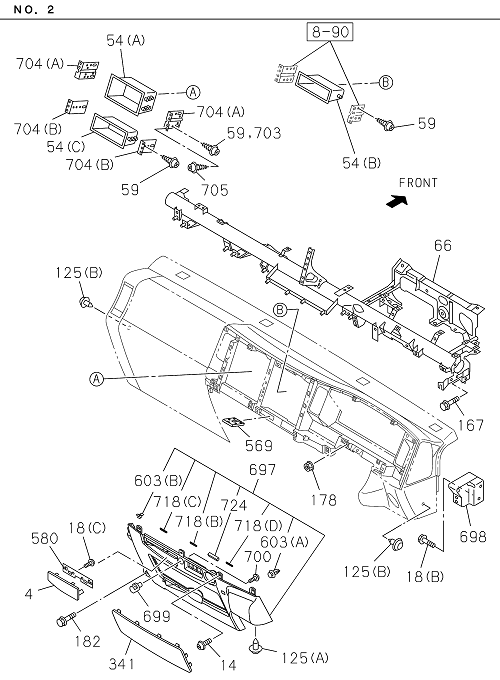

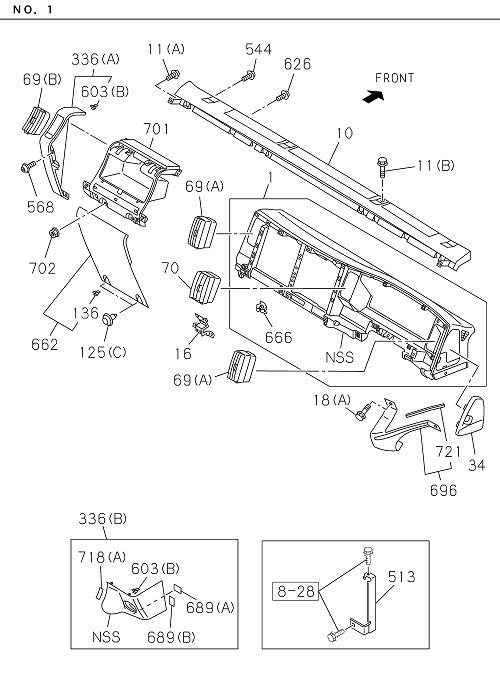

7-40 | INSTRUMENT PANEL AND BOX
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 054 | I8-97408 865-4 | POCKET; CENTER CLUSTER | 1 | 2203- | ALL | (C) H=69.8 BLACK | ||
| 018 | I8-98058 632-0 | BOLT; BRKT | 3 | 2203- | ALL | (C) SCREW T25 L=10 HEXALOBULAR | ||
| 699 | I8-97408 927-0 | HOOK; INST PANEL | 1 | 2203- | ALL | GRAY | ||
| 011 | I8-98018 440-0 | BOLT; INST PNL | 4 | 2203- | ALL | (B) M6X25 W/LK&PL WASHER | ||
| 698 | I8-98089 257-1 | BRACKET; INST BAR SIDE | 1 | 2203- | ALL | |||
| 603 | I8-98021 271-0 | CLIP; COVER | 3 | 2203- | ALL | (B) | ||
| 702 | I0-91180 106-0 | NUT; TRAY | 2 | 2203- | ALL | M6 FLANGE | ||
| 011 | I0-72180 516-0 | BOLT; INST PNL | 8 | 2203- | ALL | (A) SCREW M5X16 TAPPING HEXALOBULAR | ||
| 704 | I8-97585 618-2 | BRACKET; CENTER POCKET | 2 | 2203- | ALL | (A) | ||
| 054 | I8-97407 129-4 | POCKET; CENTER CLUSTER | 1 | 2203- | ALL | (A) H=108.4 BLACK | ||
| 703 | I8-98058 632-0 | SCREW; CENTER POCKET | 4 | 2203- | ALL | T25 L=10 HEXALOBULAR | ||
| 626 | I8-94279 804-0 | RETAINER | 2 | 2203- | ALL | OD=15 BLACK | ||

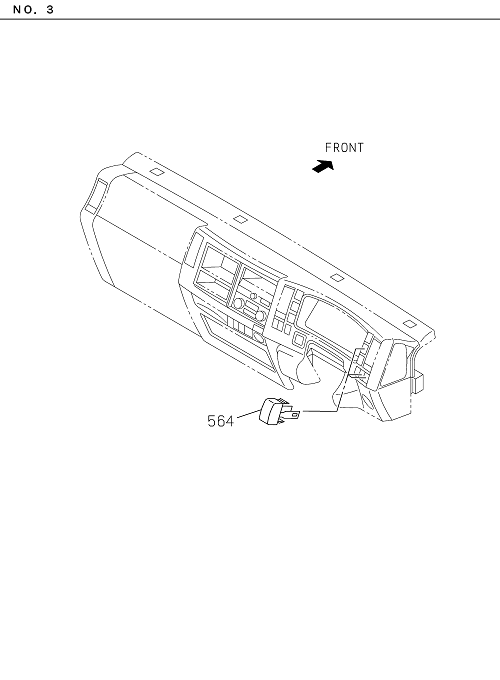

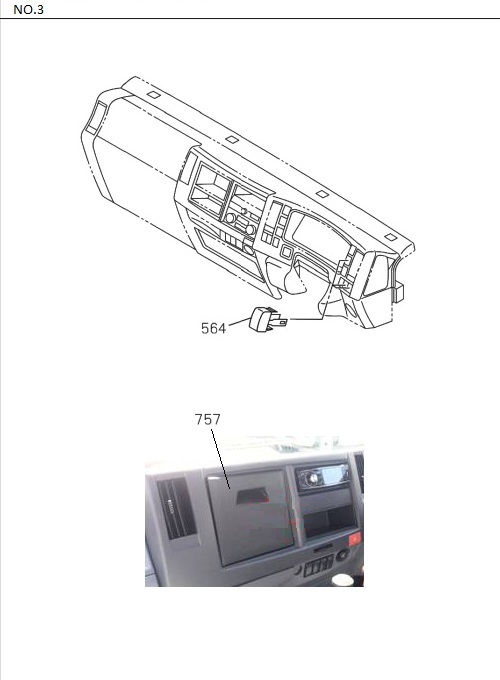

| 564 | I8-98025 954-1 | COVER; SW | 3 | 2203- | ALL | |||
| 018 | I0-38050 612-0 | BOLT; BRKT | 2 | 2203- | ALL | (A) SCREW T25 M6X12 HEXALOBULAR SOCKET | ||
| 568 | I0-72180 516-0 | BOLT; COVER | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 054 | I8-97408 864-4 | POCKET; CENTER CLUSTER | 1 | 2203- | ALL | (B) H=58.4 BLACK | ||
| 010 | I8-97419 684-A | PANEL ASM; GARNISH | 1 | 2203- | ALL | GRAY | ||
| 603 | I8-98004 025-0 | CLIP; COVER | 1 | 2203- | ALL | (A) | ||
| 689 | I8-98061 778-1 | SEAL; INST | 1 | 2203- | ALL | (B) 18X170 | ||
| 125 | I8-97419 968-1 | CLIP; INST PANEL | 2 | 2203- | ALL | (C) GRAY | ||
| 018 | I0-38050 612-0 | BOLT; BRKT | 2 | 2203- | ALL | (A) SCREW T25 M6X12 HEXALOBULAR SOCKET | ||
| 136 | I8-98021 271-0 | CLIP; INST COVER | 5 | 2203- | ALL | |||
| 069 | I8-98028 561-2 | GRILLE; SIDE,AIR OUTLET | 2 | 2203- | ALL | (A) | ||
| 568 | I0-72180 516-0 | BOLT; COVER | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 718 | I8-98200 040-0 | SEAL; COVER | 1 | 2203- | ALL | (C) 8X80 | ||
| 125 | I8-97408 063-0 | CLIP; INST PANEL | 1 | 2203- | ALL | (A) GRAY | ||
| 136 | I8-98021 271-0 | CLIP; INST COVER | 5 | 2203- | ALL | |||
| 569 | I8-97410 276-1 | HOLDER; CARD | 1 | 2203- | ALL | |||
| 336 | I8-97405 259-5 | COVER; INST PANEL SIDE | 1 | 2203- | ALL | (A) GRAY | ||
| 341 | I8-97423 658-0 | LID; FUSE BOX | 1 | 2203- | ALL | GRAY | ||
| 701 | I8-97422 090-A | TRAY; INST | 1 | 2203- | ALL | GRAY | ||
| 182 | I0-72180 516-0 | BOLT; BRKT,INST PANEL | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 697 | I8-97423 656-A | PANEL; INST CENTER | 1 | 2203- | ALL | GRAY | ||
| 698 | I8-98089 256-1 | BRACKET; INST BAR SIDE | 1 | 2203- | ALL | |||
| 718 | I8-98200 040-0 | SEAL; COVER | 1 | 2203- | ALL | (C) 8X80 | ||
| 718 | I8-98159 538-0 | SEAL; COVER | 1 | 2203- | ALL | (A) 60X15 | ||
| 059 | I8-98058 632-0 | SCREW; CLUSTER POCKET | 4 | 2203- | ALL | T25 L=10 HEXALOBULAR | ||
| 178 | I0-91180 106-0 | NUT; INST PANEL | 1 | 2203- | ALL | M6 FLANGE | ||
| 018 | I8-98058 632-0 | BOLT; BRKT | 3 | 2203- | ALL | (C) SCREW T25 L=10 HEXALOBULAR | ||
| 666 | I8-98037 629-0 | INSERT; INST PANEL | 15 | 2203- | ALL | |||
| 336 | I8-97418 759-2 | COVER; INST PANEL SIDE | 1 | 2203- | ALL | (B) GRAY | ||
| 001 | I8-97405 253-A | PANEL; INST | 1 | 2203- | ALL | GRAY | ||
| 016 | I8-97585 612-2 | BRACKET; INST PNL | 1 | 2203- | ALL | |||
| 018 | I0-28050 816-0 | BOLT; BRKT | 4 | 2203- | ALL | (B) M8X16 FLANGE | ||
| 018 | I0-28050 816-0 | BOLT; BRKT | 4 | 2203- | ALL | (B) M8X16 FLANGE | ||
| 689 | I8-98061 777-0 | SEAL; INST | 1 | 2203- | ALL | (A) 7X31 | ||
| 697 | I8-97423 656-A | PANEL; INST CENTER | 1 | 2203- | ALL | GRAY | ||
| 704 | I8-97585 616-2 | BRACKET; CENTER POCKET | 2 | 2203- | ALL | (B) | ||
| 125 | I8-97408 817-0 | CLIP; INST PANEL | 2 | 2203- | ALL | (B) GRAY | ||
| 182 | I0-72180 516-0 | BOLT; BRKT,INST PANEL | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 034 | I8-97405 260-1 | LID; OIL TANK | 1 | 2203- | ALL | GRAY | ||
| 167 | I8-97264 766-0 | BOLT; REINF TO INST | 4 | 2203- | ALL | M8X23 FLANGE | ||
| 125 | I8-97408 817-0 | CLIP; INST PANEL | 2 | 2203- | ALL | (B) GRAY | ||
| 011 | I0-72180 516-0 | BOLT; INST PNL | 8 | 2203- | ALL | (A) SCREW M5X16 TAPPING HEXALOBULAR | ||
| 603 | I8-98004 025-0 | CLIP; COVER | 1 | 2203- | ALL | (A) | ||
| 054 | I8-97407 129-4 | POCKET; CENTER CLUSTER | 1 | 2203- | ALL | (A) H=108.4 BLACK | ||
| 724 | I8-98200 042-0 | INSULATOR; INST PANEL | 1 | 2203- | ALL | |||
| 666 | I8-98037 629-0 | INSERT; INST PANEL | 15 | 2203- | ALL | |||
| 178 | I0-91180 106-0 | NUT; INST PANEL | 1 | 2203- | ALL | M6 FLANGE | ||
| 662 | I8-97406 260-1 | COVER; LWR,INST PANEL | 1 | 2203- | ALL | GRAY | ||
| 718 | I8-98176 199-0 | SEAL; COVER | 1 | 2203- | ALL | (B) 5X30 | ||
| 603 | I8-98021 271-0 | CLIP; COVER | 2 | 2203- | ALL | (B) | ||
| 513 | I8-97695 771-A | BRACKET; RELAY | 1 | 2203- | ALL | |||
| 718 | I8-98159 538-0 | SEAL; COVER | 1 | 2203- | ALL | (A) 60X15 | ||
| 689 | I8-98061 778-1 | SEAL; INST | 1 | 2203- | ALL | (B) 18X170 | ||
| 016 | I8-97585 612-2 | BRACKET; INST PNL | 1 | 2203- | ALL | |||
| 004 | I8-97407 898-1 | COVER; INST PNL | 1 | 2203- | ALL | GRAY | ||
| 014 | I0-72180 516-0 | SCREW; INST PNL | 4 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 125 | I8-97408 063-0 | CLIP; INST PANEL | 1 | 2203- | ALL | (A) GRAY | ||
| 704 | I8-97585 616-2 | BRACKET; CENTER POCKET | 2 | 2203- | ALL | (B) | ||
| 014 | I0-72180 516-0 | SCREW; INST PNL | 4 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 718 | I8-98176 199-0 | SEAL; COVER | 1 | 2203- | ALL | (B) 5X30 | ||
| 580 | I8-98091 546-0 | BRACKET; COVER | 1 | 2203- | ALL | |||
| 004 | I8-97407 898-1 | COVER; INST PNL | 1 | 2203- | ALL | GRAY | ||
| 066 | I8-98199 364-1 | REINFORCEMENT; INST PANEL | 1 | 2203- | ALL | |||
| 336 | I8-97418 759-2 | COVER; INST PANEL SIDE | 1 | 2203- | ALL | (B) GRAY | ||
| 069 | I8-98028 562-2 | GRILLE; SIDE,AIR OUTLET | 1 | 2203- | ALL | (B) | ||
| 698 | I8-98089 256-1 | BRACKET; INST BAR SIDE | 1 | 2203- | ALL | |||
| 724 | I8-98200 042-0 | INSULATOR; INST PANEL | 1 | 2203- | ALL | |||
| 603 | I8-98021 271-0 | CLIP; COVER | 2 | 2203- | ALL | (B) | ||
| 626 | I8-94279 804-0 | RETAINER | 2 | 2203- | ALL | OD=15 BLACK | ||
| 696 | I8-98199 366-0 | BRACKET; KNEE | 1 | 2203- | ALL | |||
| 070 | I8-98028 563-2 | GRILLE; CENTER,AIR OUTLET | 1 | 2203- | ALL | |||
| 069 | I8-98028 561-2 | GRILLE; SIDE,AIR OUTLET | 2 | 2203- | ALL | (A) | ||
| 700 | I0-72180 516-0 | BOLT; HOOK | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 696 | I8-98199 366-0 | BRACKET; KNEE | 1 | 2203- | ALL | |||
| 701 | I8-97422 090-A | TRAY; INST | 1 | 2203- | ALL | GRAY | ||
| 698 | I8-98089 257-1 | BRACKET; INST BAR SIDE | 1 | 2203- | ALL | |||
| 662 | I8-97406 260-1 | COVER; LWR,INST PANEL | 1 | 2203- | ALL | GRAY | ||
| 054 | I8-97408 865-4 | POCKET; CENTER CLUSTER | 1 | 2203- | ALL | (C) H=69.8 BLACK | ||
| 699 | I8-97408 927-0 | HOOK; INST PANEL | 1 | 2203- | ALL | GRAY | ||
| 703 | I8-98058 632-0 | SCREW; CENTER POCKET | 4 | 2203- | ALL | T25 L=10 HEXALOBULAR | ||
| 011 | I8-98018 440-0 | BOLT; INST PNL | 4 | 2203- | ALL | (B) M6X25 W/LK&PL WASHER | ||
| 689 | I8-98061 777-0 | SEAL; INST | 1 | 2203- | ALL | (A) 7X31 | ||
| 718 | I8-98200 041-0 | SEAL; COVER | 1 | 2203- | ALL | (D) 4X35 | ||
| 704 | I8-97585 618-2 | BRACKET; CENTER POCKET | 2 | 2203- | ALL | (A) | ||
| 700 | I0-72180 516-0 | BOLT; HOOK | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 580 | I8-98091 546-0 | BRACKET; COVER | 1 | 2203- | ALL | |||
| 336 | I8-97405 259-5 | COVER; INST PANEL SIDE | 1 | 2203- | ALL | (A) GRAY | ||
| 167 | I8-97264 766-0 | BOLT; REINF TO INST | 4 | 2203- | ALL | M8X23 FLANGE | ||
| 066 | I8-98199 364-1 | REINFORCEMENT; INST PANEL | 1 | 2203- | ALL | |||
| 034 | I8-97405 260-1 | LID; OIL TANK | 1 | 2203- | ALL | GRAY | ||
| 705 | I0-72180 520-0 | SCREW; BRACKET CENTER POCKET | 8 | 2203- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 564 | I8-98025 954-1 | COVER; SW | 3 | 2203- | ALL | |||
| 718 | I8-98200 041-0 | SEAL; COVER | 1 | 2203- | ALL | (D) 4X35 | ||
| 513 | I8-97695 771-A | BRACKET; RELAY | 1 | 2203- | ALL | |||
| 125 | I8-97419 968-1 | CLIP; INST PANEL | 2 | 2203- | ALL | (C) GRAY | ||
| 544 | I0-72180 516-0 | SCREW; TRAY | 2 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 569 | I8-97410 276-1 | HOLDER; CARD | 1 | 2203- | ALL | |||
| 721 | I8-98176 240-0 | FINISHER; BRKT,KNEE | 1 | 2203- | ALL | L=75 | ||
| 341 | I8-97423 658-0 | LID; FUSE BOX | 1 | 2203- | ALL | GRAY | ||
| 705 | I0-72180 520-0 | SCREW; BRACKET CENTER POCKET | 8 | 2203- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 070 | I8-98028 563-2 | GRILLE; CENTER,AIR OUTLET | 1 | 2203- | ALL | |||
| 054 | I8-97408 864-4 | POCKET; CENTER CLUSTER | 1 | 2203- | ALL | (B) H=58.4 BLACK | ||
| 721 | I8-98176 240-0 | FINISHER; BRKT,KNEE | 1 | 2203- | ALL | L=75 | ||
| 702 | I0-91180 106-0 | NUT; TRAY | 2 | 2203- | ALL | M6 FLANGE | ||
| 603 | I8-98021 271-0 | CLIP; COVER | 3 | 2203- | ALL | (B) | ||
| 001 | I8-97405 253-A | PANEL; INST | 1 | 2203- | ALL | GRAY | ||
| 010 | I8-97419 684-A | PANEL ASM; GARNISH | 1 | 2203- | ALL | GRAY | ||
| 069 | I8-98028 562-2 | GRILLE; SIDE,AIR OUTLET | 1 | 2203- | ALL | (B) |
