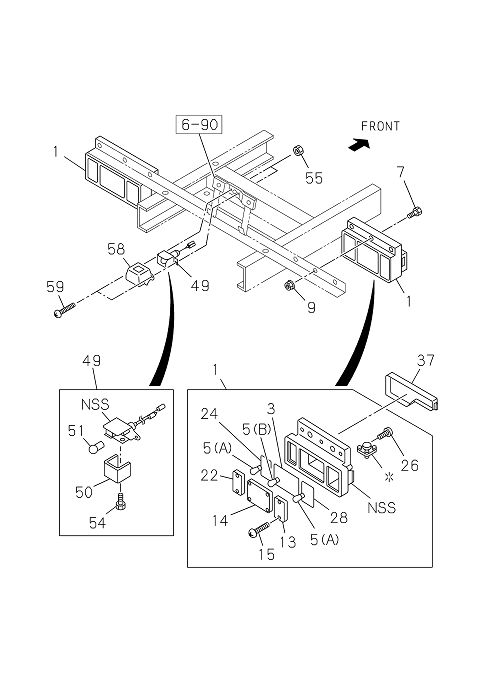

8-03 | LAMP; REAR AND REAR SIDE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 013 | I8-94174 639-A | LENS; TURN SIGNAL | 1 | 2203- | ALL | |||
| 024 | I8-94257 506-0 | GASKET; BACK,LAMP | 1 | 2203- | ALL | |||
| 007 | I8-94402 623-0 | SCREW; RR COMB LAMP | 4 | 2203- | ALL | M6X20 | ||
| 028 | I8-94257 507-0 | GASKET; TURN,LAMP | 1 | 2203- | ALL | |||
| 028 | I8-94257 507-0 | GASKET; TURN,LAMP | 1 | 2203- | ALL | |||
| 051 | I1-82194 037-0 | BULB; LICENSE PLATE LAMP | 1 | 2203- | ALL | 24V 10W | ||
| 026 | I9-07076 414-0 | SCREW; BACK HORN | 1 | 2203- | ALL | M4X14 TAPPING | ||
| 001 | I8-94178 623-A | LAMP ASM; RR COMB | 1 | 2203- | ALL | |||
| 054 | I8-94419 312-0 | SCREW; LICENSE PLATE LAMP | 1 | 2203- | ALL | M4X8 | ||
| 003 | I8-94257 505-0 | GASKET; RR COMB LAMP | 1 | 2203- | ALL | |||
| 026 | I9-07076 414-0 | SCREW; BACK HORN | 1 | 2203- | ALL | M4X14 TAPPING | ||
| 026 | I0-71240 412-0 | SCREW; BACK HORN | 1 | 2203- | ALL | M4X12 TAPPING | ||
| 058 | I7-41411 211-A | COVER; LICENSE PLATE LAMP | 1 | 2203- | ALL | |||
| 001 | I6-94178 621-0 | LAMP ASM; RR COMB | 1 | 2203- | ALL | (IADG) | ||
| 013 | I8-94174 638-A | LENS; TURN SIGNAL | 1 | 2203- | ALL | |||
| 001 | I6-94178 621-0 | LAMP ASM; RR COMB | 1 | 2203- | ALL | (IADG) | ||
| 049 | I7-41410 212-A | LAMP; LICENSE PLATE | 1 | 2203- | ALL | 24V 10W | ||
| 050 | I8-97497 708-0 | LENS; LICENSE PLATE LAMP | 1 | 2203- | ALL | |||
| 049 | I7-41410 212-A | LAMP; LICENSE PLATE | 1 | 2203- | ALL | 24V 10W | ||
| 055 | I8-94153 039-0 | NUT; LICENSE PLATE LAMP | 2 | 2203- | ALL | M5 FLANGE | ||
| 024 | I8-94257 506-0 | GASKET; BACK,LAMP | 1 | 2203- | ALL | |||
| 005 | I1-82194 109-0 | BULB; RR COMB LAMP | 1 | 2203- | ALL | (B) 24V 21/5W | ||
| 022 | I8-94257 512-A | LENS; BACKUP,RR COMB LAMP | 1 | 2203- | ALL | CLEAR | ||
| 054 | I8-94419 312-0 | SCREW; LICENSE PLATE LAMP | 1 | 2203- | ALL | M4X8 | ||
| 005 | I1-82194 108-0 | BULB; RR COMB LAMP | 2 | 2203- | ALL | (A) 24V 21W | ||
| 015 | I0-71190 420-0 | SCREW; RR COMB LAMP | 8 | 2203- | ALL | M4X20 TAPPING STAINLESS | ||
| 005 | I1-82194 109-0 | BULB; RR COMB LAMP | 1 | 2203- | ALL | (B) 24V 21/5W | ||
| 001 | I8-94178 623-A | LAMP ASM; RR COMB | 1 | 2203- | ALL | |||
| 014 | I8-94178 625-A | LENS; TAIL & STOP,RR COMB LAMP | 1 | 2203- | ALL | |||
| 009 | I8-98049 362-0 | NUT; LAMP,RR COMB | 4 | 2203- | ALL | M6 FLANGE | ||
| 058 | I7-41411 211-A | COVER; LICENSE PLATE LAMP | 1 | 2203- | ALL | |||
| 037 | I8-97520 137-A | COVER; RR COMB LAMP | 1 | 2203- | ALL | |||
| 055 | I8-94153 039-0 | NUT; LICENSE PLATE LAMP | 2 | 2203- | ALL | M5 FLANGE | ||
| 005 | I1-82194 108-0 | BULB; RR COMB LAMP | 2 | 2203- | ALL | (A) 24V 21W | ||
| 014 | I8-94178 625-A | LENS; TAIL & STOP,RR COMB LAMP | 1 | 2203- | ALL | |||
| 014 | I8-94178 624-A | LENS; TAIL & STOP,RR COMB LAMP | 1 | 2203- | ALL | |||
| 001 | I6-94178 623-0 | LAMP ASM; RR COMB | 1 | 2203- | ALL | (IADG) | ||
| 007 | I8-94402 623-0 | SCREW; RR COMB LAMP | 4 | 2203- | ALL | M6X20 | ||
| 015 | I0-71190 420-0 | SCREW; RR COMB LAMP | 8 | 2203- | ALL | M4X20 TAPPING STAINLESS | ||
| 037 | I8-97520 137-A | COVER; RR COMB LAMP | 1 | 2203- | ALL | |||
| 013 | I8-94174 638-A | LENS; TURN SIGNAL | 1 | 2203- | ALL | |||
| 014 | I8-94178 624-A | LENS; TAIL & STOP,RR COMB LAMP | 1 | 2203- | ALL | |||
| 001 | I8-94178 621-A | LAMP ASM; RR COMB | 1 | 2203- | ALL | |||
| 022 | I8-94257 512-A | LENS; BACKUP,RR COMB LAMP | 1 | 2203- | ALL | CLEAR | ||
| 003 | I8-94257 505-0 | GASKET; RR COMB LAMP | 1 | 2203- | ALL | |||
| 026 | I0-71240 412-0 | SCREW; BACK HORN | 1 | 2203- | ALL | M4X12 TAPPING | ||
| 051 | I1-82194 037-0 | BULB; LICENSE PLATE LAMP | 1 | 2203- | ALL | 24V 10W | ||
| 037 | I8-97520 138-A | COVER; RR COMB LAMP | 1 | 2203- | ALL | |||
| 009 | I8-98049 362-0 | NUT; LAMP,RR COMB | 4 | 2203- | ALL | M6 FLANGE | ||
| 001 | I8-94178 621-A | LAMP ASM; RR COMB | 1 | 2203- | ALL | |||
| 001 | I6-94178 623-0 | LAMP ASM; RR COMB | 1 | 2203- | ALL | (IADG) | ||
| 050 | I8-97497 708-0 | LENS; LICENSE PLATE LAMP | 1 | 2203- | ALL | |||
| 059 | I9-93490 520-0 | SCREW; TAP,LICENSE LAMP BODY | 2 | 2203- | ALL | M5X20 | ||
| 037 | I8-97520 138-A | COVER; RR COMB LAMP | 1 | 2203- | ALL | |||
| 013 | I8-94174 639-A | LENS; TURN SIGNAL | 1 | 2203- | ALL | |||
| 059 | I9-93490 520-0 | SCREW; TAP,LICENSE LAMP BODY | 2 | 2203- | ALL | M5X20 |
