8-10 | WIRING HARNESS AND FUSE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

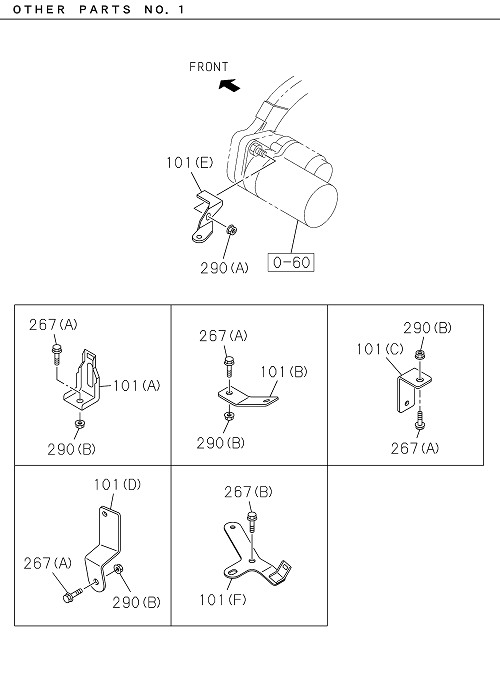

| 101 | I8-97665 087-0 | BRACKET; HARNESS CONNECTOR | 1 | 2203- | NLR85 | (F) | ||
| 691 | I8-97948 238-0 | HARNESS; IDLE CONT | 1 | 2203- | ALL | |||
| 668 | I8-97362 859-0 | BRACKET; HARNESS | 2 | 2203- | ALL | (C) | ||
| 534 | I8-97365 449-0 | BOLT | 3 | 2203- | NMR81 | M10X55 FLANGE | ||

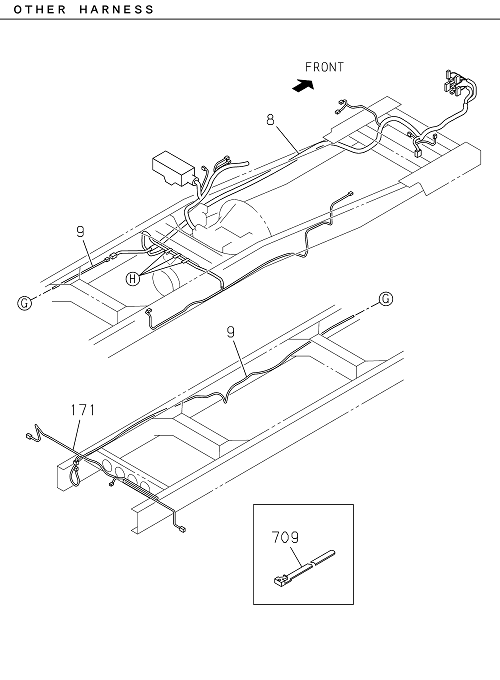

| 009 | I7-42060 229-A | HARNESS; FRAME,RR | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 008 | I7-42060 218-A | HARNESS; FRAME,FRT, EXT | 1 | 2311- | NLR85 | NLR85-TL | ||
| 174 | I8-97183 643-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 30A PINK | ||
| 028 | I0-72180 516-0 | SCREW; FUSE BOX | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 004 | I7-55184 585-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | ALL | |||

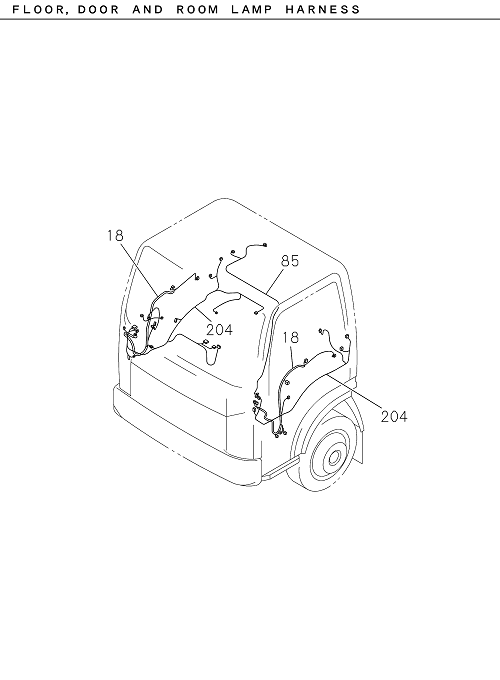

| 085 | I8-97695 489-A | HARNESS; ROOM LAMP | 1 | 2203- | ALL | |||
| 009 | I7-42060 239-A | HARNESS; FRAME,RR | 1 | 2203- | NLR85 | NLR85-TL; NLR85-BL | ||
| 453 | I8-94482 169-0 | PROTECTOR; HARNESS | 1 | 2203- | ALL | (B) | ||
| 036 | I7-55184 586-0 | BOX; RELAY | 1 | 2203- | ALL | |||
| 668 | I8-98061 780-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 094 | I8-94422 639-A | DIODE; FRAME HARNESS | AR | 2203- | ALL | BLACK 2P-1.5A | ||
| 009 | I7-42060 239-A | HARNESS; FRAME,RR | 1 | 2203- | NMR81 | |||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | AR | 2203- | ALL | (B) BLACK 3P-1.5A | ||

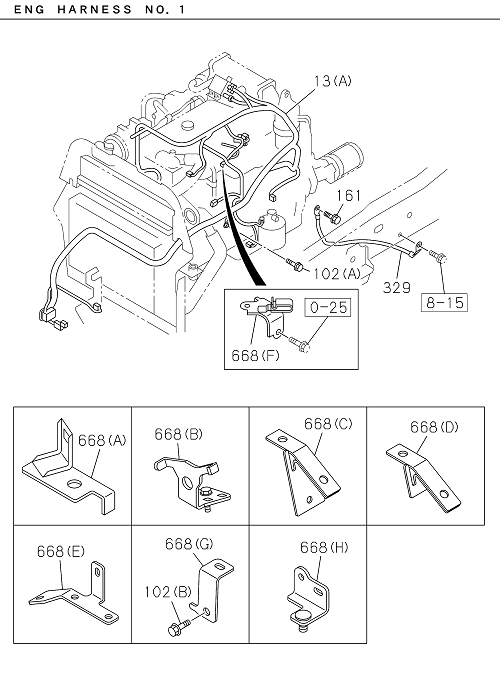

| 013 | I8-97828 407-1 | HARNESS; ENG | 1 | 2203- | NMR81 | (A) EXC. INTAKE SHUTTER | ||
| 174 | I8-97183 645-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 50A RED | ||
| 101 | I8-98345 997-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | ALL | (C) | ||
| 018 | I8-97695 491-A | HARNESS; DOOR | 1 | 2203- | ALL | |||
| 453 | I8-98034 039-1 | PROTECTOR; HARNESS | 1 | 2203- | ALL | (C) | ||
| 668 | I8-98061 780-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (F) | ||
| 639 | I0-28650 625-0 | BOLT; CLIP | 2 | 2203- | ALL | M6X25 FLANGE | ||
| 029 | I8-97547 346-0 | COVER; FUSE BOX | 1 | 2203- | ALL | |||
| 184 | I8-98179 321-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | ALL | |||
| 668 | I8-98061 780-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (F) | ||
| 009 | I7-42060 245-A | HARNESS; FRAME,RR | 1 | 2311- | NMR81 | NMR81-TSDL; OAL=5700MM | ||
| 293 | I8-94424 179-0 | NUT | 1 | 2203- | NMR81 | M6 W/LK WASHER | ||

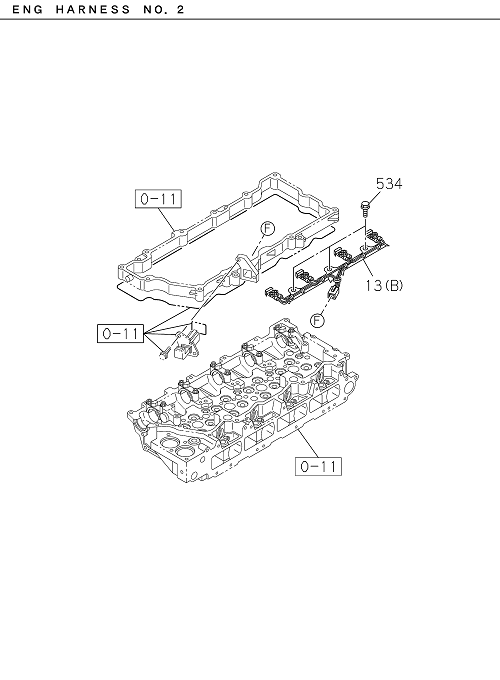

| 013 | I8-98171 638-0 | HARNESS; ENG | 1 | 2203- | NMR81 | (B) | ||
| 101 | I8-98345 996-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | ALL | (B) | ||

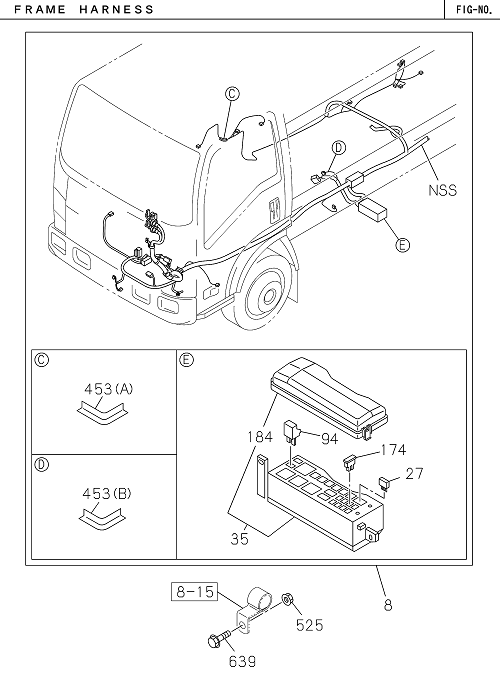

| 008 | I7-42060 237-A | HARNESS; FRAME,FRT | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 002 | I8-94422 639-A | DIODE; CABLE HARNESS | AR | 2203- | ALL | (A) BLACK 2P-1.5A | ||
| 184 | I8-98179 321-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | ALL | |||
| 668 | I8-98019 633-0 | BRACKET; HARNESS | 1 | 2203- | ALL | (D) | ||
| 101 | I8-98345 997-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | ALL | (C) | ||
| 668 | I8-98248 114-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 102 | I0-28050 812-A | BOLT; BRKT,HARNESS CONNECTOR | 3 | 2203- | ALL | (A) M8X12 FLANGE | ||
| 009 | I7-42060 245-A | HARNESS; FRAME,RR | 1 | 2311- | NMR81 | NMR81-TSD; OAL=4600MM | ||
| 668 | I8-98271 417-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (H) | ||
| 668 | I8-98061 780-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 174 | I8-97183 645-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 50A RED | ||
| 008 | I7-42060 217-A | HARNESS; FRAME,FRT | 1 | 2203- | NMR81 | NMR81-TSDL | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 2203- | ALL | |||
| 267 | I0-28650 825-0 | BOLT; BRKT | 3 | 2203- | ALL | (A) M8X25 FLANGE | ||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | AR | 2203- | ALL | (B) BLACK 3P-1.5A | ||
| 329 | I8-98339 528-A | CABLE; ENG TO FRAME | 1 | 2203- | NLR85 | |||
| 525 | I0-91180 106-0 | NUT; CLIP | 4 | 2203- | ALL | M6 FLANGE | ||
| 290 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | ALL | (B) M8 FLANGE | ||
| 267 | I7-04508 025-A | BOLT; BRKT | 2 | 2203- | ALL | (B) M8X20 FLANGE | ||
| 008 | I7-42060 217-A | HARNESS; FRAME,FRT | 1 | 2203- | NMR81 | NMR81-TSDL | ||

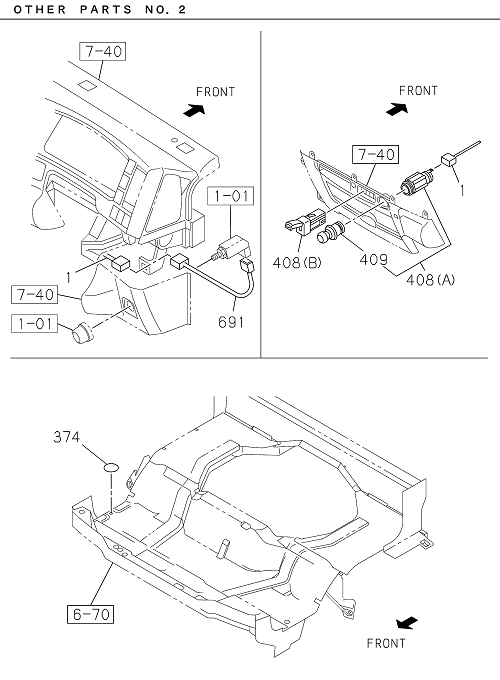

| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | ALL | (A) | ||
| 009 | I7-42060 245-A | HARNESS; FRAME,RR | 1 | 2311- | NMR81 | NMR81-TSD; OAL=4600MM | ||
| 102 | I0-28050 616-0 | BOLT; BRKT,HARNESS CONNECTOR | 1 | 2203- | ALL | (B) M6X16 FLANGE | ||
| 374 | I8-98031 126-0 | PLUG; HARNESS CONNECTOR | 1 | 2203- | ALL | OD=32 BLACK | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | ALL | (A) | ||
| 453 | I8-94482 169-0 | PROTECTOR; HARNESS | 1 | 2203- | ALL | (B) | ||
| 668 | I8-98248 114-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 204 | I8-97695 488-A | HARNESS; CABLE,FLOOR | 1 | 2203- | ALL | |||
| 293 | I0-91180 106-0 | NUT | 4 | 2203- | ALL | M6 FLANGE | ||
| 009 | I7-42060 239-A | HARNESS; FRAME,RR | 1 | 2203- | NMR81 | |||
| 013 | I8-97665 994-1 | HARNESS; ENG | 1 | 2203- | NLR85 | (A) | ||
| 035 | I8-98173 937-0 | BOX; RELAY & FUSE | 1 | 2203- | ALL | |||
| 668 | I8-98260 311-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (B) | ||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 60A YELLOW | ||
| 009 | I7-42060 245-A | HARNESS; FRAME,RR | 1 | 2311- | NLR85 | NLR85-TL; OAL=4700MM | ||
| 094 | I8-94422 639-A | DIODE; FRAME HARNESS | AR | 2203- | ALL | BLACK 2P-1.5A | ||
| 102 | I0-28050 812-A | BOLT; BRKT,HARNESS CONNECTOR | 3 | 2203- | ALL | (A) M8X12 FLANGE | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 2203- | ALL | |||
| 101 | I8-97665 087-0 | BRACKET; HARNESS CONNECTOR | 1 | 2203- | NLR85 | (F) | ||
| 018 | I8-97695 490-A | HARNESS; DOOR | 1 | 2203- | ALL | |||
| 101 | I8-98030 725-1 | BRACKET; HARNESS CONNECTOR | 1 | 2203- | NLR85 | (E) | ||
| 453 | I8-98034 039-1 | PROTECTOR; HARNESS | 1 | 2203- | ALL | (C) | ||
| 018 | I8-97695 490-A | HARNESS; DOOR | 1 | 2203- | ALL | |||
| 668 | I8-98270 503-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 293 | I0-91180 106-0 | NUT | 4 | 2203- | ALL | M6 FLANGE | ||
| 005 | I8-97062 023-A | FUSE; FACIA HARNESS | AR | 2203- | ALL | 15A MINI BLUE | ||
| 161 | I0-28051 016-0 | BOLT; GROUND,HARNESS | 1 | 2203- | NLR85 | M10X16 FLANGE | ||
| 013 | I8-97648 416-2 | HARNESS; ENG | 1 | 2203- | NMR81 | (A) INTAKE SHUTTER | ||
| 008 | I7-42060 218-A | HARNESS; FRAME,FRT, EXT | 1 | 2311- | NMR81 | NMR81-TSD; TSDL | ||
| 008 | I7-42060 236-A | HARNESS; FRAME,FRT | 1 | 2203- | NLR85 | NLR85-TL; NLR85-BL | ||
| 408 | I8-97544 566-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | ALL | (B) USB CHARGER | ||
| 101 | I8-98345 996-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | ALL | (B) | ||
| 329 | I8-98380 061-A | CABLE; ENG TO FRAME | 1 | 2203- | NMR81 | |||
| 374 | I8-98031 126-0 | PLUG; HARNESS CONNECTOR | 1 | 2203- | ALL | OD=32 BLACK | ||
| 009 | I7-42060 245-A | HARNESS; FRAME,RR | 1 | 2311- | NMR81 | NMR81-TSDL; OAL=5700MM | ||
| 009 | I7-42060 239-A | HARNESS; FRAME,RR | 1 | 2203- | NLR85 | NLR85-TL; NLR85-BL | ||
| 293 | I8-94424 179-0 | NUT | 1 | 2203- | NMR81 | M6 W/LK WASHER | ||
| 028 | I0-72180 516-0 | SCREW; FUSE BOX | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 329 | I8-98339 528-A | CABLE; ENG TO FRAME | 1 | 2203- | NLR85 | |||
| 029 | I8-97547 346-0 | COVER; FUSE BOX | 1 | 2203- | ALL | |||
| 668 | I8-98270 503-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (E) | ||
| 101 | I8-98030 725-1 | BRACKET; HARNESS CONNECTOR | 1 | 2203- | NLR85 | (E) | ||
| 329 | I8-98380 061-A | CABLE; ENG TO FRAME | 1 | 2203- | NMR81 | |||
| 005 | I8-97062 022-A | FUSE; FACIA HARNESS | AR | 2203- | ALL | 10A MINI RED | ||
| 005 | I8-97062 023-A | FUSE; FACIA HARNESS | AR | 2203- | ALL | 15A MINI BLUE | ||
| 709 | I5-09707 030-1 | STRAP; HARNESS | 1 | 2203- | ALL | L=250 | ||

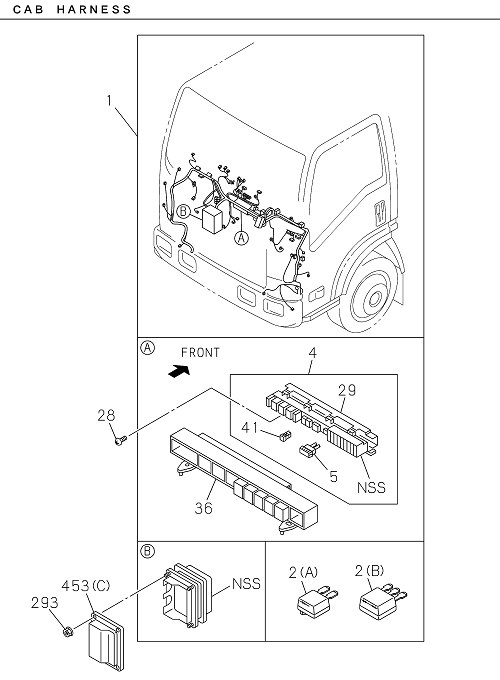

| 001 | I7-42040 229-A | HARNESS; CAB | 1 | 2203- | NMR81 | |||
| 101 | I8-97488 252-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | NMR81 | (A) | ||
| 161 | I8-98141 256-1 | BOLT; GROUND,HARNESS | 1 | 2203- | NLR85 | M8X24 W/PL WASHER | ||
| 035 | I8-98173 937-0 | BOX; RELAY & FUSE | 1 | 2203- | ALL | |||
| 018 | I8-97695 491-A | HARNESS; DOOR | 1 | 2203- | ALL | |||
| 008 | I7-42060 216-A | HARNESS; FRAME,FRT | 1 | 2203- | NMR81 | NMR81-TSD; THD; TSHD | ||
| 027 | I8-97062 022-A | FUSE UNIT | AR | 2203- | ALL | 10A MINI RED | ||
| 408 | I8-97544 566-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | ALL | (B) USB CHARGER | ||
| 101 | I8-98345 998-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | ALL | (D) | ||
| 174 | I8-97183 643-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 30A PINK | ||
| 668 | I8-98271 417-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 013 | I8-97665 994-1 | HARNESS; ENG | 1 | 2203- | NLR85 | (A) | ||
| 204 | I8-97559 668-A | HARNESS; CABLE,FLOOR | 1 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 174 | I8-97183 644-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 40A GREEN | ||
| 668 | I8-98248 114-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (G) | ||
| 009 | I7-42060 245-A | HARNESS; FRAME,RR | 1 | 2311- | NLR85 | NLR85-TL; OAL=4700MM | ||
| 453 | I8-94417 716-0 | PROTECTOR; HARNESS | 1 | 2203- | ALL | (A) | ||
| 204 | I8-97559 668-A | HARNESS; CABLE,FLOOR | 1 | 2203- | NMR81 | |||
| 013 | I8-98171 638-0 | HARNESS; ENG | 1 | 2203- | NMR81 | (B) | ||
| 013 | I8-97648 416-2 | HARNESS; ENG | 1 | 2203- | NMR81 | (A) INTAKE SHUTTER | ||
| 002 | I8-94422 639-A | DIODE; CABLE HARNESS | AR | 2203- | ALL | (A) BLACK 2P-1.5A | ||
| 085 | I8-97695 489-A | HARNESS; ROOM LAMP | 1 | 2203- | ALL | |||
| 668 | I8-98271 417-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 008 | I7-42060 237-A | HARNESS; FRAME,FRT | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 174 | I8-97183 644-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 40A GREEN | ||
| 453 | I8-94417 716-0 | PROTECTOR; HARNESS | 1 | 2203- | ALL | (A) | ||
| 668 | I8-98270 503-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (E) | ||
| 101 | I8-98345 998-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | ALL | (D) | ||
| 267 | I7-04508 025-A | BOLT; BRKT | 2 | 2203- | ALL | (B) M8X20 FLANGE | ||
| 001 | I7-42040 228-A | HARNESS; CAB | 1 | 2203- | NLR85 | |||
| 668 | I8-98271 417-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (H) | ||
| 668 | I8-98019 633-0 | BRACKET; HARNESS | 1 | 2203- | ALL | (D) | ||
| 001 | I7-42040 229-A | HARNESS; CAB | 1 | 2203- | NMR81 | |||
| 005 | I8-97062 024-A | FUSE; FACIA HARNESS | AR | 2203- | ALL | 20A MINI YELLOW | ||
| 161 | I8-98141 256-1 | BOLT; GROUND,HARNESS | 1 | 2203- | NLR85 | M8X24 W/PL WASHER | ||
| 668 | I8-98270 503-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | |||
| 101 | I8-97488 252-A | BRACKET; HARNESS CONNECTOR | 1 | 2203- | NMR81 | (A) | ||
| 668 | I8-98260 311-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (B) | ||
| 171 | I8-97824 309-0 | HARNESS; CABLE,TAIL LAMP | 1 | 2203- | ALL | |||
| 204 | I8-97559 668-A | HARNESS; CABLE,FLOOR | 1 | 2203- | NLR85 | NLR85-T; NLR85-TL | ||
| 691 | I8-97948 238-0 | HARNESS; IDLE CONT | 1 | 2203- | ALL | |||
| 013 | I8-97828 407-1 | HARNESS; ENG | 1 | 2203- | NMR81 | (A) EXC. INTAKE SHUTTER | ||
| 008 | I7-42060 218-A | HARNESS; FRAME,FRT, EXT | 1 | 2311- | NMR81 | NMR81-TSD; TSDL | ||
| 668 | I8-98249 540-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (A) | ||
| 290 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | ALL | (B) M8 FLANGE | ||
| 001 | I7-42040 228-A | HARNESS; CAB | 1 | 2203- | NLR85 | |||
| 668 | I8-98249 540-0 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (A) | ||
| 041 | I8-97103 388-A | PULLER; FUSE | 1 | 2203- | ALL | |||
| 102 | I0-28050 616-0 | BOLT; BRKT,HARNESS CONNECTOR | 1 | 2203- | ALL | (B) M6X16 FLANGE | ||
| 041 | I8-97103 388-A | PULLER; FUSE | 1 | 2203- | ALL | |||
| 668 | I8-97362 859-0 | BRACKET; HARNESS | 2 | 2203- | ALL | (C) | ||
| 204 | I8-97559 668-A | HARNESS; CABLE,FLOOR | 1 | 2203- | NMR81 | |||
| 008 | I7-42060 236-A | HARNESS; FRAME,FRT | 1 | 2203- | NLR85 | NLR85-TL; NLR85-BL | ||
| 534 | I8-97365 449-0 | BOLT | 3 | 2203- | NMR81 | M10X55 FLANGE | ||
| 009 | I7-42060 229-A | HARNESS; FRAME,RR | 1 | 2203- | NLR85 | NLR85-T; NLR85-B | ||
| 639 | I0-28650 625-0 | BOLT; CLIP | 2 | 2203- | ALL | M6X25 FLANGE | ||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | AR | 2203- | ALL | 60A YELLOW | ||
| 290 | I0-91180 110-0 | NUT; BRKT | 1 | 2203- | ALL | (A) M10 FLANGE | ||
| 161 | I0-28051 016-0 | BOLT; GROUND,HARNESS | 1 | 2203- | NLR85 | M10X16 FLANGE | ||
| 668 | I8-98248 114-1 | BRACKET; HARNESS | 1 | 2203- | NMR81 | (G) | ||
| 036 | I7-55184 586-0 | BOX; RELAY | 1 | 2203- | ALL | |||
| 267 | I0-28650 825-0 | BOLT; BRKT | 3 | 2203- | ALL | (A) M8X25 FLANGE | ||
| 005 | I8-97062 022-A | FUSE; FACIA HARNESS | AR | 2203- | ALL | 10A MINI RED | ||
| 004 | I7-55184 585-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | ALL | |||
| 290 | I0-91180 110-0 | NUT; BRKT | 1 | 2203- | ALL | (A) M10 FLANGE | ||
| 005 | I8-97062 024-A | FUSE; FACIA HARNESS | AR | 2203- | ALL | 20A MINI YELLOW | ||
| 709 | I5-09707 030-1 | STRAP; HARNESS | 1 | 2203- | ALL | L=250 | ||
| 525 | I0-91180 106-0 | NUT; CLIP | 4 | 2203- | ALL | M6 FLANGE | ||
| 008 | I7-42060 218-A | HARNESS; FRAME,FRT, EXT | 1 | 2311- | NLR85 | NLR85-TL | ||
| 008 | I7-42060 216-A | HARNESS; FRAME,FRT | 1 | 2203- | NMR81 | NMR81-TSD; THD; TSHD | ||
| 027 | I8-97062 022-A | FUSE UNIT | AR | 2203- | ALL | 10A MINI RED | ||
| 204 | I8-97695 488-A | HARNESS; CABLE,FLOOR | 1 | 2203- | ALL | |||
| 171 | I8-97824 309-0 | HARNESS; CABLE,TAIL LAMP | 1 | 2203- | ALL |
