8-15 | FIXING PARTS; WIRING HARNESS
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

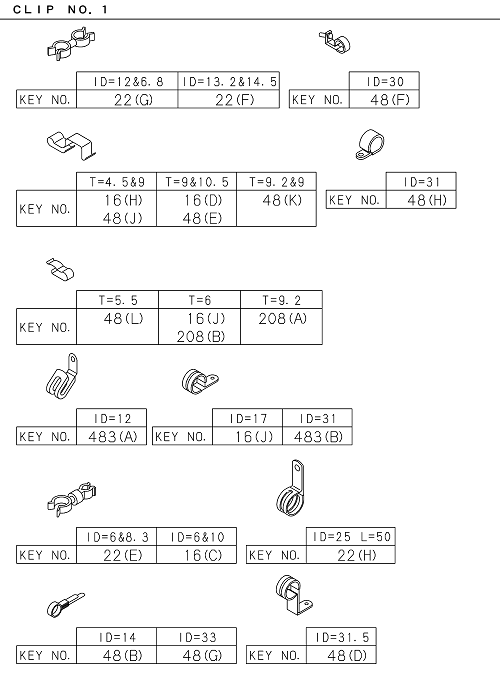

| 016 | I8-97069 515-0 | CLIP; HARNESS | 2 | 2203- | ALL | (A) ID=6 & 10-13 | ||
| 038 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 1 | 2203- | NLR85 | (C) M8X25 FLANGE | ||
| 022 | I1-09701 019-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (H) ID=25 L=50 | ||
| 208 | I5-09709 013-0 | CLIP; HARNESS,MAG VLV | 2 | 2203- | NMR81 | (A) T=9.2; EXC. NMR81-TSD | ||
| 483 | I8-97367 984-1 | CLIP; ENG HARNESS | 2 | 2203- | NMR81 | (A) ID=12 VINYL CHLORIDE | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 2203- | ALL | (F) | ||
| 242 | I0-28651 030-0 | BOLT; BRKT,HARNESS | 1 | 2203- | ALL | (B) M10X30 FLANGE | ||
| 048 | I8-97371 947-0 | CLIP; FRAME HARNESS | 1 | 2203- | NLR85 | (J) T=4.5 & 9 | ||
| 048 | I8-97078 642-2 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (F) ID=30 W/STUD | ||
| 048 | I8-97920 656-0 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (I) L=140 | ||
| 386 | I8-98141 256-1 | BOLT; GRAND HARNESS | 2 | 2203- | ALL | (B) M8X24 W/PL WASHER | ||
| 048 | I1-09701 017-0 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (D) ID=31.5 H=23 L=25 | ||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 1 | 2203- | NLR85 | (A) M8X18.5 W/PL WASHER | ||

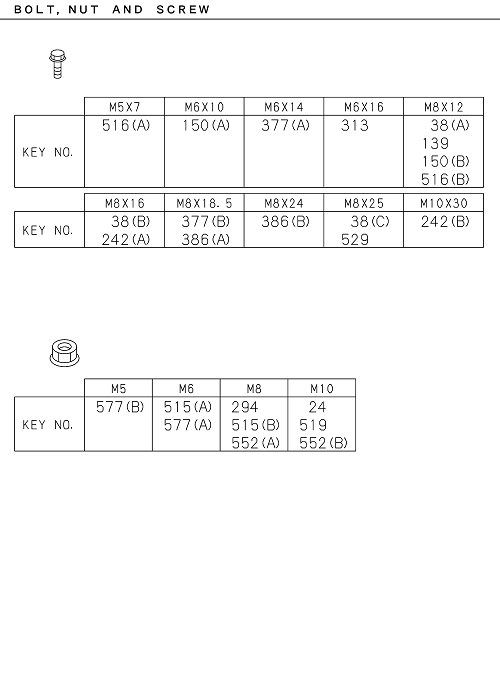

| 516 | I8-98063 767-0 | BOLT; HARNESS | 1 | 2203- | ALL | (A) M5X7 HEXALOBULAR SOCKET | ||
| 038 | I0-28050 812-A | BOLT; CLIP,HARNESS | 1 | 2203- | NLR85 | (A) M8X12 FLANGE | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 1 | 2203- | NMR81 | L=150 | ||
| 022 | I8-98069 482-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (C) ID=34 | ||
| 515 | I8-98040 024-0 | NUT; BRKT | 1 | 2203- | ALL | (B) M8 FLANGE | ||
| 529 | I0-28650 825-0 | BOLT; RELAY BOX | 3 | 2203- | ALL | M8X25 FLANGE | ||
| 048 | I1-09700 807-0 | CLIP; FRAME HARNESS | 5 | 2203- | ALL | (G) ID=33 L=63 | ||
| 022 | I8-97125 842-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (G) ID=12 & 6.8 | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 4 | 2203- | ALL | (E) L=155 | ||

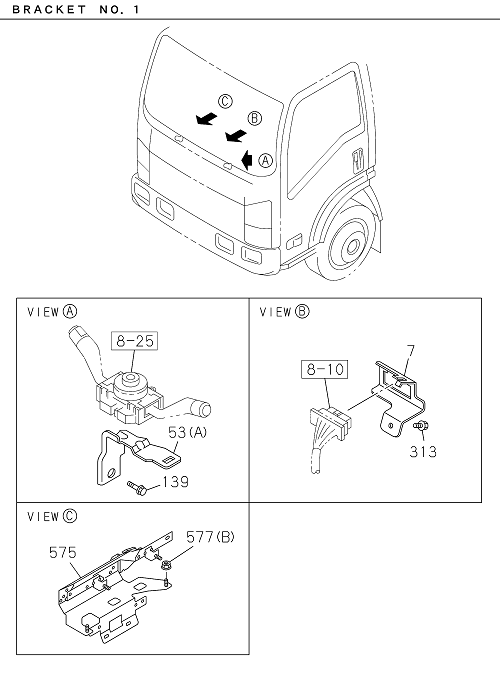

| 053 | I8-98039 984-2 | BRACKET; HARNESS | 1 | 2203- | ALL | (B) | ||
| 038 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 1 | 2203- | NLR85 | (C) M8X25 FLANGE | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 7 | 2203- | ALL | (B) ID=14 L=47 | ||

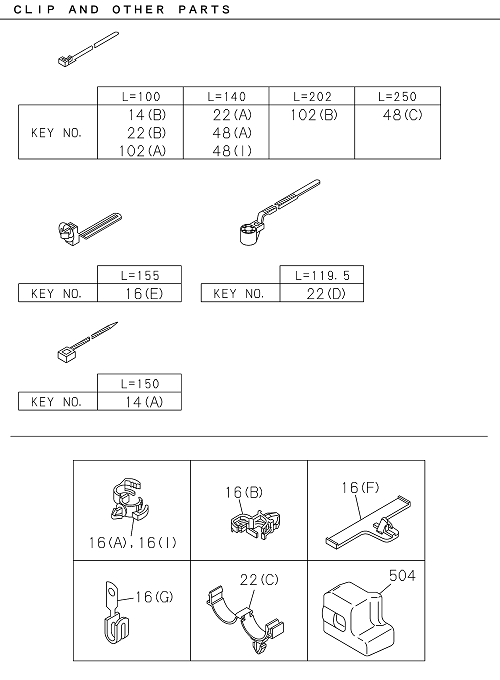

| 102 | I5-09707 031-1 | CLIP; BAND | 2 | 2203- | ALL | L=140 | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | ALL | (B) L=140 | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 1 | 2203- | NMR81 | L=150 | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (B) L=100 | ||
| 515 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | ALL | (A) M6 FLANGE | ||
| 519 | I0-91111 510-0 | NUT; EARTH CABLE | 1 | 2203- | NMR81 | M10 | ||
| 016 | I8-97041 091-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (D) T=9 & 10.5 | ||
| 022 | I8-94167 742-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (E) ID=6 & 8.3 | ||
| 016 | I8-97041 091-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (D) T=9 & 10.5 | ||
| 048 | I8-97371 951-0 | CLIP; FRAME HARNESS | 1 | 2203- | NLR85 | (L) T=5.5; NLR85-TL; NLR85-BL | ||
| 016 | I5-09709 024-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (J) T=6.0; NMR81-TSD | ||
| 016 | I8-97101 436-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (G) ID=16 L=60 | ||
| 048 | I8-97078 642-2 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (F) ID=30 W/STUD | ||

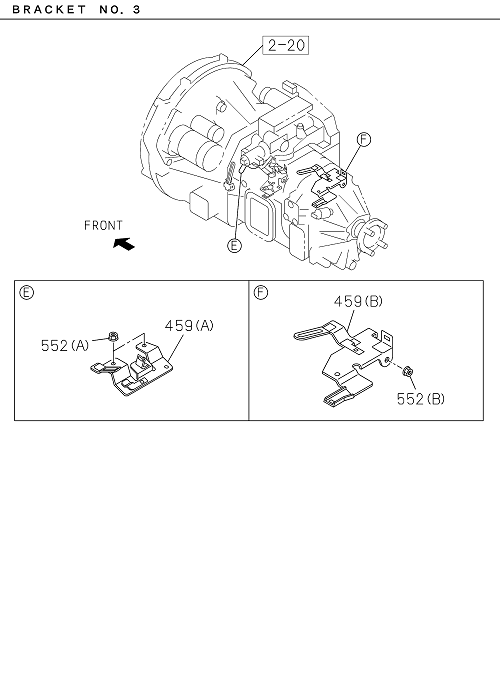

| 459 | I8-98196 974-0 | BRACKET; SUPPORT,HARNESS | 1 | 2203- | ALL | (B) | ||
| 552 | I0-91180 110-0 | NUT; BRKT,HARNESS | 1 | 2203- | ALL | (B) M10 FLANGE | ||
| 016 | I8-97619 251-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | ID=17 L=20 | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 8 | 2203- | ALL | (B) ID=14 L=47 | ||
| 504 | I8-98208 886-0 | PROTECTOR; HARNESS | 1 | 2203- | NLR85 | |||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | ALL | (A) L=140 | ||

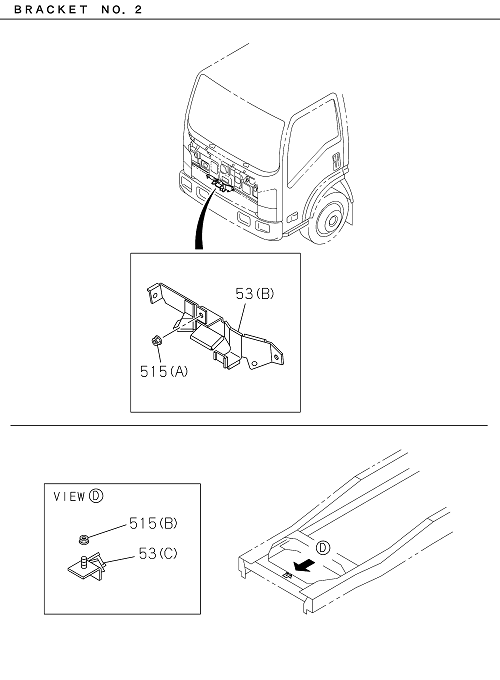

| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 2203- | ALL | (A) | ||
| 048 | I8-97920 656-0 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (I) L=140 | ||
| 048 | I1-09700 969-0 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (H) ID=31 L=30 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | NLR85 | (I) ID=7-10; NLR85-T; NLR85-TL | ||
| 516 | I0-28050 812-A | BOLT; HARNESS | 1 | 2203- | NLR85 | (B) M8X12 FLANGE | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 2 | 2203- | NLR85 | (B) M8X16 FLANGE | ||
| 016 | I8-97101 436-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (G) ID=16 L=60 | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 3 | 2203- | ALL | (B) ID=14 L=47 | ||
| 242 | I0-28050 816-0 | BOLT; BRKT,HARNESS | 3 | 2203- | ALL | (A) M8X16 FLANGE | ||
| 386 | I8-98141 256-1 | BOLT; GRAND HARNESS | 2 | 2203- | ALL | (B) M8X24 W/PL WASHER | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 2203- | ALL | (A) | ||
| 150 | I0-28050 610-0 | BOLT; CLIP | 2 | 2203- | ALL | (A) M6X10 FLANGE | ||
| 575 | I8-98173 144-2 | BRACKET; FUSE BOX | 1 | 2203- | ALL | |||
| 294 | I7-05108 010-A | NUT | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 313 | I0-28450 616-0 | BOLT; BRKT | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 4 | 2203- | ALL | (E) L=155 | ||
| 022 | I8-94475 649-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (F) ID=13.2 & 14.5 | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 2 | 2203- | NLR85 | (B) M8X16 FLANGE | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 2 | 2203- | ALL | (A) L=140 | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 8 | 2203- | ALL | (B) ID=14 L=47 | ||
| 048 | I8-97371 951-0 | CLIP; FRAME HARNESS | 1 | 2203- | NLR85 | (L) T=5.5; NLR85-TL; NLR85-BL | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 1 | 2203- | NMR81 | (A) L=150 | ||
| 048 | I1-09700 969-0 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (H) ID=31 L=30 | ||
| 483 | I8-97367 984-1 | CLIP; ENG HARNESS | 2 | 2203- | NMR81 | (A) ID=12 VINYL CHLORIDE | ||
| 022 | I8-97125 842-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (G) ID=12 & 6.8 | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 3 | 2203- | ALL | (B) ID=14 L=47 | ||
| 483 | I1-09700 994-0 | CLIP; ENG HARNESS | 1 | 2203- | NMR81 | (B) ID=31 H=30 L=35 | ||
| 504 | I8-98208 886-0 | PROTECTOR; HARNESS | 1 | 2203- | NLR85 | |||
| 150 | I0-28050 610-0 | BOLT; CLIP | 2 | 2203- | ALL | (A) M6X10 FLANGE | ||
| 053 | I8-98018 900-2 | BRACKET; HARNESS | 1 | 2203- | ALL | (C) | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | ALL | (B) ID=10 & 16 | ||
| 022 | I1-09701 019-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (H) ID=25 L=50 | ||
| 016 | I8-97371 947-0 | CLIP; HARNESS | 1 | 2203- | NLR85 | (H) T=4.5 & 9 | ||
| 377 | I8-98164 836-0 | BOLT; CAB EARTH | 1 | 2203- | ALL | (A) M6X14 W/PL WASHER | ||
| 022 | I8-98069 482-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (C) ID=34 | ||
| 102 | I8-98143 872-0 | CLIP; BAND | 1 | 2203- | NMR81 | L=202 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | NLR85 | (I) ID=7-10; NLR85-T; NLR85-TL | ||
| 208 | I5-09709 012-0 | CLIP; HARNESS,MAG VLV | 1 | 2203- | NMR81 | (B) T=6.0; NMR81-TSD | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | ALL | M8X12 FLANGE | ||
| 038 | I0-28050 812-A | BOLT; CLIP,HARNESS | 1 | 2203- | NLR85 | (A) M8X12 FLANGE | ||
| 516 | I8-98063 767-0 | BOLT; HARNESS | 1 | 2203- | ALL | (A) M5X7 HEXALOBULAR SOCKET | ||
| 053 | I8-98018 900-2 | BRACKET; HARNESS | 1 | 2203- | ALL | (C) | ||
| 022 | I8-94475 649-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (F) ID=13.2 & 14.5 | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 2 | 2203- | ALL | (A) L=140 | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | ALL | (B) M8X12 FLANGE | ||
| 483 | I1-09700 994-0 | CLIP; ENG HARNESS | 1 | 2203- | NMR81 | (B) ID=31 H=30 L=35 | ||
| 377 | I8-98141 255-0 | BOLT; CAB EARTH | 3 | 2203- | ALL | (B) M8X18.5 W/PL WASHER | ||
| 515 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | ALL | (A) M6 FLANGE | ||
| 294 | I7-05108 010-A | NUT | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 048 | I8-97041 091-0 | CLIP; FRAME HARNESS | 1 | 2203- | NLR85 | (K) T=9.2 & 9; NLR85-TL; NLR85-BL | ||
| 577 | I8-97068 819-0 | NUT; FUSE BOX | 4 | 2203- | ALL | (B) M5 FLANGE | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | ALL | L=140 | ||
| 575 | I8-98173 144-2 | BRACKET; FUSE BOX | 1 | 2203- | ALL | |||
| 313 | I0-28450 616-0 | BOLT; BRKT | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 577 | I0-91180 106-0 | NUT; FUSE BOX | 2 | 2203- | ALL | (A) M6 FLANGE | ||
| 386 | I8-98141 256-1 | BOLT; GRAND HARNESS | 1 | 2203- | ALL | (B) M8X24 W/PL WASHER | ||
| 048 | I8-97078 642-2 | CLIP; FRAME HARNESS | 2 | 2203- | ALL | (F) ID=30 W/STUD | ||
| 016 | I8-97619 251-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (J) ID=17 L=20 | ||
| 519 | I0-91111 510-0 | NUT; EARTH CABLE | 1 | 2203- | NMR81 | M10 | ||
| 459 | I8-98020 227-3 | BRACKET; SUPPORT,HARNESS | 1 | 2203- | ALL | (A) | ||
| 242 | I0-28651 030-0 | BOLT; BRKT,HARNESS | 1 | 2203- | ALL | (B) M10X30 FLANGE | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | ALL | (B) M8X12 FLANGE | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | ALL | (B) ID=10 & 16 | ||
| 048 | I5-09707 030-1 | CLIP; FRAME HARNESS | 3 | 2203- | ALL | (C) L=250 | ||
| 048 | I1-09700 807-0 | CLIP; FRAME HARNESS | 5 | 2203- | ALL | (G) ID=33 L=63 | ||
| 577 | I0-91180 106-0 | NUT; FUSE BOX | 2 | 2203- | ALL | (A) M6 FLANGE | ||
| 577 | I8-97068 819-0 | NUT; FUSE BOX | 4 | 2203- | ALL | (B) M5 FLANGE | ||
| 102 | I8-98143 872-0 | CLIP; BAND | 1 | 2203- | NMR81 | (B) L=202 | ||
| 208 | I5-09709 013-0 | CLIP; HARNESS,MAG VLV | 2 | 2203- | NMR81 | (A) T=9.2; EXC. NMR81-TSD | ||
| 016 | I8-97371 947-0 | CLIP; HARNESS | 1 | 2203- | NLR85 | (H) T=4.5 & 9 | ||
| 007 | I8-98043 070-1 | BRACKET; CONNECTOR | 1 | 2203- | ALL | |||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (I) ID=7-10 | ||
| 048 | I8-97041 091-0 | CLIP; FRAME HARNESS | 1 | 2203- | NMR81 | (E) T=9 & 10.5 | ||
| 552 | I7-05108 010-A | NUT; BRKT,HARNESS | 2 | 2203- | ALL | (A) M8 FLANGE | ||
| 102 | I5-09707 031-1 | CLIP; BAND | 2 | 2203- | ALL | (A) L=140 | ||
| 022 | I8-94167 742-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (E) ID=6 & 8.3 | ||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (A) L=140 | ||
| 053 | I8-98039 984-2 | BRACKET; HARNESS | 1 | 2203- | ALL | (B) | ||
| 016 | I5-09709 024-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (J) T=6.0; NMR81-TSD | ||
| 048 | I8-97078 642-2 | CLIP; FRAME HARNESS | 2 | 2203- | ALL | (F) ID=30 W/STUD | ||
| 208 | I5-09709 012-0 | CLIP; HARNESS,MAG VLV | 1 | 2203- | NMR81 | (B) T=6.0; NMR81-TSD | ||
| 552 | I0-91180 110-0 | NUT; BRKT,HARNESS | 1 | 2203- | ALL | (B) M10 FLANGE | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 9 | 2203- | ALL | (B) ID=14 L=47 | ||
| 048 | I8-97041 091-0 | CLIP; FRAME HARNESS | 1 | 2203- | NLR85 | (K) T=9.2 & 9; NLR85-TL; NLR85-BL | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | ALL | (B) L=140 | ||
| 048 | I8-97041 091-0 | CLIP; FRAME HARNESS | 1 | 2203- | NMR81 | (E) T=9 & 10.5 | ||
| 102 | I5-09707 031-1 | CLIP; BAND | 2 | 2203- | ALL | (A) L=140 | ||
| 022 | I1-09707 197-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (D) L=119.5 | ||
| 007 | I8-98043 070-1 | BRACKET; CONNECTOR | 1 | 2203- | ALL | |||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | ALL | M8X12 FLANGE | ||
| 242 | I0-28050 816-0 | BOLT; BRKT,HARNESS | 3 | 2203- | ALL | (A) M8X16 FLANGE | ||
| 016 | I8-97619 251-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (J) ID=17 L=20 | ||
| 024 | I0-91180 110-0 | NUT; HARNESS | 1 | 2203- | ALL | M10 FLANGE | ||
| 102 | I5-09707 031-1 | CLIP; BAND | 2 | 2203- | ALL | L=140 | ||
| 552 | I7-05108 010-A | NUT; BRKT,HARNESS | 2 | 2203- | ALL | (A) M8 FLANGE | ||
| 048 | I1-09701 017-0 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (D) ID=31.5 H=23 L=25 | ||
| 016 | I8-97619 251-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | ID=17 L=20 | ||
| 208 | I5-09709 013-0 | CLIP; HARNESS,MAG VLV | 1 | 2203- | NMR81 | (A) T=9.2; EXC. NMR81-TSD | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 9 | 2203- | ALL | (B) ID=14 L=47 | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (B) L=100 | ||
| 102 | I8-98143 872-0 | CLIP; BAND | 1 | 2203- | NMR81 | (B) L=202 | ||
| 208 | I5-09709 013-0 | CLIP; HARNESS,MAG VLV | 1 | 2203- | NMR81 | (A) T=9.2; EXC. NMR81-TSD | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 2203- | ALL | (F) | ||
| 459 | I8-98196 974-0 | BRACKET; SUPPORT,HARNESS | 1 | 2203- | ALL | (B) | ||
| 515 | I8-98040 024-0 | NUT; BRKT | 1 | 2203- | ALL | (B) M8 FLANGE | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 1 | 2203- | NMR81 | (A) L=150 | ||
| 529 | I0-28650 825-0 | BOLT; RELAY BOX | 3 | 2203- | ALL | M8X25 FLANGE | ||
| 022 | I1-09707 197-0 | CLIP; ENG HARNESS | 1 | 2203- | NLR85 | (D) L=119.5 | ||
| 386 | I8-98141 256-1 | BOLT; GRAND HARNESS | 1 | 2203- | ALL | (B) M8X24 W/PL WASHER | ||
| 016 | I8-94154 844-0 | CLIP; HARNESS | 1 | 2203- | NLR85 | (C) ID=6 & 10 | ||
| 516 | I0-28050 812-A | BOLT; HARNESS | 1 | 2203- | NLR85 | (B) M8X12 FLANGE | ||
| 048 | I1-09700 807-0 | CLIP; FRAME HARNESS | 4 | 2203- | ALL | (G) ID=33 L=63 | ||
| 048 | I1-09700 807-0 | CLIP; FRAME HARNESS | 4 | 2203- | ALL | (G) ID=33 L=63 | ||
| 024 | I0-91180 110-0 | NUT; HARNESS | 1 | 2203- | ALL | M10 FLANGE | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | ALL | (A) L=140 | ||
| 048 | I5-09707 030-1 | CLIP; FRAME HARNESS | 3 | 2203- | ALL | (C) L=250 | ||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 1 | 2203- | NLR85 | (A) M8X18.5 W/PL WASHER | ||
| 102 | I8-98143 872-0 | CLIP; BAND | 1 | 2203- | NMR81 | L=202 | ||
| 459 | I8-98020 227-3 | BRACKET; SUPPORT,HARNESS | 1 | 2203- | ALL | (A) | ||
| 048 | I8-97371 947-0 | CLIP; FRAME HARNESS | 1 | 2203- | NLR85 | (J) T=4.5 & 9 | ||
| 377 | I8-98164 836-0 | BOLT; CAB EARTH | 1 | 2203- | ALL | (A) M6X14 W/PL WASHER | ||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 1 | 2203- | ALL | (A) L=140 | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | ALL | L=140 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | NMR81 | (I) ID=7-10 | ||
| 048 | I5-09700 319-0 | CLIP; FRAME HARNESS | 7 | 2203- | ALL | (B) ID=14 L=47 | ||
| 377 | I8-98141 255-0 | BOLT; CAB EARTH | 3 | 2203- | ALL | (B) M8X18.5 W/PL WASHER | ||
| 016 | I8-97069 515-0 | CLIP; HARNESS | 2 | 2203- | ALL | (A) ID=6 & 10-13 | ||
| 016 | I8-94154 844-0 | CLIP; HARNESS | 1 | 2203- | NLR85 | (C) ID=6 & 10 |
