8-26 | ELECTRICAL CONTROL AND OTHER PARTS
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

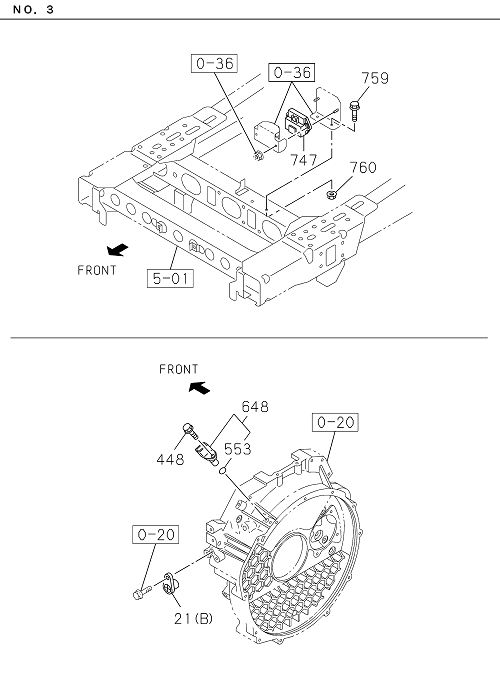

| 760 | I7-05108 010-A | NUT; CONT MODULE, TURBOCHARGER | 2 | 2203- | ALL | M8 FLANGE | ||

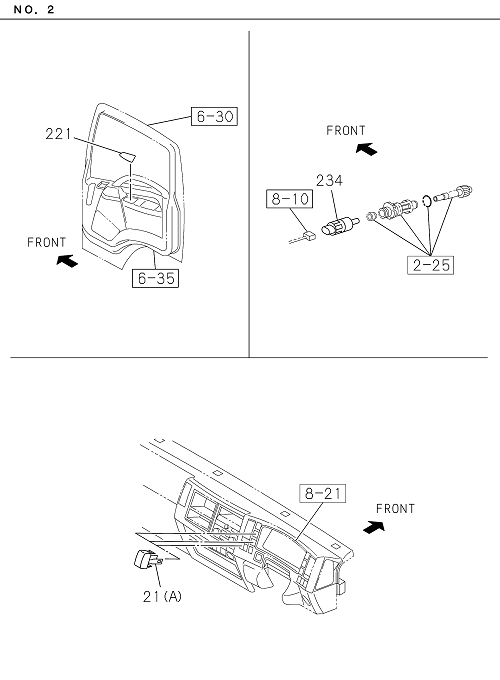

| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | ALL | |||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | ALL | |||
| 760 | I7-05108 010-A | NUT; CONT MODULE, TURBOCHARGER | 2 | 2203- | ALL | M8 FLANGE | ||
| 759 | I0-28650 825-0 | BOLT; CONT MODULE, TURBOCHARGER | 2 | 2203- | ALL | M8X25 FLANGE | ||

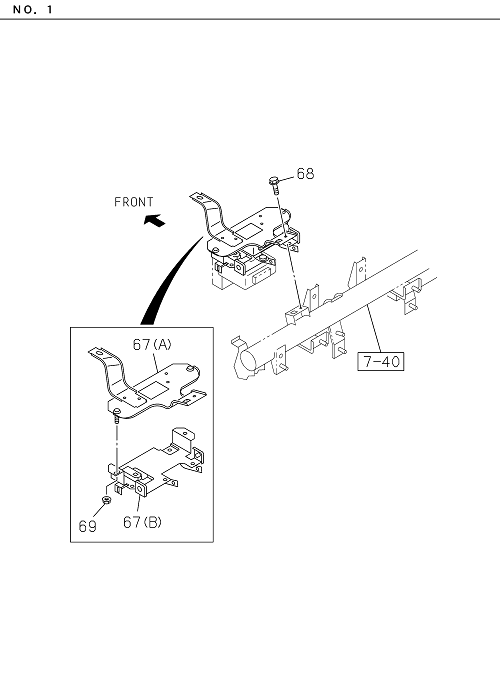

| 067 | I8-98217 377-0 | BRACKET; CONT UNIT | 1 | 2203- | ALL | (B) | ||
| 747 | I8-98162 807-0 | CONTROL UNIT; TURBOCHARGER | 1 | 2203- | NMR81 | |||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | ALL | |||
| 067 | I8-98022 170-1 | BRACKET; CONT UNIT | 1 | 2203- | ALL | (A) | ||
| 648 | I8-97606 943-0 | SENSOR; CRANK ANGLE | 1 | 2203- | NMR81 | |||
| 448 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 648 | I8-97606 943-0 | SENSOR; CRANK ANGLE | 1 | 2203- | NMR81 | |||
| 069 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | ALL | M6 FLANGE | ||
| 067 | I8-98022 170-1 | BRACKET; CONT UNIT | 1 | 2203- | ALL | (A) | ||
| 021 | I8-97848 832-0 | COVER; HOLE | 1 | 2203- | NMR81 | (B) | ||
| 021 | I8-97848 832-0 | COVER; HOLE | 1 | 2203- | NMR81 | (B) | ||
| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 2203- | ALL | 25 PULSE ALUMINUM | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 3 | 2203- | ALL | (A) | ||
| 069 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | ALL | M6 FLANGE | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 3 | 2203- | ALL | (A) | ||
| 759 | I0-28650 825-0 | BOLT; CONT MODULE, TURBOCHARGER | 2 | 2203- | ALL | M8X25 FLANGE | ||
| 553 | I8-97369 404-0 | GASKET | 1 | 2203- | ALL | ID=14.2 OD=18.8 | ||
| 068 | I0-28450 612-0 | BOLT; BRKT | 1 | 2203- | ALL | M6X12 FLANGE | ||
| 747 | I8-98162 807-0 | CONTROL UNIT; TURBOCHARGER | 1 | 2203- | NMR81 | |||
| 448 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | ALL | |||
| 067 | I8-98217 377-0 | BRACKET; CONT UNIT | 1 | 2203- | ALL | (B) | ||
| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 2203- | ALL | 25 PULSE ALUMINUM | ||
| 553 | I8-97369 404-0 | GASKET | 1 | 2203- | ALL | ID=14.2 OD=18.8 | ||
| 068 | I0-28450 612-0 | BOLT; BRKT | 1 | 2203- | ALL | M6X12 FLANGE |
