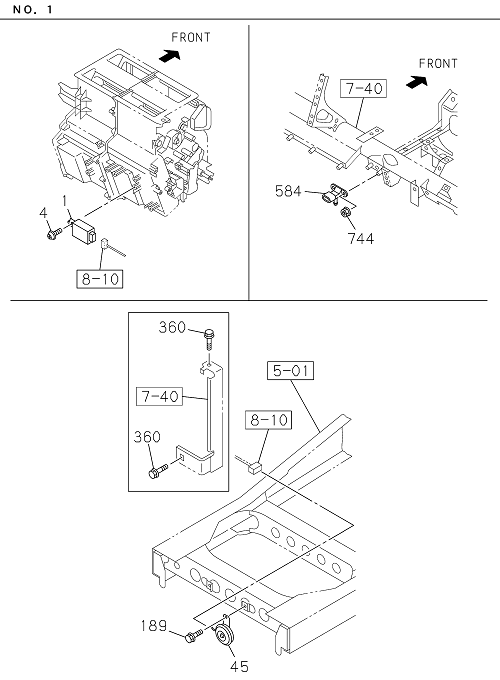

8-28 | CHASSIS ELECTRICAL
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | ALL | 24V 10A | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | ALL | 24V 10A | ||
| 360 | I8-98081 175-0 | BOLT; RELAY BOX | 1 | 2203- | ALL | M6X20 W/LK&PL WASHER | ||

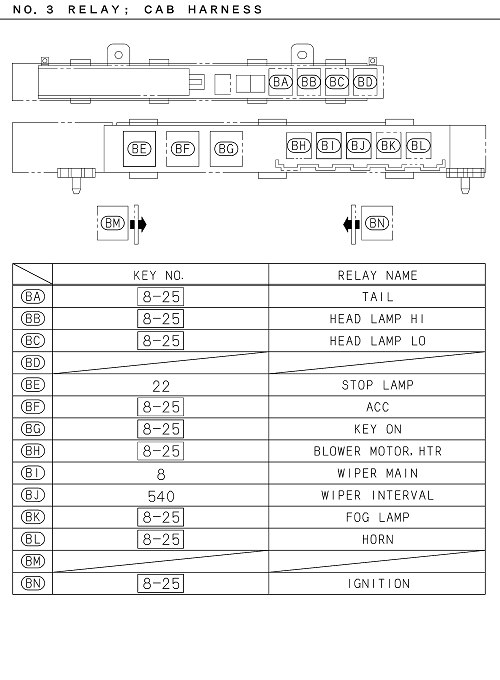

| 540 | I6-97173 035-0 | RELAY; WIPER INTERVAL | 1 | 2203- | ALL | (IADG) 24V 10A | ||
| 045 | I8-97211 740-2 | HORN; LOW NOTE | 1 | 2203- | ALL | |||
| 022 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 2203- | ALL | 24V 12.5A | ||
| 045 | I8-97211 740-2 | HORN; LOW NOTE | 1 | 2203- | ALL | |||
| 360 | I0-28650 616-0 | BOLT; RELAY BOX | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | ALL | M6 FLANGE | ||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | ALL | |||
| 360 | I8-98081 175-0 | BOLT; RELAY BOX | 1 | 2203- | ALL | M6X20 W/LK&PL WASHER | ||
| 666 | I8-98167 173-0 | RELAY; STARTER | 1 | 2203- | ALL | 24V 10A | ||
| 540 | I8-97173 035-1 | RELAY; WIPER INTERVAL | 1 | 2203- | ALL | 24V 10A | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | ALL | M6 FLANGE | ||

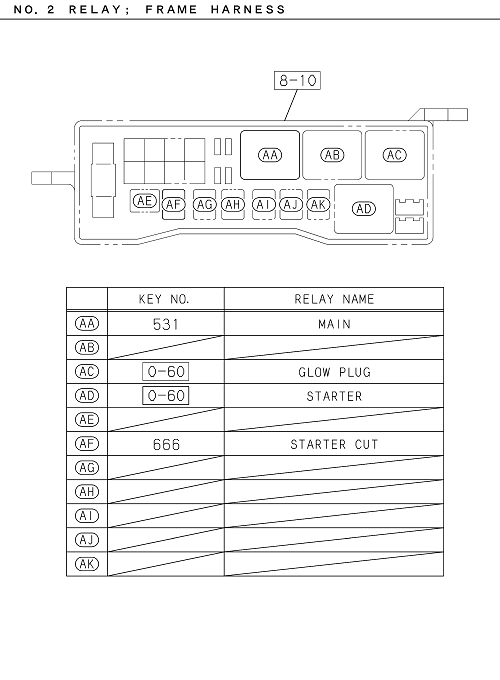

| 531 | I8-98259 779-0 | RELAY; MAIN | 1 | 2203- | ALL | 24V 30A | ||
| 531 | I8-98259 779-0 | RELAY; MAIN | 1 | 2203- | ALL | 24V 30A | ||
| 189 | I8-98141 255-0 | BOLT; HORN | 1 | 2203- | ALL | M8X18.5 W/PL WASHER | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | ALL | |||
| 022 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 2203- | ALL | 24V 12.5A | ||
| 004 | I0-72180 516-0 | SCREW; FLASHER UNIT | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 540 | I6-97173 035-0 | RELAY; WIPER INTERVAL | 1 | 2203- | ALL | (IADG) 24V 10A | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | ALL | (IADG) 24V 10A | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | ALL | (IADG) 24V 10A | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | ALL | |||
| 540 | I8-97173 035-1 | RELAY; WIPER INTERVAL | 1 | 2203- | ALL | 24V 10A | ||
| 189 | I8-98141 255-0 | BOLT; HORN | 1 | 2203- | ALL | M8X18.5 W/PL WASHER | ||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | ALL | |||
| 004 | I0-72180 516-0 | SCREW; FLASHER UNIT | 1 | 2203- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 666 | I8-98167 173-0 | RELAY; STARTER | 1 | 2203- | ALL | 24V 10A | ||
| 360 | I0-28650 616-0 | BOLT; RELAY BOX | 1 | 2203- | ALL | M6X16 FLANGE |
