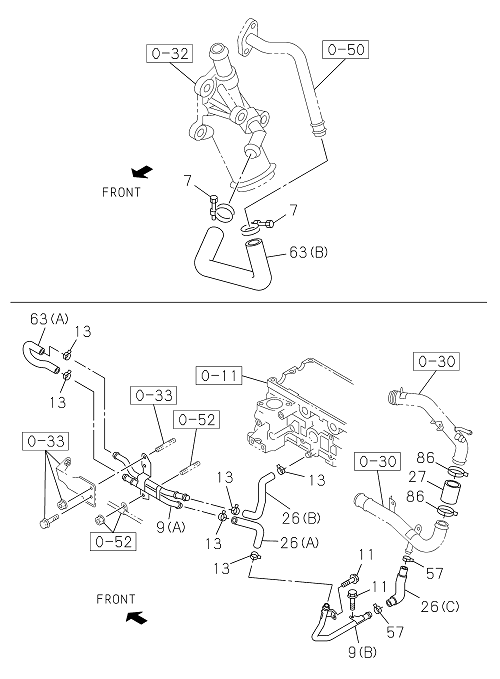

8-45 | HEATER PIPING
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 086 | I8-98110 004-0 | CLIP; HTR HOSE | 2 | 2203- | NLR85 | |||
| 009 | I8-98209 291-2 | PIPE; HTR | 1 | 2203- | NLR85 | (B) | ||
| 007 | I8-97359 141-0 | CLIP; WATER HOSE | 2 | 2203- | NMR81 | ID=25 | ||
| 027 | I8-98106 016-0 | HOSE; WATER,HTR UNIT TO WATER PIPE | 1 | 2203- | NLR85 | |||
| 026 | I8-98328 286-0 | HOSE; HTR | 1 | 2203- | NLR85 | (B) | ||
| 013 | I8-94125 862-1 | CLIP; HTR HOSE | 2 | 2203- | NLR85 | ID=20.8 | ||
| 063 | I8-94134 250-A | HOSE; WATER | 1 | 2203- | NMR81 | (B) | ||
| 026 | I8-98000 101-2 | HOSE; HTR | 1 | 2203- | NLR85 | (C) | ||
| 026 | I8-98143 868-0 | HOSE; HTR | 1 | 2203- | NLR85 | (A) | ||
| 026 | I8-98328 286-0 | HOSE; HTR | 1 | 2203- | NLR85 | (B) | ||
| 011 | I0-28050 816-0 | BOLT; HTR PIPE | 2 | 2203- | NLR85 | M8X16 FLANGE | ||
| 011 | I0-28050 816-0 | BOLT; HTR PIPE | 2 | 2203- | NLR85 | M8X16 FLANGE | ||
| 026 | I8-98143 868-0 | HOSE; HTR | 1 | 2203- | NLR85 | (A) | ||
| 007 | I8-97359 141-0 | CLIP; WATER HOSE | 2 | 2203- | NMR81 | ID=25 | ||
| 026 | I8-98000 101-2 | HOSE; HTR | 1 | 2203- | NLR85 | (C) | ||
| 009 | I8-98209 291-2 | PIPE; HTR | 1 | 2203- | NLR85 | (B) | ||
| 027 | I8-98106 016-0 | HOSE; WATER,HTR UNIT TO WATER PIPE | 1 | 2203- | NLR85 | |||
| 063 | I8-94134 250-A | HOSE; WATER | 1 | 2203- | NMR81 | (B) | ||
| 057 | I8-94125 862-1 | CLIP; HOSE | 2 | 2203- | NLR85 | ID=20.8 | ||
| 009 | I8-98028 829-1 | PIPE; HTR | 1 | 2203- | NLR85 | (A) | ||
| 086 | I8-98110 004-0 | CLIP; HTR HOSE | 2 | 2203- | NLR85 | |||
| 009 | I8-98028 829-1 | PIPE; HTR | 1 | 2203- | NLR85 | (A) | ||
| 063 | I8-98015 119-3 | HOSE; WATER | 1 | 2203- | NLR85 | (A) | ||
| 013 | I8-94125 862-1 | CLIP; HTR HOSE | 2 | 2203- | NLR85 | ID=20.8 | ||
| 063 | I8-98015 119-3 | HOSE; WATER | 1 | 2203- | NLR85 | (A) |
