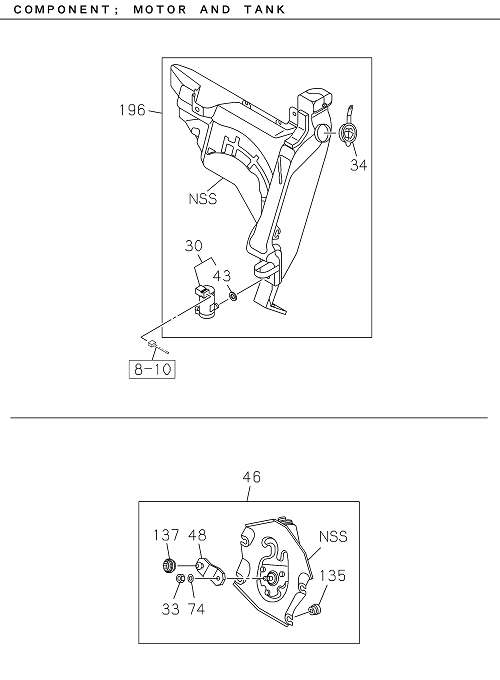

8-80 | WINDSHIELD WIPER AND WASHER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 095 | I7-05108 010-A | NUT; WASHER TANK | 1 | 2203- | ALL | M8 FLANGE | ||
| 095 | I7-05108 010-A | NUT; WASHER TANK | 1 | 2203- | ALL | M8 FLANGE | ||
| 048 | I8-98052 215-0 | ARM; WIPER MOTOR | 1 | 2203- | ALL | |||
| 043 | I8-94352 050-0 | RUBBER; GASKET,TANK | 1 | 2203- | ALL | |||
| 027 | I8-94310 730-0 | BOLT; WASHER TANK | 2 | 2203- | ALL | M8X16 W/LK&PL WASHER | ||
| 114 | I8-94282 851-0 | COVER; FRT WIPER ARM | 2 | 2203- | ALL | BLACK | ||
| 005 | I8-98053 785-A | ARM; WIPER | 1 | 2203- | ALL | |||
| 034 | I8-97855 140-0 | CAP; WASHER TANK | 1 | 2203- | ALL | |||
| 010 | I0-91110 508-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 2203- | ALL | M8 | ||
| 009 | I8-98053 793-0 | RUBBER; FRT WIPER BLADE | 2 | 2203- | ALL | L=475 | ||
| 030 | I8-97855 139-0 | MOTOR ASM; FRT WASHER TANK | 1 | 2203- | ALL | |||
| 003 | I8-98053 764-0 | PIVOT ASM; FRT WIPER | 1 | 2203- | ALL | |||
| 135 | I8-98052 214-0 | RUBBER; CUSHION,WIPER MOTOR | 4 | 2203- | ALL | |||
| 230 | I8-98029 097-0 | COLLAR; WIPER LINK | 2 | 2203- | ALL | |||
| 198 | I8-98029 164-0 | COVER; PIVOT,WIPER | 2 | 2203- | ALL | |||
| 051 | I8-98029 167-0 | NUT; WIPER MOTOR LINK | 2 | 2203- | ALL | M24 | ||
| 040 | I5-83363 003-0 | JOINT; WASHER HOSE | 1 | 2203- | ALL | 3WAY | ||
| 042 | I8-97134 154-0 | CLIP; WASHER HOSE | 1 | 2203- | ALL | |||
| 228 | I8-98029 169-1 | HOSE ASM; WASHER | 1 | 2203- | ALL | |||
| 228 | I8-98029 169-1 | HOSE ASM; WASHER | 1 | 2203- | ALL | |||
| 034 | I8-97855 140-0 | CAP; WASHER TANK | 1 | 2203- | ALL | |||
| 074 | I8-97162 101-0 | WASHER; ARM TO MOTOR | 1 | 2203- | ALL | ID=8 | ||
| 039 | I8-98029 139-1 | NOZZLE; WINDSHIELD WASHER | 2 | 2203- | ALL | |||
| 003 | I8-98053 764-0 | PIVOT ASM; FRT WIPER | 1 | 2203- | ALL | |||
| 199 | I8-98079 030-0 | COVER; NOZZLE,WIPER | 2 | 2203- | ALL | |||
| 048 | I8-98052 215-0 | ARM; WIPER MOTOR | 1 | 2203- | ALL | |||
| 043 | I8-94352 050-0 | RUBBER; GASKET,TANK | 1 | 2203- | ALL | |||
| 036 | I8-98029 171-2 | HOSE; WASHER | 1 | 2203- | ALL | L=1070 | ||
| 040 | I5-83363 003-0 | JOINT; WASHER HOSE | 1 | 2203- | ALL | 3WAY | ||
| 002 | I8-98053 767-0 | LINK; FRT WIPER | 1 | 2203- | ALL | L=400 W/CAP STAMP M | ||
| 230 | I8-98029 097-0 | COLLAR; WIPER LINK | 2 | 2203- | ALL | |||
| 196 | I8-98029 135-3 | TANK; WASHER | 1 | 2203- | ALL | |||
| 033 | I8-97855 157-0 | NUT; MOTOR TO ARM | 1 | 2203- | ALL | M8 | ||
| 074 | I8-97162 101-0 | WASHER; ARM TO MOTOR | 1 | 2203- | ALL | ID=8 | ||
| 198 | I8-98029 164-0 | COVER; PIVOT,WIPER | 2 | 2203- | ALL | |||
| 114 | I8-94282 851-0 | COVER; FRT WIPER ARM | 2 | 2203- | ALL | BLACK | ||
| 196 | I8-98029 135-3 | TANK; WASHER | 1 | 2203- | ALL | |||
| 002 | I8-98053 767-0 | LINK; FRT WIPER | 1 | 2203- | ALL | L=400 W/CAP STAMP M | ||
| 137 | I8-98052 218-0 | SEAL; JOINT,WIPER MOTOR | 1 | 2203- | ALL | |||
| 010 | I0-91110 508-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 2203- | ALL | M8 | ||
| 046 | I8-98029 123-3 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 2203- | ALL | |||
| 030 | I8-97855 139-0 | MOTOR ASM; FRT WASHER TANK | 1 | 2203- | ALL | |||
| 036 | I8-98029 171-2 | HOSE; WASHER | 1 | 2203- | ALL | L=1070 | ||
| 033 | I8-97855 157-0 | NUT; MOTOR TO ARM | 1 | 2203- | ALL | M8 | ||
| 051 | I8-98029 167-0 | NUT; WIPER MOTOR LINK | 2 | 2203- | ALL | M24 | ||
| 199 | I8-98079 030-0 | COVER; NOZZLE,WIPER | 2 | 2203- | ALL | |||
| 137 | I8-98052 218-0 | SEAL; JOINT,WIPER MOTOR | 1 | 2203- | ALL | |||
| 042 | I8-97134 154-0 | CLIP; WASHER HOSE | 1 | 2203- | ALL | |||
| 027 | I8-94310 730-0 | BOLT; WASHER TANK | 2 | 2203- | ALL | M8X16 W/LK&PL WASHER | ||
| 007 | I8-98053 790-A | BLADE; WIPER | 2 | 2203- | ALL | |||
| 135 | I8-98052 214-0 | RUBBER; CUSHION,WIPER MOTOR | 4 | 2203- | ALL | |||
| 007 | I8-98053 790-A | BLADE; WIPER | 2 | 2203- | ALL | |||
| 002 | I8-98053 770-0 | LINK; FRT WIPER | 1 | 2203- | ALL | L=590 W/CAP | ||
| 039 | I8-98029 139-1 | NOZZLE; WINDSHIELD WASHER | 2 | 2203- | ALL | |||
| 005 | I8-98053 785-A | ARM; WIPER | 1 | 2203- | ALL | |||
| 002 | I8-98053 770-0 | LINK; FRT WIPER | 1 | 2203- | ALL | L=590 W/CAP | ||
| 005 | I8-98053 784-A | ARM; WIPER | 1 | 2203- | ALL | |||
| 205 | I8-94148 420-0 | BOLT; WIPER MOTOR | 4 | 2203- | ALL | M6X28 W/PL WASHER | ||
| 003 | I8-98053 763-0 | PIVOT ASM; FRT WIPER | 1 | 2203- | ALL | |||
| 046 | I8-98029 123-3 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 2203- | ALL | |||
| 205 | I8-94148 420-0 | BOLT; WIPER MOTOR | 4 | 2203- | ALL | M6X28 W/PL WASHER | ||
| 003 | I8-98053 763-0 | PIVOT ASM; FRT WIPER | 1 | 2203- | ALL | |||
| 009 | I8-98053 793-0 | RUBBER; FRT WIPER BLADE | 2 | 2203- | ALL | L=475 | ||
| 005 | I8-98053 784-A | ARM; WIPER | 1 | 2203- | ALL |
