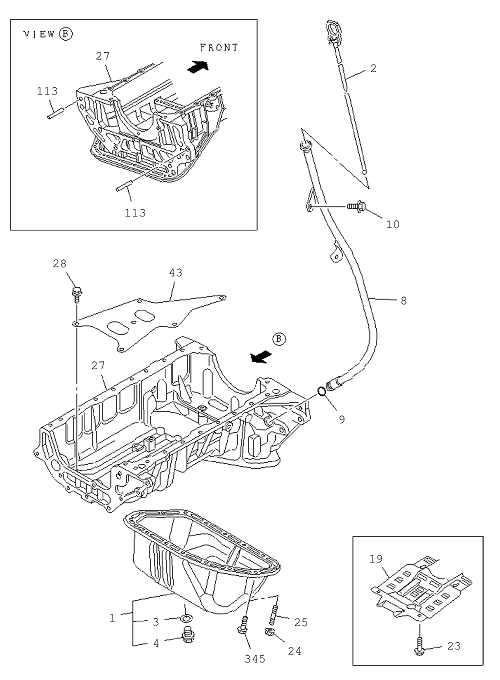

0-13 | OIL PAN AND LEVEL GAUGE
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 43 | I8-98225 711-0 | PLATE; CRANKCASE | 1 | 1602- | A | |||
| 1 | I8-98132 001-2 | PAN ASM; OIL | 1 | 1602- | A | 4X4(UCS** *) | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 1602- | A | 02 .343 M8X16 FLANGE | ||
| 8 | I8-98228 277-2 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1602- | A | |||
| 345 | I0-28050 812-0 | BOLT; SENSOR,OIL LEVEL | 14 | 1602- | A | 4X4(UCS***) 02.343 M8X12 FLANGE | ||
| 2 | I8-98228 328-2 | GAUGE; OIL LEVEL | 1 | 1602- | A | 4X4(UCS***) | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 1602- | A | 02 .343 M8X16 FLANGE | ||
| 4 | I8-97329 621-0 | PLUG; DRAIN,OIL | 1 | 1602- | A | M14X14 | ||
| 1 | I8-98156 371-0 | PAN ASM; OIL | 1 | 1602- | A | 4X2 (UCB***) | ||
| 24 | I0-91180 208-0 | NUT; OIL PAN | 2 | 1602- | A | 01.540 M8 FLANGE | ||
| 113 | I9-08161 032-0 | PIN; STRAIGHT | 2 | 1602- | A | 4X2(UCB***) 08.939 OD=10 L=32 | ||
| 25 | I0-41010 816-0 | STUD; OIL PAN | 2 | 1602- | A | M8X16 L=2 8 | ||
| 2 | I8-98228 327-2 | GAUGE; OIL LEVEL | 1 | 1602- | A | 4X2(UCB***) | ||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 1602- | A | ID=14.2 OD=24 | ||
| 345 | I0-28050 812-0 | BOLT; SENSOR,OIL LEVEL | 21 | 1602- | A | 4X2(UCB***) 02 .343 M8X12 FLANGE | ||
| 27 | I8-98225 709-3 | CRANKCASE | 1 | 1602- | A | 4X2(UCB***) | ||
| 9 | I8-98034 629-0 | GASKET; GUIDE TUBE,OIL LEVEL GAU | 1 | 1602- | A | ID=11 OD=15.8 | ||
| 27 | I8-98225 708-2 | CRANKCASE | 1 | 1602- | A | 4X4(UCS***) |
