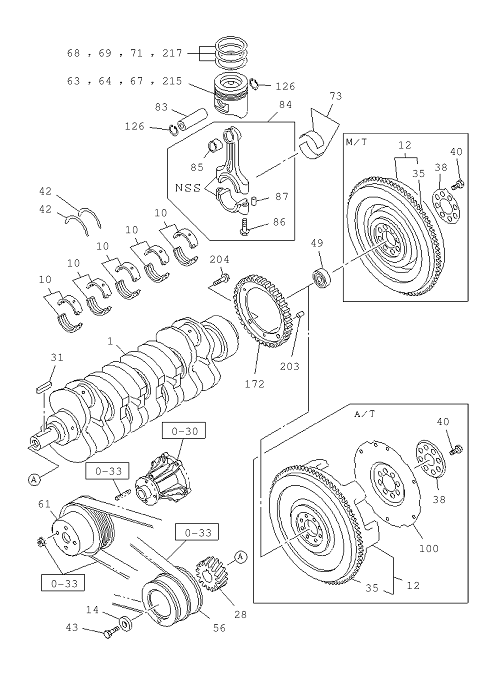

0-15 | CRANKSHAFT PISTON AND FLYWHEEL
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 56 | I8-98183 902-0 | PULLEY; CR/SHF DAMPER | 1 | 1602- | A | 2 -GROOVE | ||
| 49 | I8-97920 344-0 | BEARING; PILOT | 1 | 1602- | A | 4X4 (UCS***) 00.096 NSK | ||
| 64 | I8-98132 708-1 | PISTON; O/S=0.50 | 4 | 1602- | A | |||
| 43 | I8-97373 852-1 | BOLT; CR/SHF PULLEY | 1 | 1602- | A | M16X43 | ||
| 49 | I8-97920 344-A | BEARING; PILOT | 1 | 1602- | A | (IADG) 4X4 (UCS***) NACHI | ||
| 217 | I8-98171 043-0 | RING SET; PIST0N,0/S=0.75 | 4 | 1602- | A | |||
| 1 | I8-98131 999-1 | CRANKSHAFT | 1 | 1602- | A | |||
| 84 | I8-97357 716-3 | ROD ASM; CONN | 4 | 1602- | A | |||
| 215 | I8-98132 709-1 | PISTON; 0/S=0.75 | 4 | 1602- | A | |||
| 85 | I8-97383 066-0 | BUSHING; CONNROD | 4 | 1602- | A | AFTER PRESS FITTING,SHAPE T | ||
| 87 | I9-08160 508-0 | PIN; CONNROD BIG END | 8 | 1602- | A | 0D= 5 L=8 | ||
| 86 | I8-98048 538-0 | BOLT; CONNROD | 8 | 1602- | A | M11X44.5 | ||
| 10 | I8-97388 503-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1602- | A | BLACK | ||
| 10 | I8-97388 506-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1602- | A | RED | ||
| 63 | I8-98132 550-1 | PISTON | 4 | 1602- | A | GRADE=C | ||
| 172 | I8-98163 693-0 | ROTOR; CRANK SENSOR | 1 | 1602- | A | |||
| 38 | I8-98195 090-0 | WASHER; FLYWHEEL | 1 | 1602- | A | 4X2(UCB***) | ||
| 10 | I8-97388 502-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1602- | A | GREEN | ||
| 49 | I8-97920 344-A | BEARING; PILOT | 1 | 1602- | A | (IADG) 4X4 (UCS***) 00.096 NSK | ||
| 63 | I8-98132 549-1 | PISTON | 4 | 1602- | A | GRADE=B | ||
| 10 | I8-97388 504-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1602- | A | BLUE | ||
| 71 | I8-98171 041-0 | RING SET; PISTON,O/S=0.25 | 4 | 1602- | A | |||
| 73 | I8-97388 735-0 | METAL SET; CONN ROD,STANDARD | 4 | 1602- | A | |||
| 12 | I8-98132 505-0 | FLYWHEEL | 1 | 1602- | A | 4X2(UCB***) | ||
| 40 | I8-97941 069-0 | BOLT; FLYWHEEL | 8 | 1602- | A | 4X4(UCS***) M13X36 | ||
| 61 | I8-98131 628-0 | PULLEY; FAN DRIVE | 1 | 1602- | A | 1-GROOVE | ||
| 38 | I8-94133 970-1 | WASHER; FLYWHEEL | 1 | 1602- | A | 4X4 (UCS***) 00. 669 | ||
| 28 | I8-97312 199-1 | GEAR; CR/SHF | 1 | 1602- | A | Z = 4 4 | ||
| 63 | I8-98132 548-1 | PISTON | 4 | 1602- | A | GRADE=A | ||
| 42 | I8-97354 055-1 | WASHER; THRUST,CR/SHF | 2 | 1602- | A | |||
| 67 | I8-98132 707-1 | PISTON; O/S=0.25 | 4 | 1602- | A | |||
| 31 | I9-08030 743-0 | KEY; FEATHER,CR/SHF | 1 | 1602- | A | .50625 | ||
| 14 | I5-09503 127-1 | WASHER; PULLEY DAMPER | 1 | 1602- | A | ID=16.5 OD=4 5 T=12 | ||
| 126 | I8-94460 687-0 | RING; SNAP,PISTON PIN | 8 | 1602- | A | 0D=3 7.5 | ||
| 83 | I8-98150 333-0 | PIN; PISTON | 4 | 1602- | A | |||
| 69 | I8-98171 042-0 | RING SET; PIST0N,0/S=0.50 | 4 | 1602- | A | |||
| 204 | I8-97944 142-1 | BOLT; ROTOR | 3 | 1602- | A | M6X10 HEXLOBE | ||
| 35 | I8-97912 516-1 | GEAR; RING | 1 | 1602- | A | 4X4 (UCS***) Z = 108 | ||
| 49 | I8-97920 344-0 | BEARING; PILOT | 1 | 1602- | A | 4X4 (UCS***) NACHI | ||
| 203 | I9-08160 508-0 | PIN; ROTOR | 1 | 1602- | A | 00.613 0D= 5 L=8 | ||
| 40 | I8-97080 561-1 | BOLT; FLYWHEEL | 8 | 1602- | A | 4X2 (UCB***) M13X78 | ||
| 68 | I8-98171 040-0 | RING SET; PISTON,STANDARD | 4 | 1602- | A | |||
| 12 | I8-98077 180-0 | FLYWHEEL | 1 | 1602- | A | 4X4(UCS***) | ||
| 35 | I8-94364 395-1 | GEAR; RING | 1 | 1602- | A | 4X2(UCB***) Z = 122 | ||
| 10 | I8-97388 505-0 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1602- | A | YELLOW | ||
| 100 | I8-98192 379-0 | PLATE; FLEX | 1 | 1602- | A | 4X2(UCB***) |
