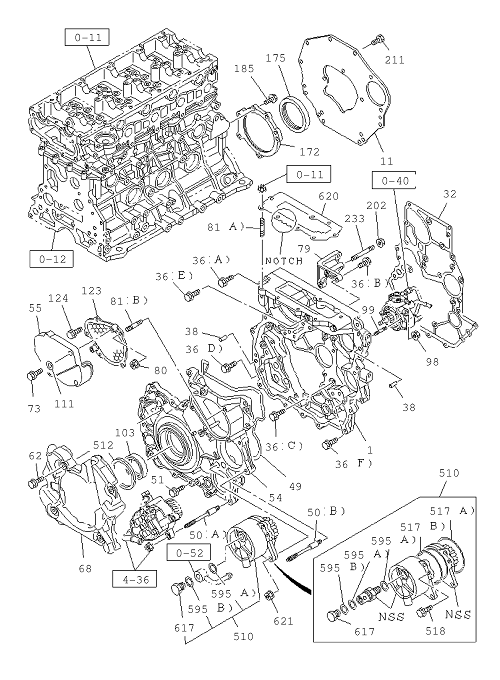

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I0-28050 816-0 | BOLT; GEAR CASE | 1 | 1602- | A | 02 . 343 (C) M8X16 FLANGE | ||
| 80 | I0-91180 206-0 | NUT; COVER | 2 | 1602- | A | 01.540 M6 FLANGE | ||
| 99 | I0-49140 830-0 | STUD; INJ PUMP | 2 | 1602- | A | 00.413 M8X30 L=48 | ||
| 233 | I8-97367 083-0 | STUD; BRKT | 1 | 1602- | A | 03.275 M8X71 L=83 | ||
| 175 | I8-97071 561-1 | SEAL; OIL,CR/SHF,RR | 1 | 1602- | A | ID=95 OD=118 | ||
| 595 | I5-19679 003-0 | GASKET; VLV | 1 | 1602- | A | 03 .280 (B) ID=12 OD=2 4 | ||
| 50 | I8-97354 808-2 | STUD | 5 | 1602- | A | (A) M8X27,M8X14 L=64.5 | ||
| 32 | I8-98228 292-0 | GASKET; GEAR CASE TO C/BL | 1 | 1602- | A | |||
| 49 | I8-97945 298-0 | GASKET; GEAR CASE TO COVER | 1 | 1602- | A | |||
| 517 | I8-98251 768-0 | GASKET; VAC PUMP | 1 | 1602- | A | (B) | ||
| 51 | I8-97354 697-1 | BOLT; GEAR CASE COVER | 14 | 1602- | A | M6X12 | ||
| 36 | I0-28650 825-0 | BOLT; GEAR CASE | 16 | 1602- | A | 06 .216 (D) M8X2 5 FLANGE | ||
| 103 | I8-97943 951-0 | SEAL; OIL,CR/SHF,FRT | 1 | 1602- | A | |||
| 172 | I8-97379 826-0 | RETAINER; CR/SHF | 1 | 1602- | A | |||
| 620 | I8-97328 828-2 | GASKET; GEAR CASE | 1 | 1602- | A | GRADE A T=1.40 1-NOTCH | ||
| 50 | I8-98134 221-0 | STUD | 1 | 1602- | A | (B) M8X70,M8X14 L=107.5 | ||
| 38 | I9-08151 020-0 | PIN; GEAR CASE COVER | 2 | 1602- | A | 00. 669 OD=10 L=20 | ||
| 620 | I8-97331 632-2 | GASKET; GEAR CASE | 1 | 1602- | A | GRADE C T=1.50 3-NOTCH | ||
| 81 | I0-49140 830-0 | STUD; GEAR CASE COVER FIX | 2 | 1602- | A | 00.413 (A) M8X30 L=48 | ||
| 36 | I0-28050 835-0 | BOLT; GEAR CASE | 1 | 1602- | A | 03.162 (E) M8X3 5 FLANGE | ||
| 517 | I0-95690 271-0 | GASKET; VAC PUMP | 1 | 1602- | A | (A) | ||
| 1 | I8-98217 735-0 | CASE; TIMING GEAR | 1 | 1602- | A | |||
| 73 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 1602- | A | 03.162 M6X12 FLANGE | ||
| 621 | I0-91180 208-0 | NUT; VAC PUMP | 3 | 1602- | A | 01.540 M8 FLANGE | ||
| 123 | I8-97371 720-1 | COVER; TIMING,LWR | 1 | 1602- | A | |||
| 36 | I0-28650 830-0 | BOLT; GEAR CASE | 3 | 1602- | A | 03 .403 (B) M8X3 0 FLANGE | ||
| 124 | I0-28050 616-0 | BOLT; TIMING COVER | 3 | 1602- | A | 09. 242 M6X16 FLANGE | ||
| 36 | I0-28050 860-0 | BOLT; GEAR CASE | 1 | 1602- | A | 04 . 686 (A) M8X60 FLANGE | ||
| 595 | I5-19679 002-0 | GASKET; VLV | 2 | 1602- | A | 03 .280 (A) ID=18 OD=2 4 | ||
| 55 | I8-97375 190-1 | COVER; NOISE SHIELD | 1 | 1602- | A | |||
| 54 | I8-98228 336-1 | COVER; GEAR CASE | 1 | 1602- | A | |||
| 175 | I6-97071 561-0 | SEAL; OIL,CR/SHF,RR | 1 | 1602- | A | (IADG) ID=95 OD=118 | ||
| 11 | I8-98162 657-1 | PLATE; RR,C/BL | 1 | 1602- | A | 4X4(UCS***) | ||
| 36 | I0-28050 845-0 | BOLT; GEAR CASE | 2 | 1602- | A | 09.173 (F) M8X4 5 FLANGE | ||
| 81 | I0-41010 616-0 | STUD; GEAR CASE COVER FIX | 2 | 1602- | A | (B) M6X16 L=25 | ||
| 98 | I0-91180 208-0 | NUT; STUD,INJ PUMP | 2 | 1602- | A | 01.540 M8 FLANGE | ||
| 185 | I0-28650 825-0 | BOLT; RET TO C/BL | 5 | 1602- | A | 06.216 M8X2 5 FLANGE | ||
| 79 | I8-98107 106-0 | BRACKET; GEAR CASE COVER | 1 | 1602- | A | |||
| 620 | I8-97331 631-2 | GASKET; GEAR CASE | 1 | 1602- | A | GRADE B T=1.45 2-NOTCH | ||
| 512 | I8-97373 716-0 | RUBBER; SPACE | 1 | 1602- | A | |||
| 617 | I8-97376 402-0 | BOLT; CHECK VLV | 1 | 1602- | A | |||
| 111 | I0-91614 806-0 | WASHER; PL | 2 | 1602- | A | ID= 6.4 OD=22 | ||
| 211 | I8-97916 324-1 | BOLT; HSG | 3 | 1602- | A | 00.683 M12X25 | ||
| 518 | I8-97184 180-0 | BOLT; VAC PUMP | 3 | 1602- | A | |||
| 510 | I8-98251 765-0 | PUMP ASM; VACUUM | 1 | 1602- | A | |||
| 11 | I8-98132 021-0 | PLATE; RR,C/BL | 1 | 1602- | A | 4X2(UCB***) | ||
| 62 | I0-28650 620-0 | BOLT; COVER | 4 | 1602- | A | 03.162 M6X2 0 FLANGE | ||
| 202 | I0-91180 208-0 | NUT; BRKT | 1 | 1602- | A | 01.540 M8 FLANGE | ||
| 68 | I8-98228 636-0 | COVER ASM; GEAR CASE COVER | 1 | 1602- | A |
