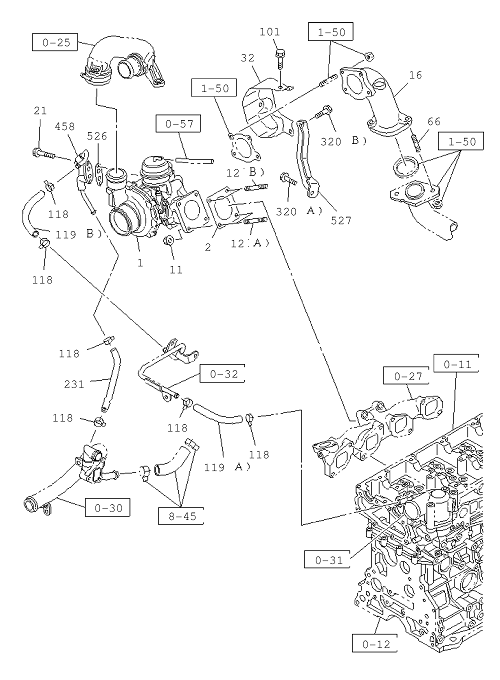

0-36 | TURBOCHARGER SYSTEM
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 118 | I8-98179 581-0 | CLIP; WATER HOSE | 6 | 1602- | A | ID=15.1 | ||
| 119 | I8-98179 580-0 | HOSE; WATER,TURBOCHARGER | 1 | 1602- | A | (B) L=170 | ||
| 320 | I0-28650 820-0 | BOLT; BRKT,TURBOCHARGER | 1 | 1602- | A | 01.531 (A) M8X2 0 FLANGE | ||
| 12 | I8-97378 062-0 | STUD; TURBOCHARGER | 2 | 1602- | A | 03.601 (A) M8X25 L=36 | ||
| 11 | I8-97379 384-0 | NUT; TURBO CHARGE R | 4 | 1602- | A | M8 FLANGE | ||
| 16 | I8-98250 275-0 | ADAPTER; EXH PIPE | 1 | 1602- | A | |||
| 2 | I8-98132 073-0 | GASKET; TURBOCHARGER TO EXH MANI | 1 | 1602- | A | |||
| 231 | I8-98228 462-0 | HOSE; RUBBER,TURBOCHARGER OUT | 1 | 1602- | A | |||
| 66 | I0-44011 025-0 | STUD; EXH PIPE | 2 | 1602- | A | M10X25 L=4 0 | ||
| 101 | I0-28050 812-0 | BOLT; HEAT PROTECTOR | 2 | 1602- | A | 02.343 M8X12 FLANGE | ||
| 527 | I8-98156 388-0 | BRACKET; TURBOCHARGER | 1 | 1602- | A | |||
| 458 | I8-98184 505-0 | PIPE; WATER,TURBOCHARGER | 1 | 1602- | A | |||
| 320 | I8-94368 563-1 | BOLT; BRKT,TURBOCHARGER | 1 | 1602- | A | 03.670 (B) M8X18 FLANGE | ||
| 21 | I0-28050 645-0 | BOLT; PIPE | 2 | 1602- | A | 01.652 M6X4 5 FLANGE | ||
| 1 | I8-98235 628-1 | TURBOCHARGER ASM | 1 | 1602- | A | |||
| 526 | I8-97352 985-0 | GASKET; PLATE | 1 | 1602- | A | 1519 | ||
| 119 | I8-98239 061-0 | HOSE; WATER,TURBOCHARGER | 1 | 1602- | A | (A) L=163 . 5 | ||
| 12 | I8-97378 064-0 | STUD; TURBOCHARGER | 2 | 1602- | A | 03.604 (B) M8X30 L=41 | ||
| 32 | I8-98156 389-0 | PROTECTOR; HEAT,TURBOCHARGER | 1 | 1602- | A |
