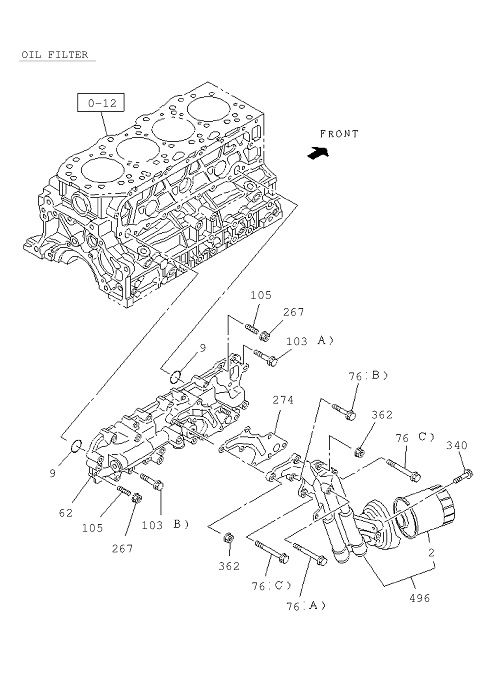

0-50 | OIL COOLER AND OIL FILTER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 103 | I0-28050 845-0 | BOLT; OIL COOLER | 13 | 1602- | A | 09 . 173 (B) M8X4 5 FLANGE | ||
| 496 | I8-98226 423-1 | FILTER ASM; OIL | 1 | 1602- | A | |||
| 103 | I0-28050 820-0 | BOLT; OIL COOLER | 1 | 1602- | A | 04 .338 (A) M8X2 0 FLANGE | ||
| 62 | I8-98226 843-0 | COOLER ASM; OIL | 1 | 1602- | A | |||
| 2 | I6-98165 071-0 | ELEMENT; OIL FILTER | 1 | 1602- | A | (IADG) | ||
| 267 | I0-91180 208-0 | NUT; OIL COOLER | 2 | 1602- | A | 01.540 M8 FLANGE | ||
| 340 | I0-28650 840-0 | BOLT; BRKT | 1 | 1602- | A | 00.685 M8X4 0 FLANGE | ||
| 76 | I0-28050 800-0 | BOLT; OIL FILTER | 1 | 1602- | A | 00.386 (A) M8X100 FLANGE | ||
| 76 | I0-28050 825-0 | BOLT; OIL FILTER | 2 | 1602- | A | 03 .275 (B) M8X2 5 FLANGE | ||
| 274 | I8-98226 841-0 | GASKET; OIL FILTER | 1 | 1602- | A | |||

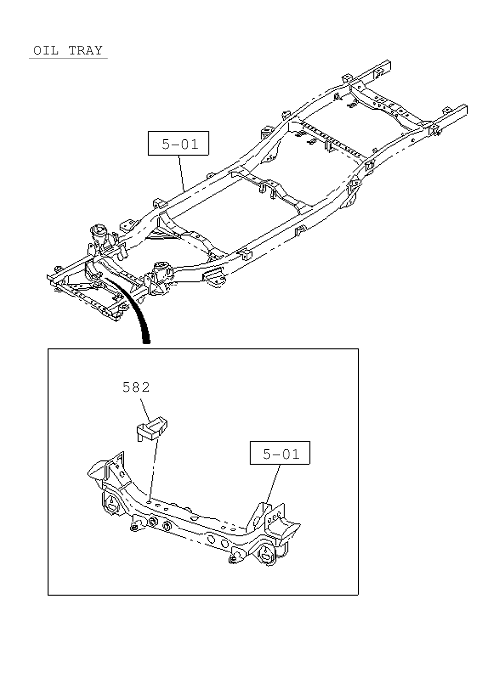

| 582 | I8-98235 616-3 | TRAY; OIL | 1 | 1602- | A | |||
| 362 | I0-91180 208-0 | NUT; OIL FILTER | 2 | 1602- | A | 01.540 M8 FLANGE | ||
| 9 | I9-09566 226-0 | GASKET; CENTER BOLT | 2 | 1602- | A | 01 . 550 ID=2 6.2 | ||
| 105 | I0-41010 820-0 | STUD; OIL COOLER | 2 | 1602- | A | 02 . 510 M8X20 L=3 2 | ||
| 2 | I8-98165 071-0 | ELEMENT; OIL FILTER | 1 | 1602- | A | |||
| 76 | I0-28050 880-0 | BOLT; OIL FILTER | 2 | 1602- | A | 01.252 (C) M8X80 FLANGE |
