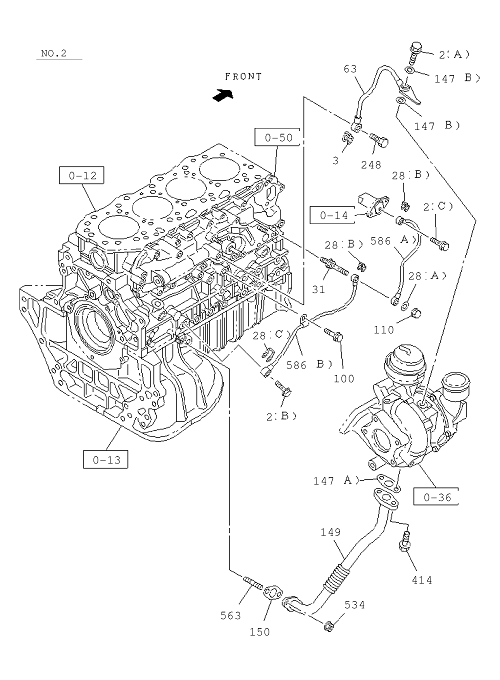

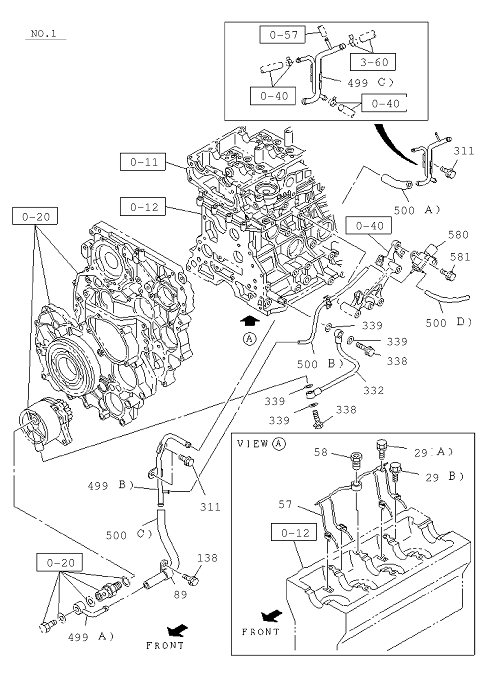

0-52 | OIL AND VACUUM PIPING; ENGNE
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-98136 142-0 | GASKET; EYE BOLT,OIL PIPE | 1 | 1602- | A | ID=10.2 | ||
| 29 | I0-28050 810-0 | BOLT; OIL PIPE,OIL JET | 1 | 1602- | A | 03.407 (A) M8X10 FLANGE | ||
| 2 | I1-09675 086-0 | BOLT; EYE,OIL PIPE | 1 | 1602- | A | 03.162 (C) M14X2 7 FLANGE | ||
| 2 | I8-98151 063-1 | BOLT; EYE,OIL PIPE | 1 | 1602- | A | (A) M10X2 5 FLANGE | ||
| 28 | I9-09571 408-0 | GASKET; OIL PIPE | 1 | 1602- | A | 05.398 (A) ID= 8.2 OD=14.0 T=1.0 | ||
| 2 | I8-98108 689-0 | BOLT; EYE,OIL PIPE | 1 | 1602- | A | (B) M8X23 FLANGE | ||
| 500 | I8-98228 437-0 | HOSE; VACUUM | 1 | 1602- | A | (C) | ||
| 147 | I8-98132 017-0 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 1602- | A | (A) | ||
| 338 | I8-97910 296-1 | BOLT; JOINT,OIL PIPE | 2 | 1602- | A | M8X20 EYE-BOLT | ||
| 500 | I8-98228 430-0 | HOSE; VACUUM | 1 | 1602- | A | (D) | ||
| 332 | I8-98233 768-0 | PIPE; OIL,C/BL TO VAC PUMP | 1 | 1602- | A | |||
| 149 | I8-98156 381-0 | PIPE; OIL RETURN,TURBOCHARGER | 1 | 1602- | A | |||
| 311 | I0-28050 816-0 | BOLT; PIPE FIX | 3 | 1602- | A | 02 . 343 M8X16 FLANGE | ||
| 28 | I8-98113 762-0 | GASKET; OIL PIPE | 1 | 1602- | A | (C) ID=14.2 OD=2 0.0 | ||
| 138 | I0-28050 816-0 | BOLT; CLIP FIX | 1 | 1602- | A | 02 . 343 M8X16 FLANGE | ||
| 150 | I8-98132 018-1 | GASKET; OIL PIPE TO C/BL | 1 | 1602- | A | |||
| 414 | I0-28050 616-0 | BOLT; OIL PIPE | 2 | 1602- | A | 09. 242 M6X16 FLANGE | ||
| 100 | I0-28050 812-0 | BOLT; CLIP | 1 | 1602- | A | 02 . 343 M8X12 FLANGE | ||
| 110 | I8-98251 964-0 | NUT; CAP OIL PIPE | 1 | 1602- | A | M8 CAP NUT FLANGE | ||
| 534 | I0-91180 208-0 | NUT; OIL PIPE | 2 | 1602- | A | 01.540 M8 FLANGE | ||
| 28 | I8-98065 992-0 | GASKET; OIL PIPE | 2 | 1602- | A | 03 . 332 (B) ID= 8.3 OD=15.0 | ||
| 58 | I8-97379 464-0 | VALVE; RELIEF,OIL JET,PISTON COO | 1 | 1602- | A | |||
| 29 | I8-97380 673-1 | BOLT; OIL PIPE,OIL JET | 4 | 1602- | A | (B) M6X2 0 FLANGE | ||
| 500 | I8-98228 438-0 | HOSE; VACUUM | 1 | 1602- | A | (B) | ||
| 586 | I8-98251 165-0 | PIPE; OIL,TENSIONER | 1 | 1602- | A | (A) | ||
| 57 | I8-97312 132-3 | PIPE; OIL,OIL JET | 1 | 1602- | A | |||
| 499 | I8-98228 436-0 | PIPE; VACUUM | 1 | 1602- | A | (B) | ||
| 89 | I0-95235 536-0 | CLIP; VAC HOSE | 1 | 1602- | A | ID=16 L=20 | ||
| 500 | I0-08508 090-0 | HOSE; VACUUM | 1 | 1602- | A | (A) | ||
| 563 | I0-41010 820-0 | STUD; OIL PIPE | 2 | 1602- | A | 02.510 M8X20 L=32 | ||
| 339 | I9-09571 408-0 | GASKET; OIL PIPE | 4 | 1602- | A | 05.398 ID= 8.2 OD=14.0 T=1.0 | ||
| 63 | I8-98132 014-1 | PIPE; OIL,TURBOCHARGER FEED | 1 | 1602- | A | |||
| 581 | I0-28050 816-0 | BOLT; VSV | 1 | 1602- | A | 02 . 343 M8X16 FLANGE | ||
| 580 | I8-97352 145-0 | VALVE; VAC SW | 1 | 1602- | A | 3670 | ||
| 499 | I8-98132 058-2 | PIPE; VACUUM | 1 | 1602- | A | (C) | ||
| 147 | I9-09571 410-0 | GASKET; OIL PIPE TO TURBOCHARGER | 2 | 1602- | A | 08.955 (B) ID=10.2 OD=16.0 | ||
| 499 | I8-98011 527-1 | PIPE; VACUUM | 1 | 1602- | A | (A) | ||
| 586 | I8-98228 274-0 | PIPE; OIL,TENSIONER | 1 | 1602- | A | (B) | ||
| 31 | I8-98186 104-0 | NIPPLE; OIL PIPE | 1 | 1602- | A | |||
| 248 | I8-97944 505-1 | CONNECTOR; TURBOCHARGER OIL FEED | 1 | 1602- | A | 01. 531 M10X24 |
