0-60 | ENGINE ELECTRICAL CONTROL PARTS
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

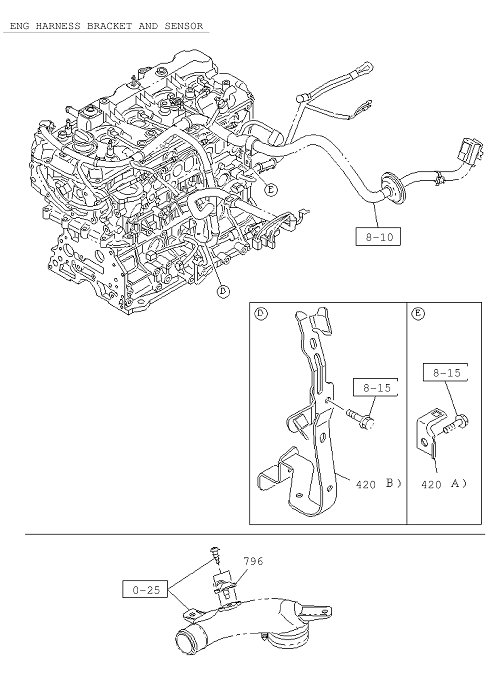

| 420 | I8-98226 846-1 | BRACKET; HARNESS | 1 | 1602- | A | (B) | ||

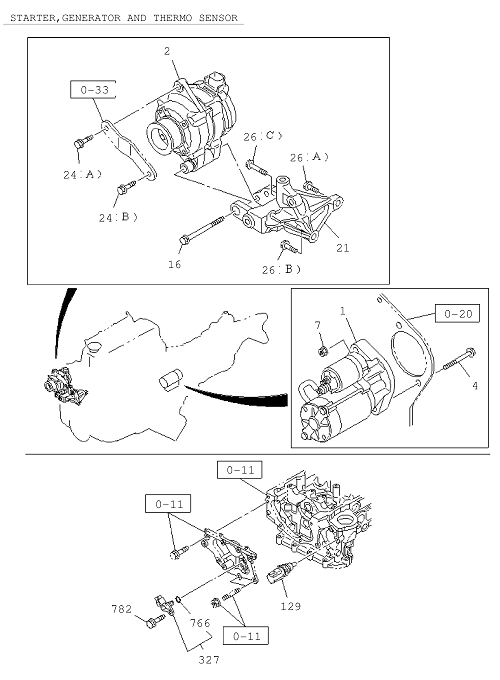

| 2 | I8-98225 157-0 | GENERATOR ASM | 1 | 1602- | A | 12V 120A | ||
| 153 | I8-98043 527-0 | BOLT; BRKT FIX | 1 | 1602- | A | 03 .604 M6X10 FLANGE | ||
| 26 | I0-28051 025-0 | BOLT; GEN BRKT | 1 | 1602- | A | 09 . 171 (A) M10X25 FLANGE | ||

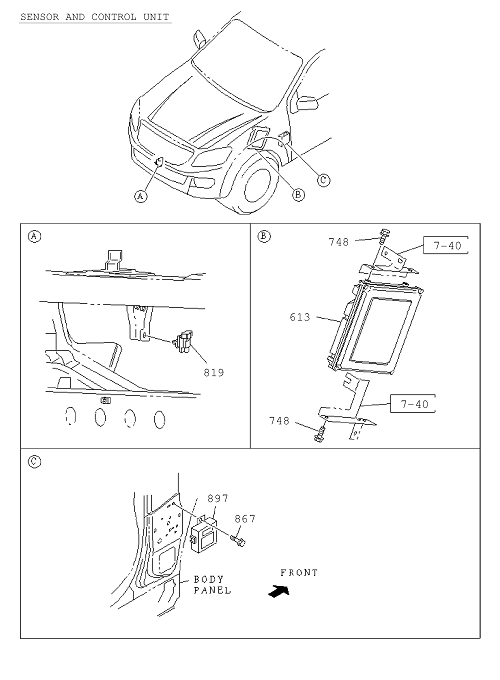

| 613 | I8-98222 966-5 | CONTROL UNIT; ENG | 1 | 1602- | A | M/T MUA 5 SPEED 5H(MWQ) | ||
| 613 | I8-98222 958-5 | CONTROL UNIT; ENG | 1 | 1602- | A | A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START S UTO CRUISE CONT<K3 0 > | ||
| 420 | I8-98179 101-0 | BRACKET; HARNESS | 1 | 1602- | A | (A) | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 4 | 1602- | A | 02 .343 M6X16 FLANGE | ||
| 7 | I0-91180 112-0 | NUT; STARTER | 2 | 1602- | A | M12 FLANGE | ||
| 26 | I0-28051 035-0 | BOLT; GEN BRKT | 1 | 1602- | A | 04 . 510 (B) M10X35 FLANGE | ||
| 21 | I8-98275 351-0 | BRACKET; GEN | 1 | 1602- | A | |||
| 819 | I8-98008 687-0 | SENSOR; MASS AIR FLOW (MAF) | 1 | 1602- | A | 4X2 (UCB***) | ||
| 327 | I8-98019 024-0 | SENSOR; CAMSHAFT POSITION | 1 | 1602- | A | .5027777777778 | ||
| 26 | I0-28051 045-0 | BOLT; GEN BRKT | 1 | 1602- | A | 00.685 (C) M10X45 FLANGE | ||
| 796 | I8-98009 418-0 | SENSOR; MAP | 1 | 1602- | A | |||
| 897 | I8-98221 054-4 | DRM | 1 | 1602- | A | |||
| 4 | I0-28051 260-0 | BOLT; STARTER | 2 | 1602- | A | M12X60 | ||
| 1 | I8-98028 199-0 | STARTER ASM | 1 | 1602- | A | 12V 2.3KW | ||

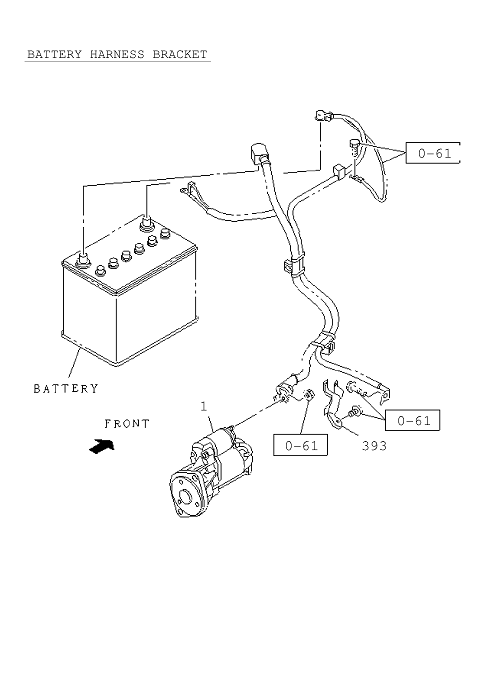

| 393 | I8-98102 992-4 | BRACKET; HARNESS TO BODY | 1 | 1602- | A | |||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | 1602- | A | 00.724 ID=14.2 OD=18.8 | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 1602- | A | 09.242 M6X16 FLANGE | ||
| 16 | I8-98236 407-0 | BOLT; GEN | 1 | 1602- | A | M10X9 5 FLANGE | ||
| 24 | I0-28050 825-0 | BOLT; GEN BRKT | 1 | 1602- | A | 03 .275 (A) M8X2 5 FLANGE | ||
| 613 | I8-98222 957-5 | CONTROL UNIT; ENG | 1 | 1602- | A | A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K3 0 > EXC. PASSIVE ENTRY AND START SY | ||
| 24 | I0-28650 820-0 | BOLT; GEN BRKT | 1 | 1602- | A | 01.531 (B) M8X2 0 FLANGE | ||
| 613 | I8-98260 264-2 | CONTROL UNIT; ENG | 1 | 1602- | A | A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM EXC. AUTO CRUISE CONT<K30> | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 1602- | A | NISHIDA | ||
| 613 | I8-98260 263-2 | CONTROL UNIT; ENG | 1 | 1602- | A | A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM AUTO CRUISE CONT<K3 0 > | ||
| 867 | I0-28650 616-0 | BOLT | 1 | 1602- | A | 02 .343 M6X16 FLANGE |
